BCM5719, 1Gbps, 4xRJ45, PCIe Network Adapter

Quantity:
  • SKU: 8946757
  • Manufacturer: HPE
  • MPN: 629135-B22
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$310.23
Quantity:
BCM5719, 1Gbps, 4xRJ45, PCIe Network Adapter

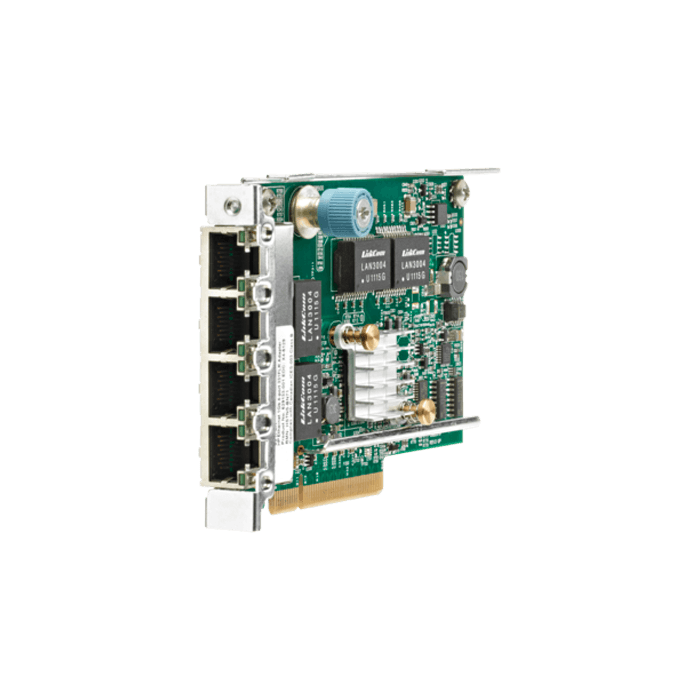

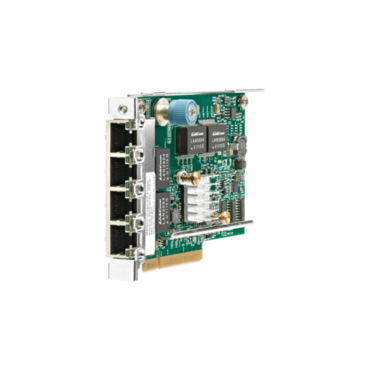

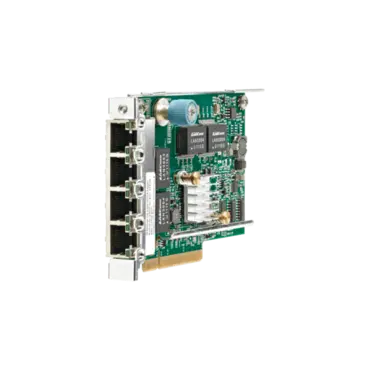

The HPE Ethernet 1Gb 4-port 331FLR Adapter for select HPE ProLiant servers features the next generation of Ethernet integration, offering a single-chip solution in a FlexibleLOM form factor, which offers the option for future upgrades to 10GbE networking speeds. It delivers full line-rate performance across all ports with low power consumption. The HPE 331FLR is ideal for virtualization, security, server consolidation, network segmentation, and other applications requiring maximum throughput and port density. The total aggregate throughput of 4 Gb meets the needs of customers desiring high bandwidth. The HPE 331FLR supports advanced features such as Large Send and Receive offload capability, TCP checksum and segmentation, VLAN tagging, MSI-X, jumbo frames, IEEE 1588, HPE Sea of Sensors 3D and virtualization features such as VMware NetQueue and Microsoft VMQ.

  • Designed for Maximum Throughput and High Port Density
  • Replaceable FLexibleLOM enables easy upgrade from 1GbE to 10GbE.
  • An aggregate, full duplex transfer rate of 8 Gb/s per adapter delivers outstanding network performance that improves response time and removes bottlenecks.
  • Comprehensive stateless offloads optimize host efficiency and VM density by leaving host CPU available for other duties.
  • Virtualization support for VMware NetQueue and Microsoft VMQ help meet the performance demands of consolidated virtual workloads.
Interfaces/Ports
Host Interface: PCI Express 2.0 x4
Total Number of Ports: 4
Number of Network (RJ-45) Ports: 4
Media & Performance
Media Type Supported: Twisted Pair
Network & Communication
Network Technology: 10/100/1000Base-T
Physical Characteristics
Form Factor: Plug-in Card
Height: 4.6"
Width: 3"
Miscellaneous
Package Contents:
  • Ethernet 1Gb 4-port 331FLR Adapter
  • Quick Install Card
  • Product Warranty Statement
Device Supported: Server
Green Compliant: Yes
Green Compliance Certificate/Authority: REACH, RoHS-6, WEEE
