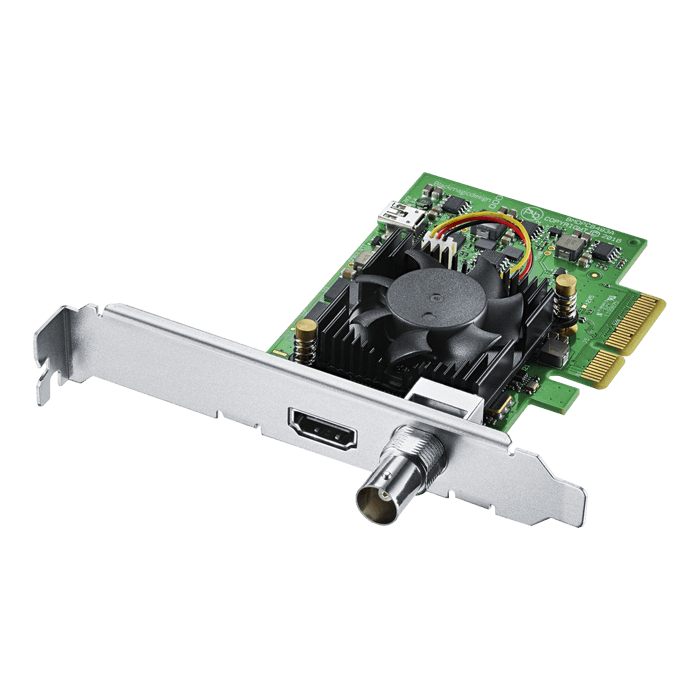

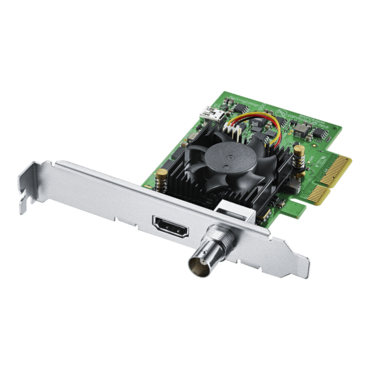

DeckLink Mini Recorder 4K, 2160p 30Hz Passthrough / 2160p 30Hz Capture, PCIe Capture Card
Quantity:
- SKU: 14782851
- Manufacturer: Blackmagic Design
- MPN: BDLKMINIREC4K
- Availability: CONTACT US
Starting At
$240.53
| Video I/O |
Input 1x BNC (6G-SDI) Female 1x HDMI 2.0a Female |
| Format Support | |
| Video Resolution |
BNC Input (8/10-Bit 4:2:2 YUV) 4096 x 2160 at 23.98/24/25 fps 3840 x 2160 at 23.98/24/25/29.97/30 fps 2048 x 1080p at 23.98/24/25 fps 2048 x 1080PsF at 23.98/24/25 fps BNC Input (8/10/12-Bit 4:4:4 RGB) 1920 x 1080p at 23.98/24/25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1920 x 1080PsF at 23.98/24/25/29.97/30 fps 1280 x 720 at 50/59.94/60 fps 720 x 576i at 50 fps 720 x 480i at 59.94 fps HDMI Input (8/10/12-Bit 4:4:4/4:2:2/4:2:0) 4096 x 2160 3840 x 2160 1920 x 1080p 1920 x 1080PsF 1920 x 1080i 1280 x 720 720 x 576i |
| Audio Format | Unspecified Digital Signal Input: 48 kHz / 24-Bit |
| Embedded Audio |
SDI: 16-Channel HDMI: 8-Channel |
| Standards | |
| Video Standard Compliance |
SMPTE: 259M/292M/372M/425M/ST-2081 ITU-R: BT.601/BT.656 |
| HDR Support | Yes, Hybrid Log Gamma |
| Broadcast System Compatibility | NTSC, PAL |
| OS Compatibility |
Windows 7 or Later macOS 10.14 or Later Linux |
| Power | |
| Power Consumption | 8 W |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Operating Humidity | 0 to 90% |
| General | |
| Dimensions | 4.7" / 11.94 cm |
| Weight | 3.17 oz / 90 g |
| Packaging Info | |
| Package Weight | 0.4 lb |
| Box Dimensions (LxWxH) | 5.4 x 5.3 x 1.2" |
