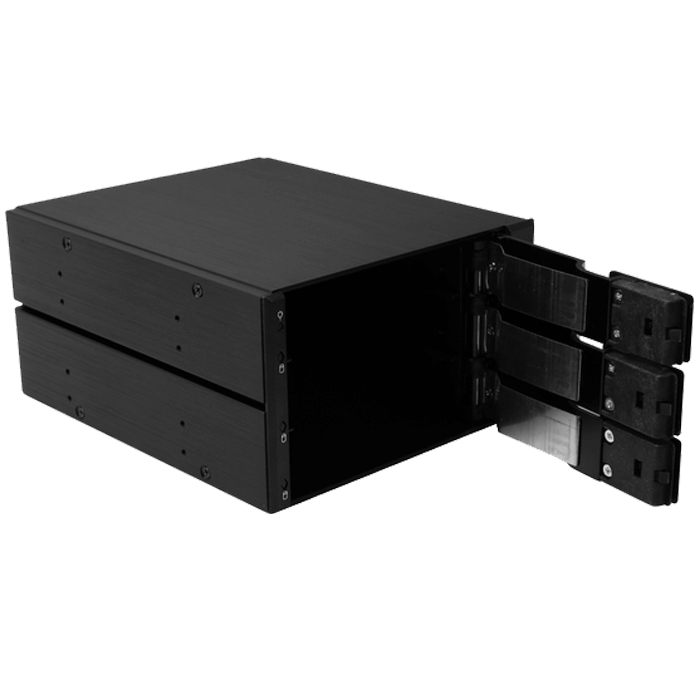

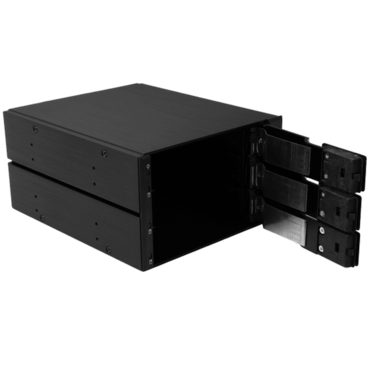

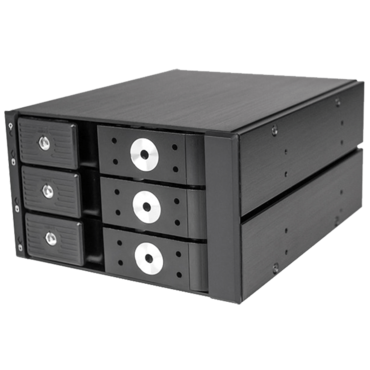

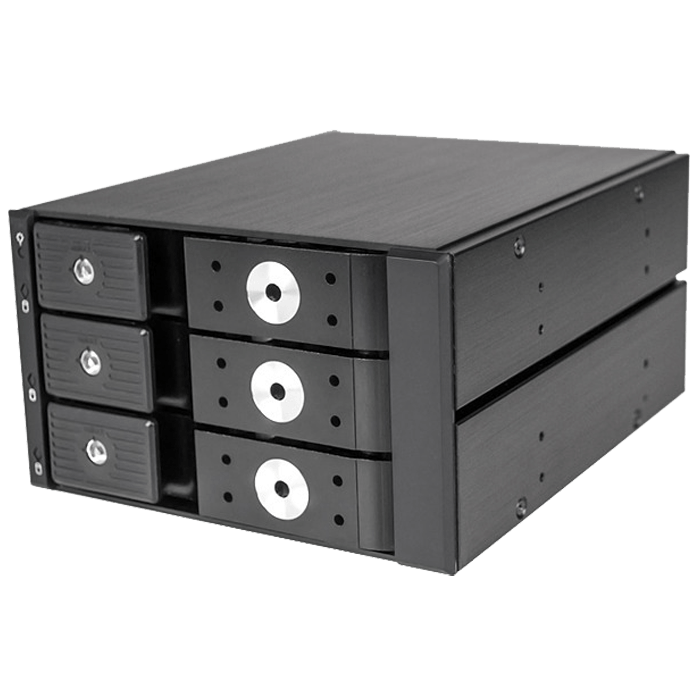

BP-TLA2131SAC, 2x 5.25" to 3x 3.5", SAS/SATA 6Gb/s, HDD, Black Hot Swap Module
BP-TLA2131SAC is a 2 x 5.25” backplane module that is designed to store and protect 3 x 3.5” HDD. It is also compatible with both SATA and SAS interfaces which support up to 6Gb/s transfer rate. In order to meet any application needs, the compact design of the storage allows extra storage. Its hot-swap capability also imposes needs to ensure viability of the component, which is subjected to live insertion and removal. In addition, the body made of aluminum material protects and disperses heat to storage units. Moreover, a 70mm cooling fan maintains the temperature by providing accesses for the air to control the heat on internal storage units. Furthermore, the LED lights as built-in feature of the module indicate the hard drives statuses continuously.
BP-TLA2131SAC is a 2 x 5.25” backplane module that is designed to store and protect 3 x 3.5” HDD. It is also compatible with both SATA and SAS interfaces which support up to 6Gb/s transfer rate. In order to meet any application needs, the compact design of the storage allows extra storage. Its hot-swap capability also imposes needs to ensure viability of the component, which is subjected to live insertion and removal. In addition, the body made of aluminum material protects and disperses heat to storage units. Moreover, a 70mm cooling fan maintains the temperature by providing accesses for the air to control the heat on internal storage units. Furthermore, the LED lights as built-in feature of the module indicate the hard drives statuses continuously.
- Product Category: Internal
- Product Sub Category: SATA/SAS Interface
- Form Factor: 2 x 5.25"
- Interface: SATA/SAS Interface
- Plug and Play: Plug and Play
- Trayless Design: Trayless Design
Model | BP-TLA2131SAC |
---|---|
Product Category | Internal |
Product Sub Category | SATA/SAS Interface |
Form Factor | 2 x 5.25" |
Interface | SATA/SAS Interface |
Plug and Play | Plug and Play |
Trayless Design | Trayless Design |
Supported HDD Size | Up to 3 x 3.5" HDD |
Hot-Swappable | Hot-Swappable |
Cage Color | Black |
Cooling Fan | 70mm |
Material | Aluminum Body & Front Bezel |
Power Connector | SATA 15 Pin x 2 |
HDD Connection | SATA 7 Pin Data x 3 |
Transfer Rate | Up to 6Gb/s (SATA III/ SAS II) |
RoHS Ready | RoHS Ready |
Door & Lock | Metal triangle key lock on each HDD carrier |
Dimension | 5.7" x 3.3" x 7.8" (W x H x D) |
Warranty | 1 Year Manufacture Limited Warranty |
