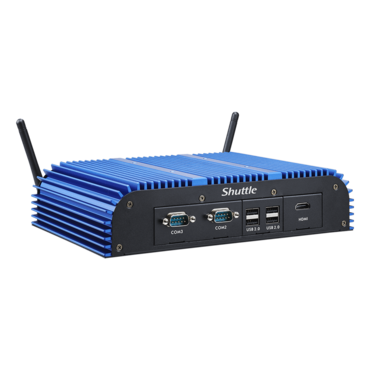

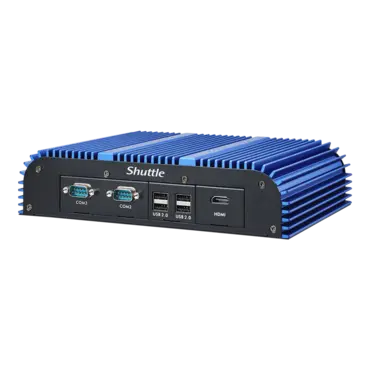

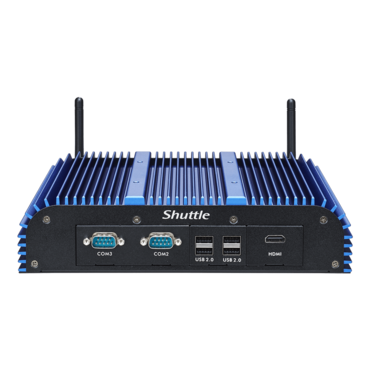

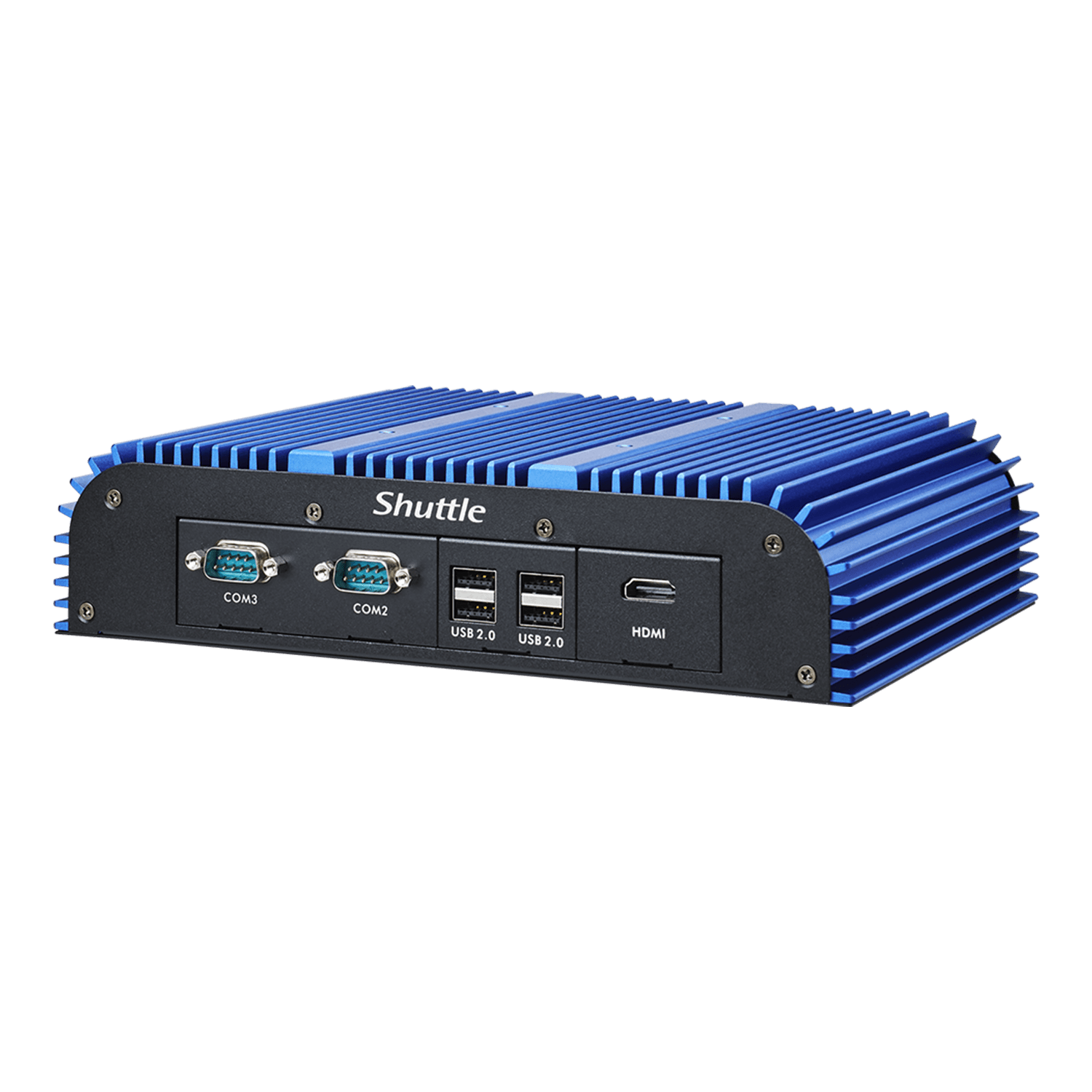

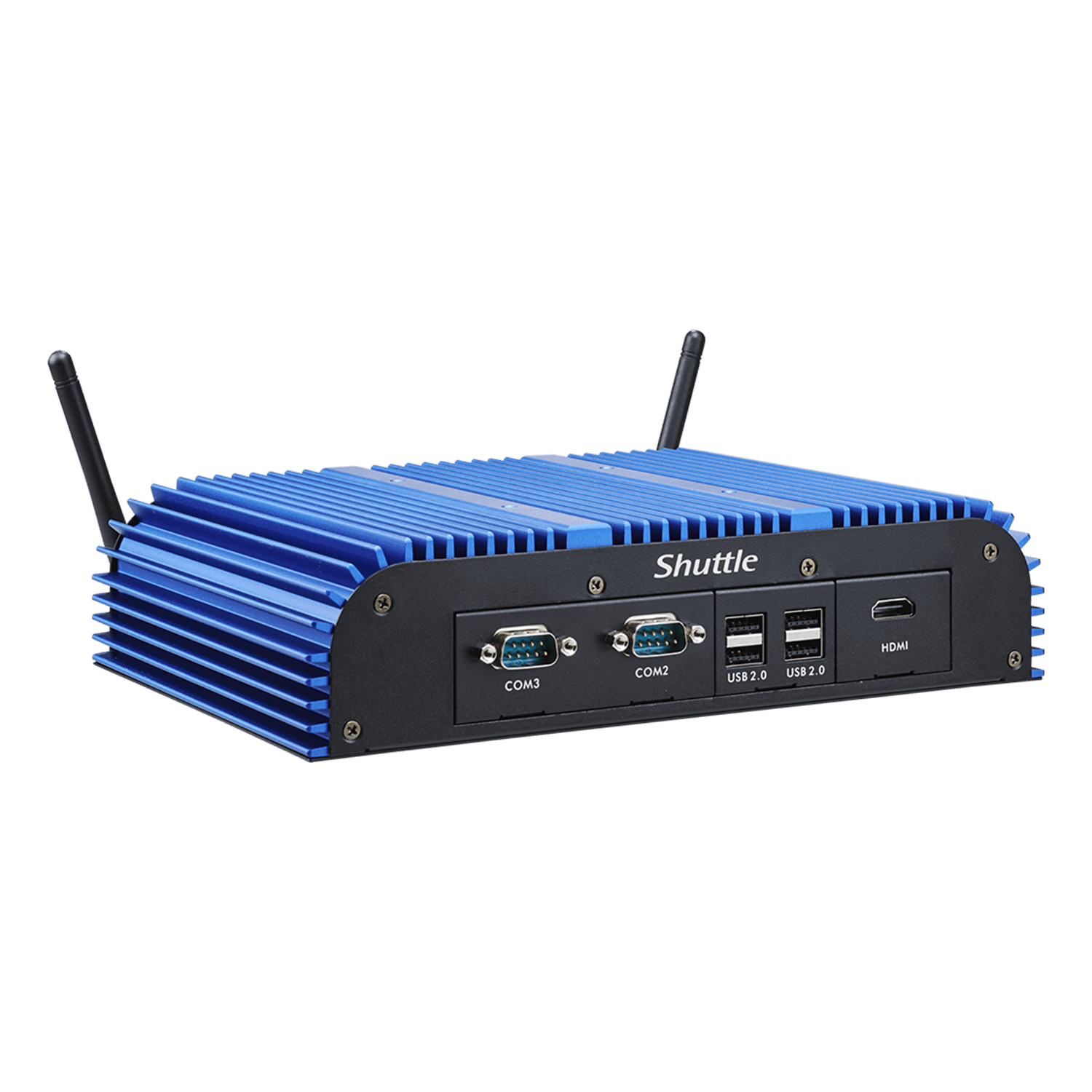

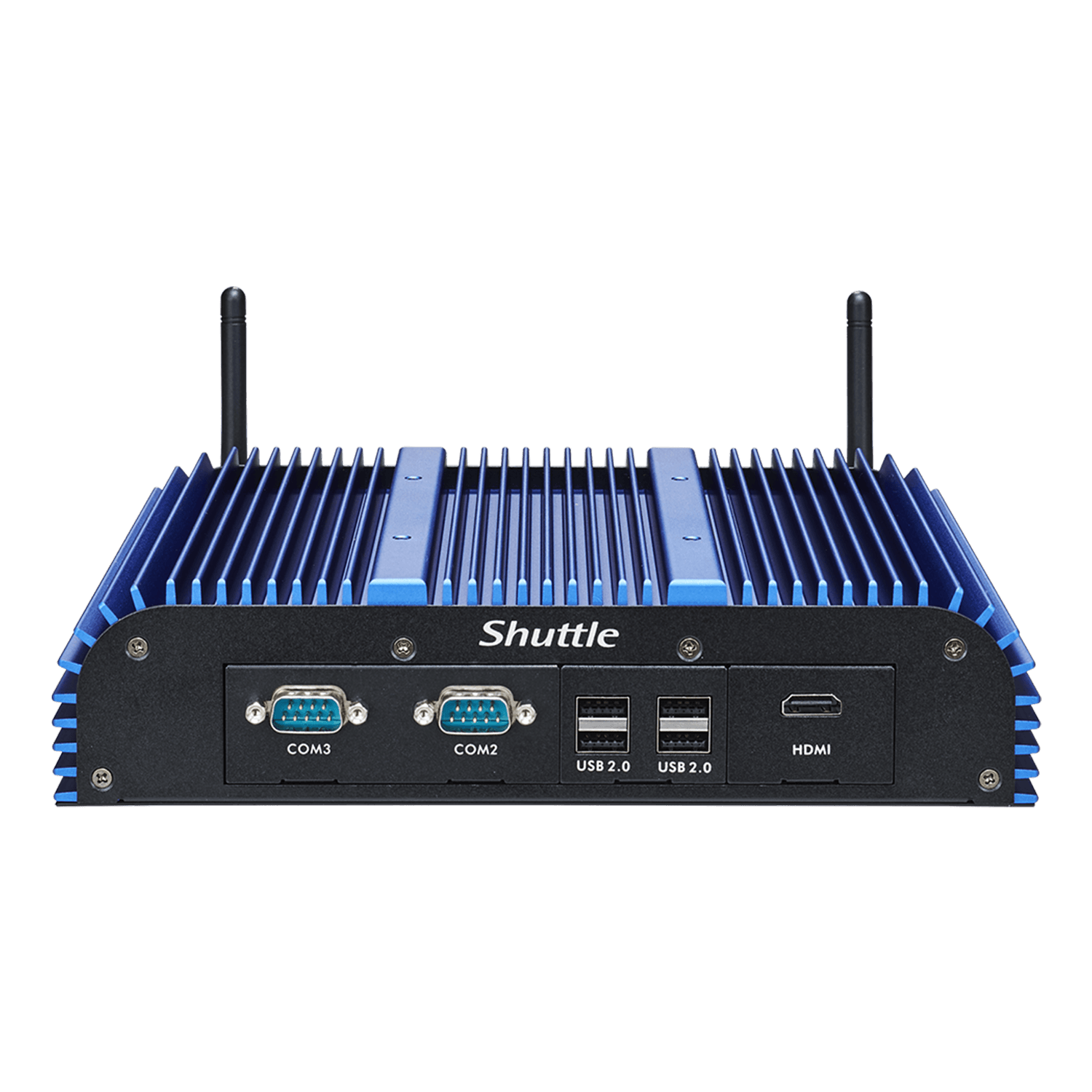

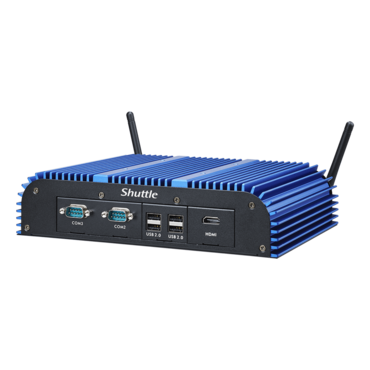

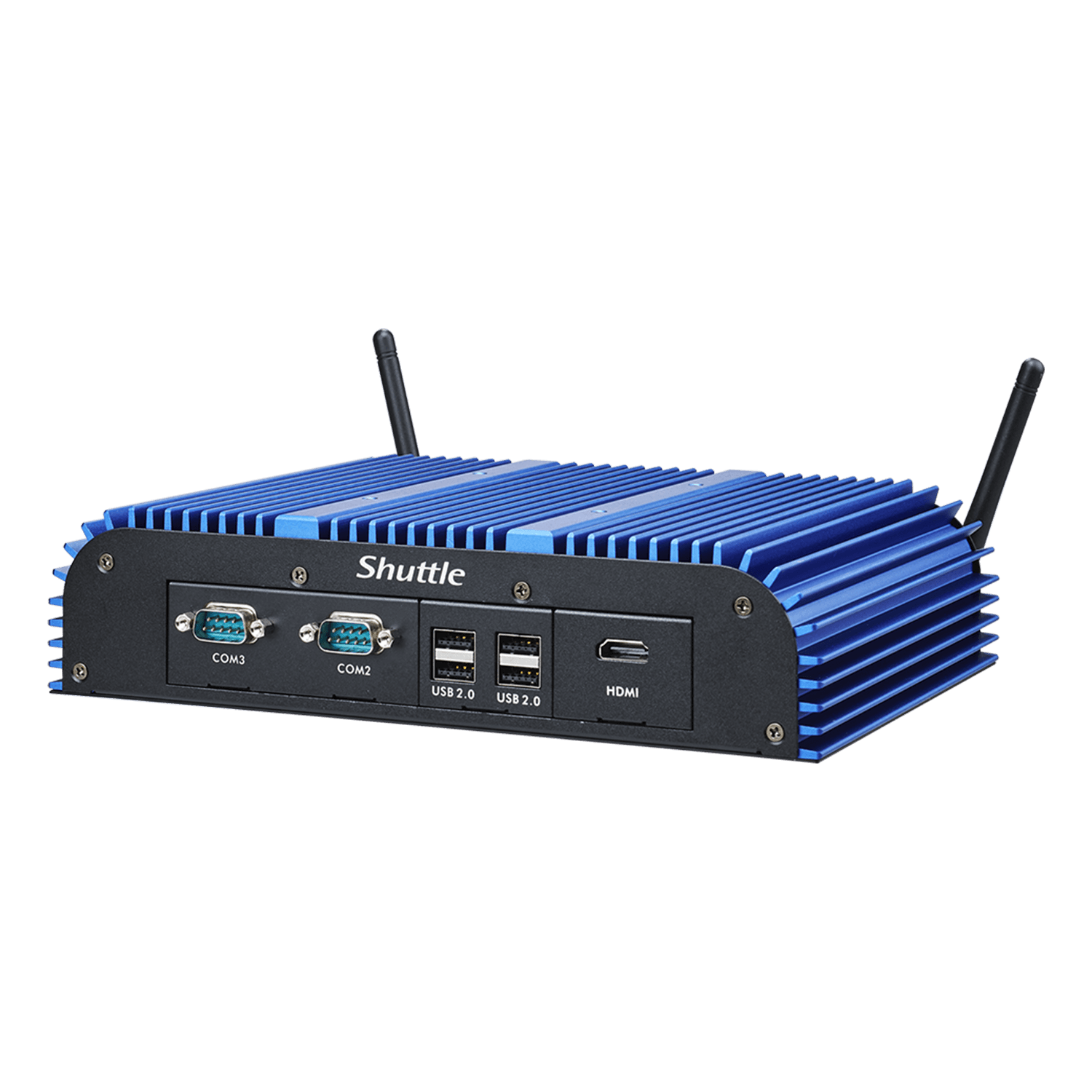

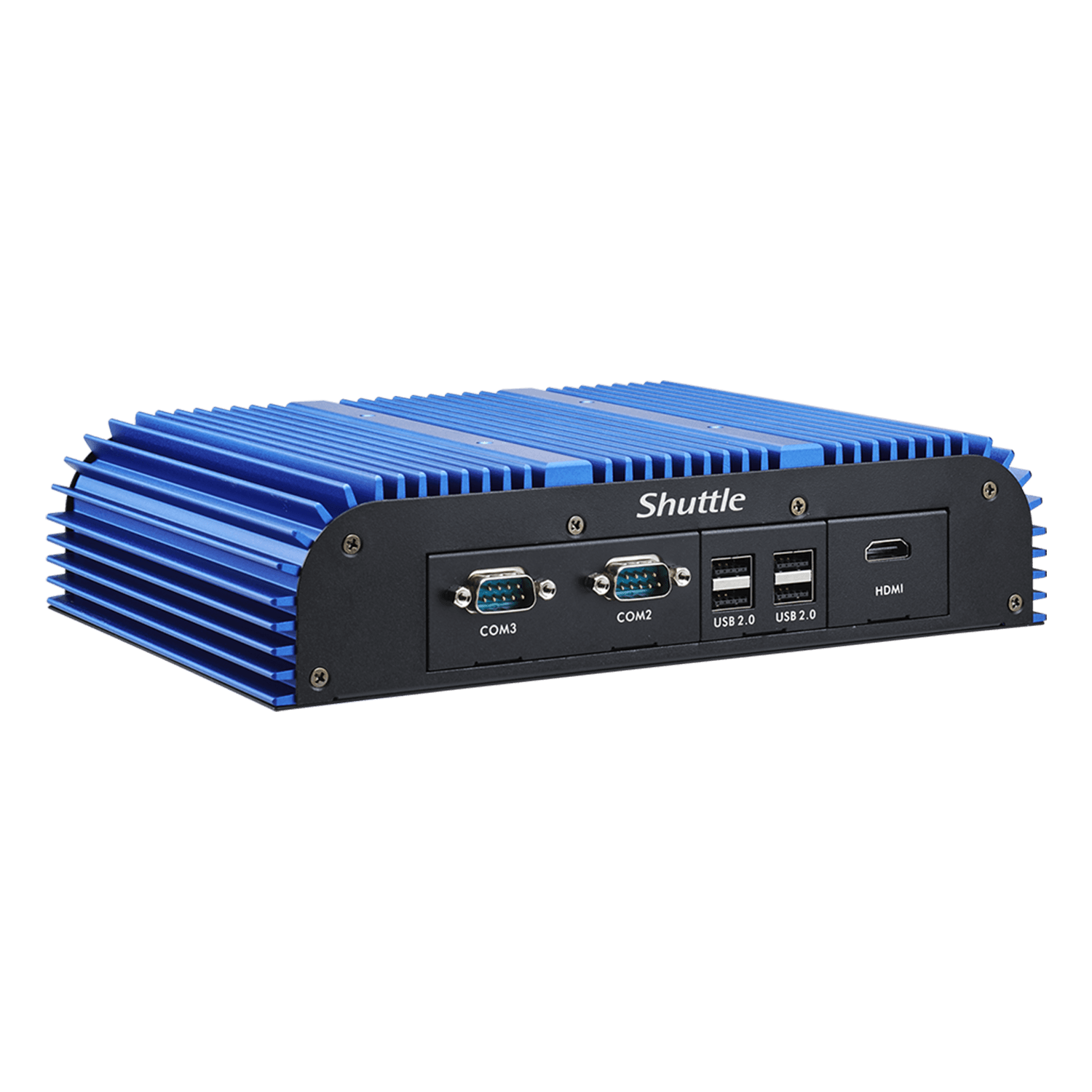

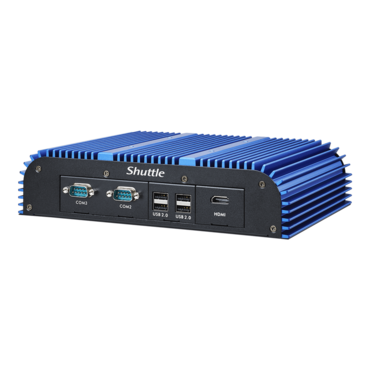

BPCAL03 Industrial Fanless BoxPC, TAA Compliant, Intel® Core™ i3-1215UE, 2x DDR5 SO-DIMM, M.2, VESA mount
- SKU: 19935967
- Manufacturer: SHUTTLE
- MPN: BPCAL03UE3
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$1,015.99
| PROCESSOR | Intel® Core™ i3-1215UE, Dual Core |
|---|---|
| MEMORY | 2 x 262 pin DDR5 SODIMM 4800 MHz slots Supports dual channel up to 64GB (32GB x 2) |
| VIDEO GRAPHICS | Intel UHD graphics |
| DISPLAY |
Supports up to three independent displays: 1) HDMI 2.0b on back panel 2) optional HDMI 1.4, DisplayPort 1.2 or DVI-I (DDI interface) 3) optional DisplayPort 1.2 or D-sub/VGA (eDP interface, limitations: no audio or PnP support) |
| AUDIO | Realtek ALC888s-VD 2-channel |
| NETWORK |
2 x Intel® 2.5G LAN Intel 802.11 a/b/g/n/ac + Bluetooth 5.0 (optional) Realtek 802.11 a/b/g/n/ac + Bluetooth 4.2 (optional) |
| TPM MODULE | Hardware Trusted Platform Module (Infineon SLB9670VQ2 TPM 2.0) |
| STORAGE INTERFACE | M.2 2280 M key x 1 (PCI-E NVMe / SATA) |

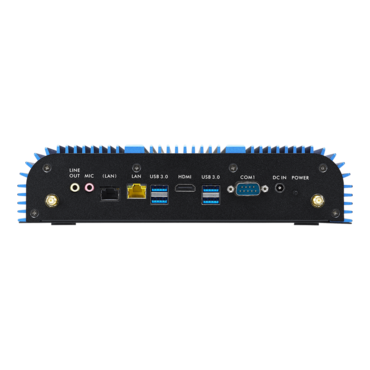

| PORTS |

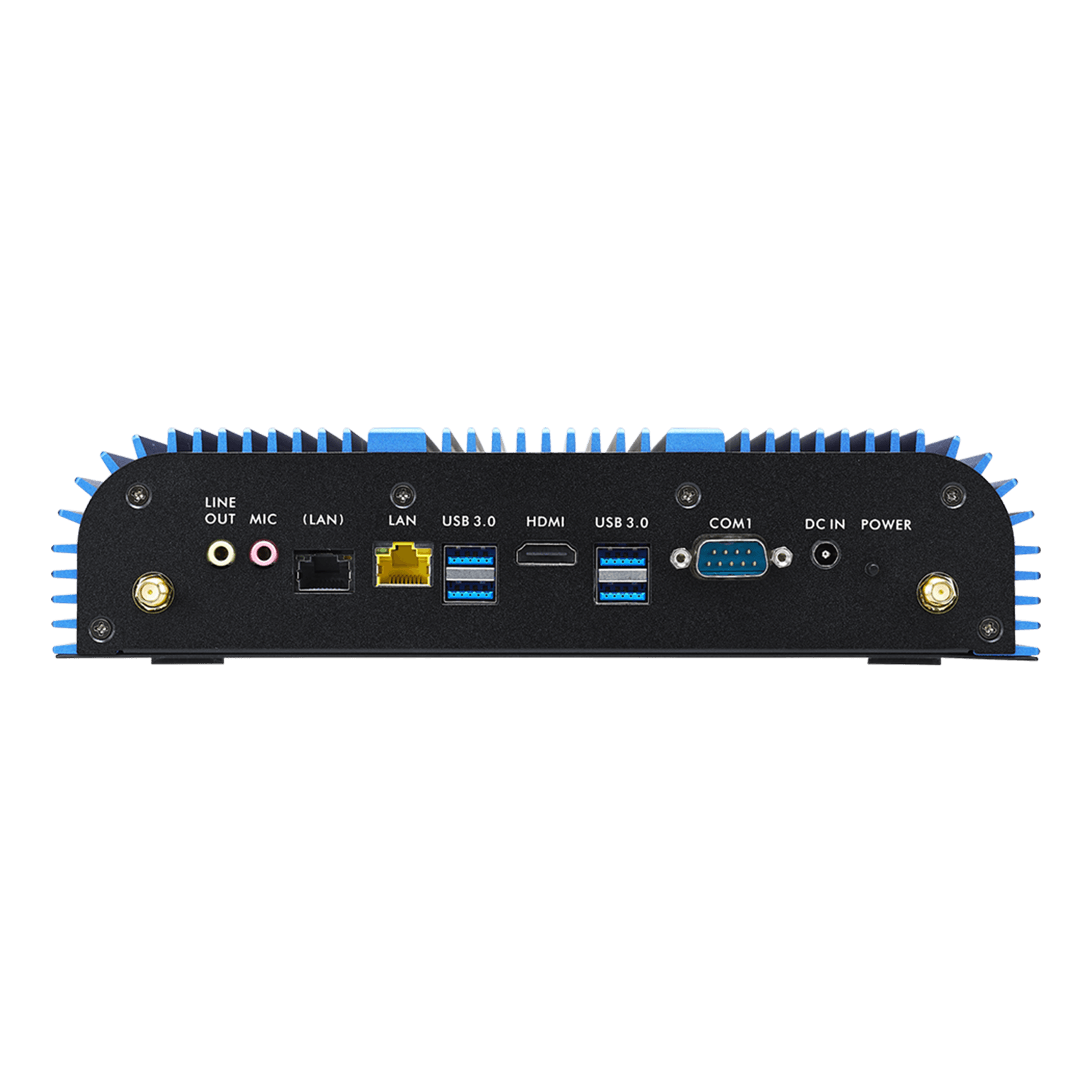

(2) RS232/RS422/RS485** (DB-9) (1) RS232 (DB-9) (1) HDMI 1.4 / HDMI 2.0B (Back Panel) (4) USB 3.2 Gen 2 (Type A) (2) 2.5 Gbps LAN (RJ45, i211/i219LM) (1) Audio line-out (1) MIC-in (4) USB 2.0 |
| IP RATING | IP30 compliant |
| OPERATING TEMPERATURE | -20°C - 60°C |
| STORAGE TEMPERATURE | -20°C - 60°C |
| RELATIVE HUMIDITY | 20% - 80% RH (non-condensing) |
| MOUNTING |
VESA mount 75 x 75 mm Ear mount 256 x 100 mm*** DIN rail (standard 35 mm) |
| POWER |
150W 19V/7.89A external adapter 9 - 36V support for DC input range is optional |
| DIMENSIONS | 6.6 (L) x 9.6 (W) x 2.2 (H) inches |
| EMC | CE, FCC Class A, VCCI, RCM, BSMI**** |
| SAFETY CERTIFICATION | CB, cTUVus, BSMI**** |
| OTHER CERTIFICATIONS | RoHS, ErP, CEC |
| OS SUPPORT | Windows 10 / 11 IoT 64bit, Linux 64 bit |
*vPro only with i5/i7 options
**RS232 supports ring in 5V power (standard) / 12V power (specific optional board)
***Four M3x6L screws required to be screwed into chassis for this mounting
****BSMI only for operating temperature of 0 - 40°C
VESA bracket, Ear-Mount, and DIN-Rail clip are not
included
