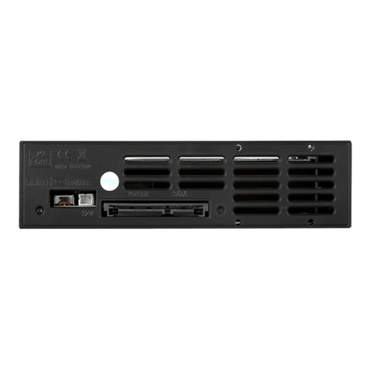

BPN-DE110HD-SILVER Trayless 5.25" to 3.5" 12Gb/s HDD Hot-swap Rack
- SKU: 12840262
- Manufacturer: ISTARUSA
- MPN: BPN-DE110HD-SILVER
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$41.40
BPN-DE110HD-SILVER Trayless 5.25" to 3.5" 12Gb/s HDD Hot-swap Rack
BPN-DE110HD-SILVER is iStarUSA's third generation tray-less hot-swap hard drive cage. It features the latest transfer rate technology of 12Gb/s and is 14TB compatible. The LED Display lights features the new blue light by popular demand. Heat dissipation is enhanced by aluminum construction and optional 40mm fan. SATA power connector increases compatibility with most power supplies. The metal key locks help secure your hard drives and prevent unauthorized access.
BPN-DE110HD-SILVER is iStarUSA's third generation tray-less hot-swap hard drive cage. It features the latest transfer rate technology of 12Gb/s and is 14TB compatible. The LED Display lights features the new blue light by popular demand. Heat dissipation is enhanced by aluminum construction and optional 40mm fan. SATA power connector increases compatibility with most power supplies. The metal key locks help secure your hard drives and prevent unauthorized access.
BPN-DE110HD-SILVER Trayless 5.25" to 3.5" 12Gb/s HDD Hot-swap Rack
- Aluminum Frame, light weight and durability design
- Supports SAS I/II/III and SATA I/II/III Hard Drives
- High Performance Transfer Rate up to 12Gb/s
- Integrative shaping aluminum design for quickest heat sink
- Aluminum front bezel with metal key lock mechanism for security
- Multi-functional LED Indication
- 14TB Hard Drives Compatible
- Tray-less and screw-less HDD mounting
| Model Number | BPN-DE110HD-SILVER |
| RoHS Compliance Version | Yes |
| Standard Drive Bays | Hotswap 3.5": 1
5.25" Drives: 1 |
| Hotswap HDD Type: | 3.5" SAS I/II/III & SATA I/II/III |
| Indicators | Blue for Power on/ Purple for HDD Access |
| Security | Key Lock |
| Material of Front Bezel | Aluminum |
| Material of Handle | Aluminum |
| Material of Main Chassis | Aluminum |
| Color of Front Bezel | Silver |
| Color of Main Chassis | Black |
| Optional Fan: | 40mm |
| Ordering Information
(Part Number) |
Silver Handle:BPN-DE110HD-SILVER |
| Dimensions (WxHxD) | 5.75" x 1.65" x 7.10"
146.0 mm x 41.9 mm x 180.3 mm |
