BPN-DE110SS Back/Red SAS/SATA 6 Gb/s Hot Swap Module, 1x 3.5-in HDD, 1x 5.25-in Bay, Aluminum
BPN-DE110SS is iStarUSA's third generation tray-less hot-swap hard drive cage. It features the latest transfer rate technology of 6.0 Gb/s (SATA I/II/III and SAS I/II), and is 3TB compatible. The LED Display lights features the new blue light by popular demand. Heat dissipation is enhanced by aluminum construction and optional 40mm fan.

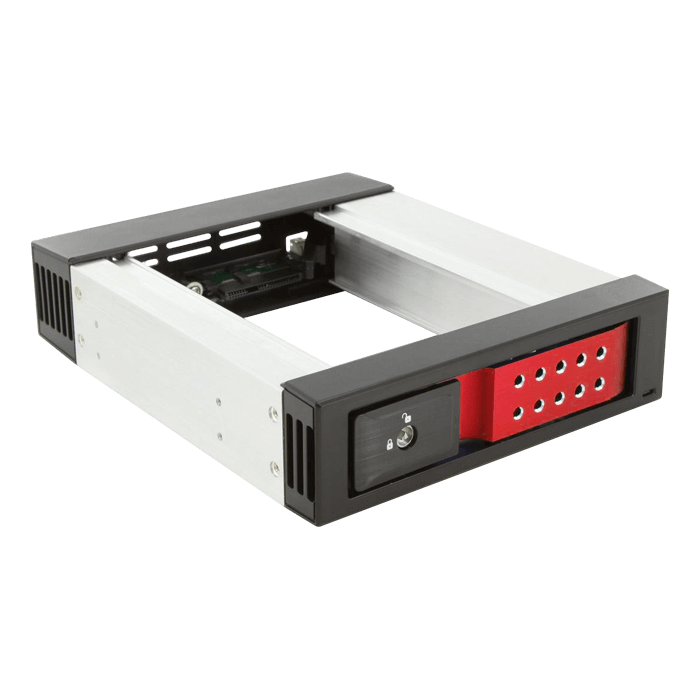

BPN-DE110SS 1x5.25" to 1x3.5" SATA/SAS 6.0 Gb/s Trayless Hot-Swap Cage
Features:
- Aluminum Frame, light weight and durability design
- Support SAS I/II, SATA I/II/III Hard Drives
- Data Transfer Rate up to 6.0 Gb/s
- Integrative shaping aluminum design for quickest heat sink
- Aluminum front bezel with metal key lock mechanism for security
- Multi-functional LED Indication
- 3TB Hard Drives Compatible
- Tray-less and screw-less HDD mounting
Overview:
BPN-DE110SS is iStarUSA's third generation tray-less hot-swap hard drive cage. It features the latest transfer rate technology of 6.0 Gb/s (SATA I/II/III and SAS I/II), and is 3TB compatible. The LED Display lights features the new blue light by popular demand. Heat dissipation is enhanced by aluminum construction and optional 40mm fan. SATA power connector increases compatibility with most power supplies. The metal key locks help secure your hard drives and prevent unauthorized access.
Specifications:
Model Number |
BPN-DE110SS |
RoHS Compliance Version |
Yes |
Standard Drive Bays |
5.25" Drives: 1
Hotswap 3.5: 1 |
Hotswap HDD Type: |
3.5" SAS I/II & SATA I/II/III |
Indicators |
Blue for Power on/ Purple for HDD Access |
Security |
Key Lock |
Material of Front Bezel |
Aluminum |
Material of Handle |
Aluminum |
Material of Main Chassis |
Aluminum |
Color of Front Bezel |
Black/ Blue/ Red/ Silver |
Color of Main Chassis |
Black |
Optional Cooling Fan |
40mm |
Ordering Information
(Part Number) |
Black Handle:BPN-DE110SS-BLACK
Blue Handle:BPN-DE110SS-BLUE
Red Handle:BPN-DE110SS-RED
Silver Handle:BPN-DE110SS-SILVER |
Dimensions (WxHxD) |
5.71" x 1.65" x 7.10"
146.1 mm x 41.1 mm x 180.3 mm |
|
