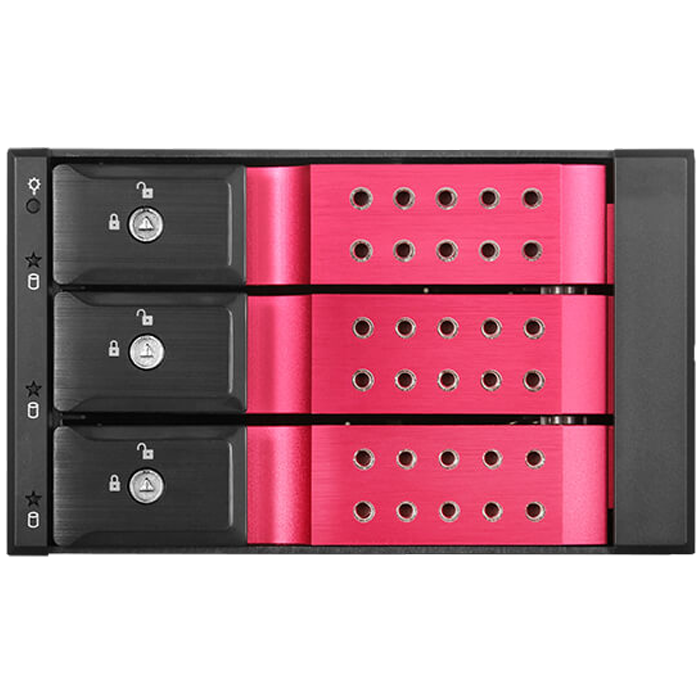

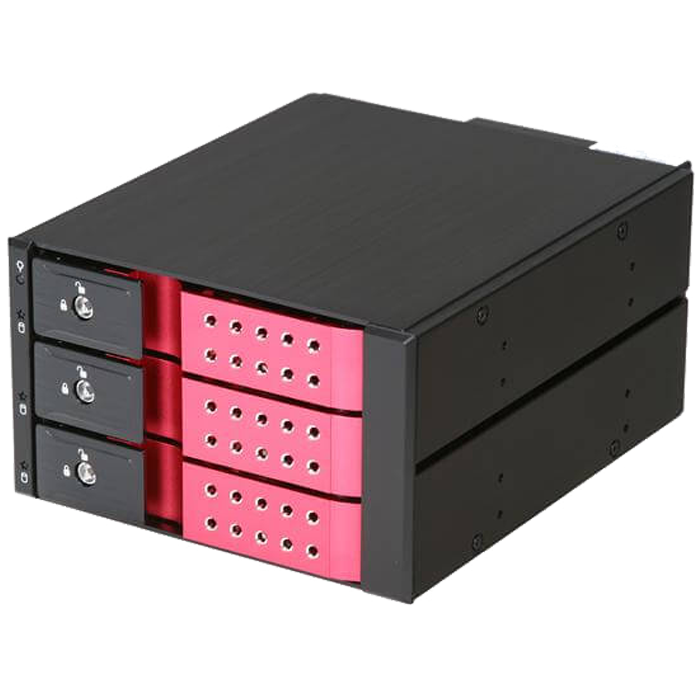

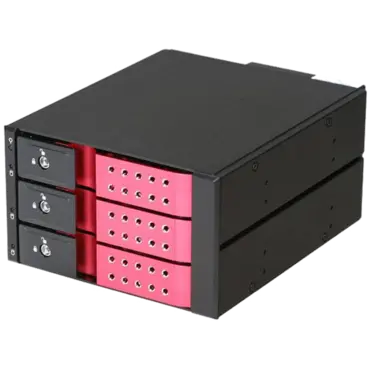

BPN-DE230SS, 2x 5.25" to 3x 3.5", SAS/SATA 6Gb/s, HDD, Red Hot Swap Module
Quantity:
- SKU: 4708927
- Manufacturer: ISTARUSA
- MPN: BPN-DE230SS-RED
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$79.34
- Aluminum Frame, designed for heavy-duty purpose
- Support SAS I/II, SATA I/II/III Hard Drives
- Data Transfer Rate up to 6.0 Gb/s
- Integrative shaping aluminum design for quickest heat sink
- Aluminum front bezel with metal key lock mechanism for double safety

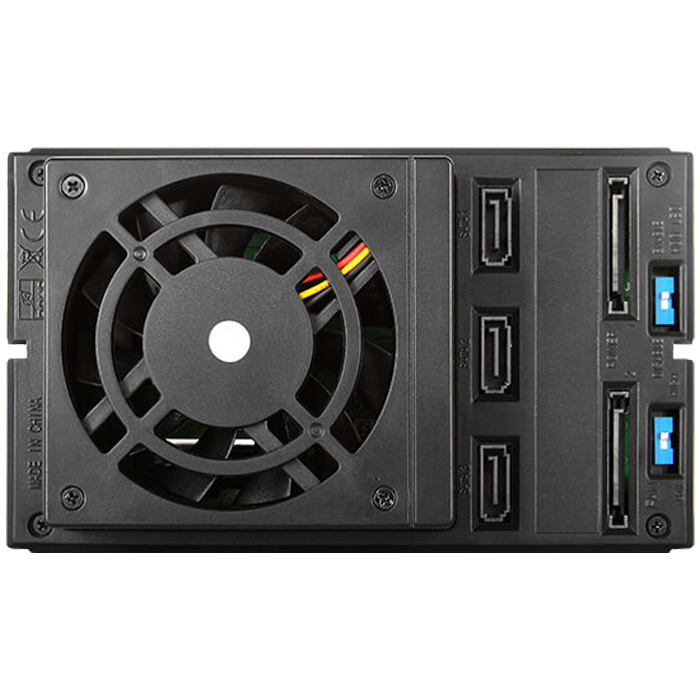

- Removable fan cover for easy maintenance
- Multi-functional LED Indication
- Support Hot-Swap & RAID Configuration (need an additional RAID controller)
- Low-noise Design with Fan-speed Control
- 6TB Hard Drives Compatible
| Model Number | BPN-DE230SS |
| RoHS Compliance Version | Yes |
| Standard Drive Bays | Hotswap 3.5": 3 5.25" Drives: 2 |
| Hotswap HDD Type: | 3.5" SAS I/II & SATA I/II/III |
| Indicators | Blue for Power on/ Purple for HDD Access |
| Security | Key Lock |
| Material of Front Bezel | Aluminum |
| Material of Handle | Aluminum |
| Material of Main Chassis | Aluminum |
| Color of Front Bezel | Black/ Blue/ Red/ Silver |
| Color of Main Chassis | Black |
| Cooling Fan | 1x70mm |
| Ordering Information (Part Number) |
Black Handle:BPN-DE230SS-BLACK Blue Handle:BPN-DE230SS-BLUE Red Handle:BPN-DE230SS-RED Silver Handle:BPN-DE230SS-SILVER |
| Dimensions (WxHxD) | 5.71" x 3.35" x 7.64" 145.0 mm x 85.1 mm x 194.1 mm |
