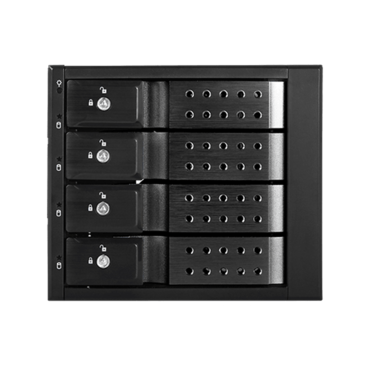

BPN-DE340MS, Black Handle, Trayless 3x 5.25" to 4x 3.5", 12Gb/s HDD/SSD SFF-8643, Hot-swap Rack

  • SKU: 12666368
  • Manufacturer: ISTARUSA
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
BPN-DE340MS, Black Handle, Trayless 3x 5.25" to 4x 3.5", 12Gb/s HDD/SSD SFF-8643, Hot-swap Rack
BPN-DE340MS-BLACK capable. It also comes with adjustable fans speed and ultra-quiet cooling fans. The LED Display lights features the new blue light by popular demand. Heat dissipation is enhanced by the full aluminum construction and a 80mm fan. SATA power connector increases compatibility with most power supplies. The metal key locks help secure your hard drives and prevent unauthorized access. Converting three standard 5.25" drive bays into four usable hard drive slots, it is economically designed to maximize your investment.

BPN-DE340MS Trayless 3x 5.25" to 4x 3.5" 12Gb/s HDD SSD SFF-8643 Hot-swap Rack

  • Aluminum Frame, designed for heavy-duty purpose
  • Support SAS I/II/III and SATA I/II/III Hard Drives
  • Integrative shaping aluminum design for quickest heat sink
  • 12Gb/s HD miniSAS Backplane (SFF-8643)
  • Aluminum front bezel with metal key lock mechanism for double safety

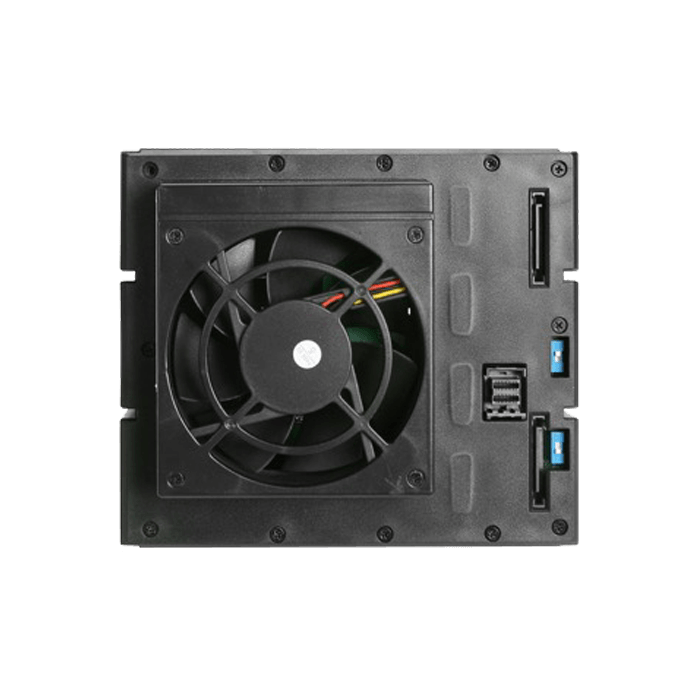

  • Removable fan cover for easy maintenance
  • Multi-functional LED Indication
  • Support Hot-Swap & RAID Configuration (need an additional RAID controller)
  • 14TB Hard Drives Compatible
Model Number BPN-DE340MS
RoHS Compliance Yes
Standard Drive Bays Hotswap 3.5": 4
5.25" Drives: 3
Hotswap HDD Type: 3.5" SAS I/II/III & SATA I/II/III
Indicators Blue for Power on/ Purple for HDD Access
Security Key Lock
Material of Front Bezel Aluminum
Material of Handle Aluminum
Material of Main Chassis Aluminum
Color of Front Bezel Black/ Blue/ Red/ Silver
Color of Main Chassis Black
Cooling Fan 1x80mm
Ordering Information
(Part Number)
Black Handle:BPN-DE340MS-BLACK
Blue Handle:BPN-DE340MS-BLUE
Red Handle:BPN-DE340MS-RED
Silver Handle:BPN-DE340MS-SILVER
Dimensions (WxHxD) 5.71" x 4.92" x 7.79"
145.0 mm x 125.0 mm x 197.9 mm
