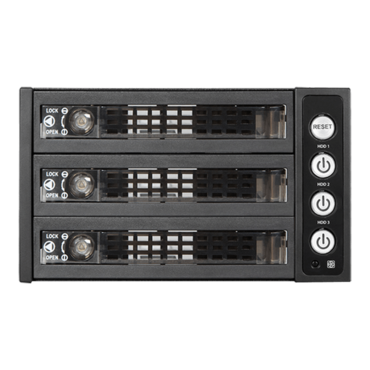

Create more space for hard drive with hot-swap capability, BPU-230SATA series supports RAID 1/0/1+0/5 configuration for high performance or redundancy data application. Aluminum construction provides light weight but strong stability and extra 70mm fan keep hard drive at maximum performance.
High density multi-disk storage backplane that allows multiple 3x3.5" SAS/SATA hard drives to be mounted into 2 standard 5.25". Aluminum construction provides best heat dissipation required for high performance SAS/SATA drives, is designed with excellent front to back vent airflow. Applications: Digital Audio Editing,Video Editing (SD or HD),Security System,SOHO SMEs With Limit HDD Tray and Data Protection or Disk-to-Disk Backup
|RoHS Compliance Version||Yes|
|Standard Drive Bays||Hotswap 3.5": 3
5.25" Drives: 2
|Hotswap HDD Type:||3.5" SAS I/II & SATA I/II/III|
|Indicators||Power, HDD, fan, and high temperature|
|Material of Handle||Plastic|
|Material of Main Chassis||Aluminum Design with Conductive Dissipation Grooves|
|Color of Main Chassis||Black|
|Package Content||SATA Cable Included (3pcs)|
|Dimensions (WxHxD)||5.75" x 3.39" x 8.22"
146.0 mm x 86.1 mm x 208.8 mm
