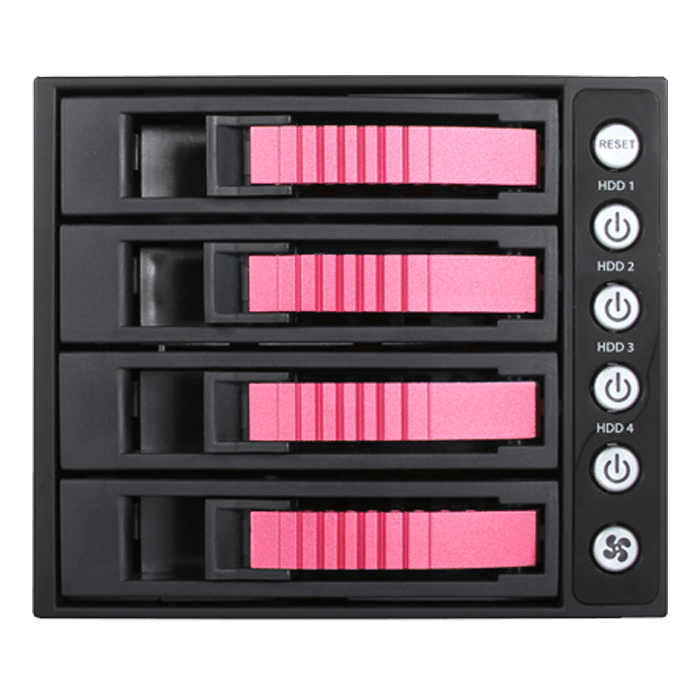

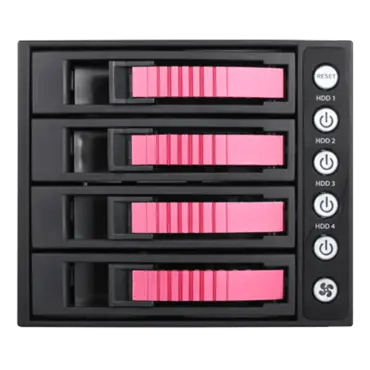

BPU-340HD-RED 3x 5.25" to 4x 3.5" 2.5" 12Gb/s HDD SSD Hot-swap Rack
High level Raid and high availability storage in compact design, BPU-340HD-RED adds extra storage and hot-swap capability to satisfy any application needs. Aluminum body and extra 80mm cooling fan subsystem complete a high end data storage server or workstation. High density multi-disk storage backplane that allows multiple four 3.5" SAS/SATA hard drives to be mounted into three standard 5.25" drive bays. BPU-340HD supports RAID 1/0/1+0/5 configuration for high performance or redundancy data application. Aluminum construction provides best heat dissipation required for high performance SAS/SATA drives, is designed with excellent front to back vent airflow. Applications: Digital Audio Editing,Video Editing (SD or HD), Security System, SOHO SMEs With Limit HDD Tray and Data Protection or Disk-to-Disk Backup.
High level Raid and high availability storage in compact design, BPU-340HD-RED adds extra storage and hot-swap capability to satisfy any application needs. Aluminum body and extra 80mm cooling fan subsystem complete a high end data storage server or workstation. High density multi-disk storage backplane that allows multiple four 3.5" SAS/SATA hard drives to be mounted into three standard 5.25" drive bays. BPU-340HD supports RAID 1/0/1+0/5 configuration for high performance or redundancy data application. Aluminum construction provides best heat dissipation required for high performance SAS/SATA drives, is designed with excellent front to back vent airflow. Applications: Digital Audio Editing,Video Editing (SD or HD), Security System, SOHO SMEs With Limit HDD Tray and Data Protection or Disk-to-Disk Backup.
BPU-340HD-RED 3x 5.25" to 4x 3.5" 2.5" 12Gb/s HDD SSD Hot-swap Rack
- Stylish aluminum color handle and heat-sink body
- Support Hot-Swap & RAID Configuration (need an additional RAID controller)
- Aluminum Design with Conductive Dissipation Grooves
- Power, fan and high temperature LED indicators
- High Performance Transfer Rate up to 12Gb/s
- Supports Both 2.5" and 3.5" SAS I/II/III & SATA I/II/III HDD/SSD
- Equipped with Fan Speed Control Switch
- 14TB Hard Drives Compatible
Model Number | BPU-340HD-RED |
RoHS Compliance | Yes |
Standard Drive Bays | Hotswap 3.5": 4
5.25" Drives: 3 |
Hotswap HDD Type: | 2.5" & 3.5" SAS I/II/III & SATA I/II/III |
Indicators | Power, HDD, fan, and high temperature |
Material of Front Bezel | Aluminum |
Material of Handle | Aluminum |

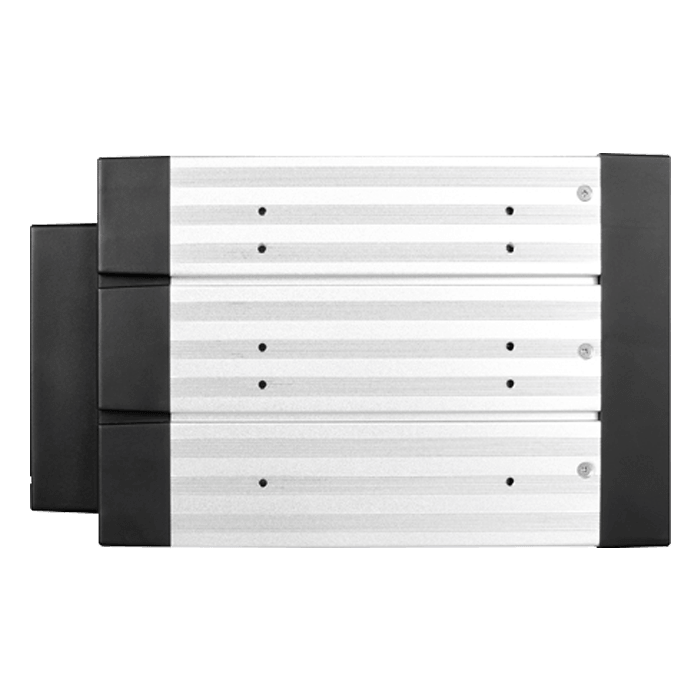

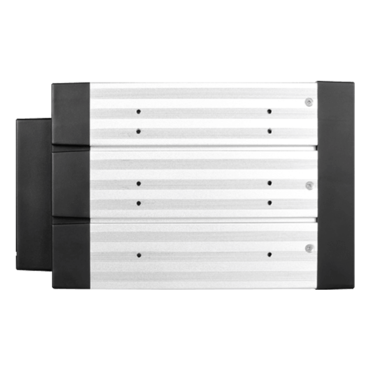

Material of Main Chassis | Aluminum Design with Conductive Dissipation Grooves |
Color of Front Bezel | Red |
Color of Main Chassis | Black |
Package Content | SATA Cable Included (4pcs) |
Cooling Fan | 1x80mm |
Ordering Information
(Part Number) |
Red Tray:BPU-340HD-RED |
Dimensions (WxHxD) | 5.75" x 4.96" x 8.03"
146.0 mm x 126.0 mm x 204.0 mm |
