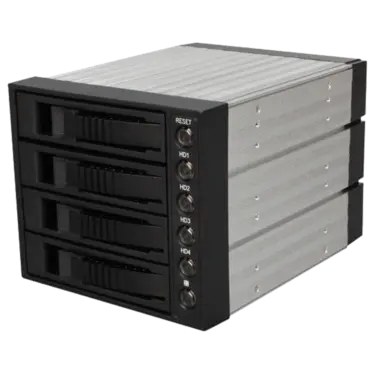

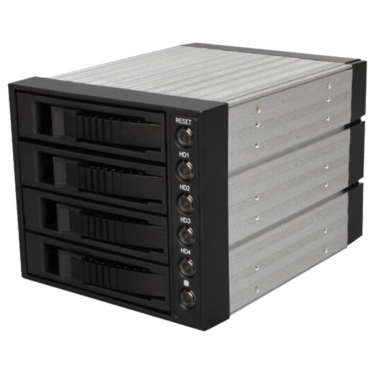

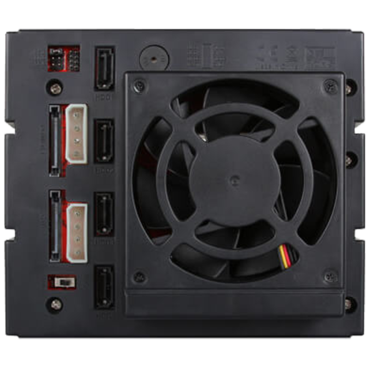

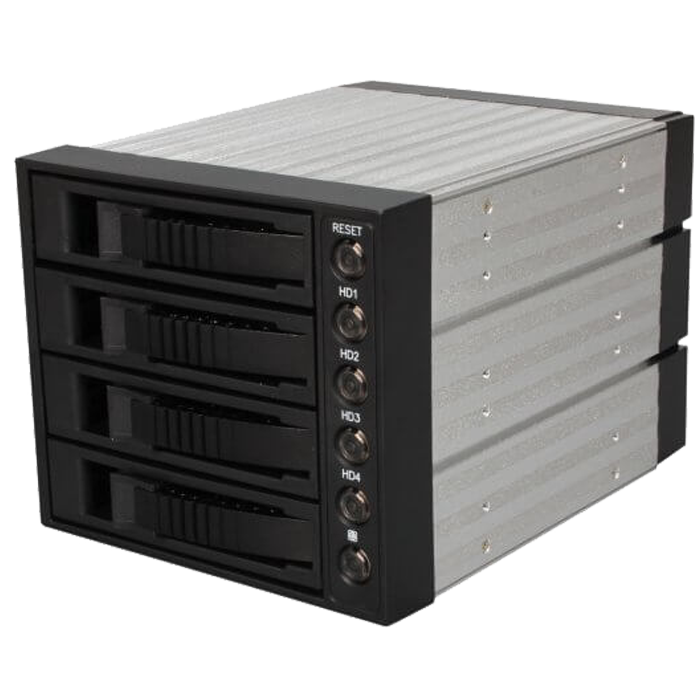

BPU-340SATA, 3x 5.25" to 4x 3.5"/2.5", SAS/SATA 6Gb/s, SSD/HDD, Black Hot Swap Module
BPU-340SATA, 3x 5.25" to 4x 3.5"/2.5", SAS/SATA 6Gb/s, SSD/HDD, Black Hot Swap Module

BPU-340SATA, 3x 5.25" to 4x 3.5"/2.5", SAS/SATA 6Gb/s, SSD/HDD, Black Hot Swap Module

Quantity:
  • SKU: 5981855
  • Manufacturer: ISTARUSA
  • MPN: BPU-340SATA-BLACK
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$116.15
Quantity:
BPU-340SATA, 3x 5.25" to 4x 3.5"/2.5", SAS/SATA 6Gb/s, SSD/HDD, Black Hot Swap Module

High density multi-disk storage backplane that allows multiple four 3.5" SAS/SATA hard drives to be mounted into three standard 5.25" drive bays. BPU-340SATA supports RAID 1/0/1+0/5 configuration for high performance or redundancy data application. Aluminum construction provides best heat dissipation required for high performance SAS/SATA drives, is designed with excellent front to back vent airflow. Applications: Digital Audio Editing,Video Editing (SD or HD), Security System, SOHO SMEs With Limit HDD Tray and Data Protection or Disk-to-Disk Backup.

  • Stylish aluminum color handle and heat-sink body
  • Support Hot-Swap & RAID Configuration (need an additional RAID controller)
  • Aluminum Design with Conductive Dissipation Grooves
  • Power, fan and high temperature LED indicators
  • High Performance Transfer Rate up to 6.0 Gb/s
  • Support 2.5"/3.5" SAS I/II & SATA I/II/III HDDs
  • Equipped with Fan Speed Control Switch
  • 6TB Hard Drive Compatible
Model Number BPU-340SATA
RoHS Compliance Version Yes
Standard Drive Bays Hotswap 3.5": 4
5.25" Drives: 3
Hotswap HDD Type: 3.5" SAS I/II & SATA I/II/III
Indicators Power, HDD, fan, and high temperature
Material of Front Bezel Aluminum
Material of Handle Aluminum
Material of Main Chassis Aluminum Design with Conductive Dissipation Grooves
Color of Front Bezel Black/ Blue/ Red/ Silver
Color of Main Chassis Black
Package Content SATA Cable Included (4pcs)
Cooling Fan 1x80mm
Ordering Information
(Part Number) 		Black Tray:BPU-340SATA-BLACK
Blue Tray:BPU-340SATA-BLUE
Red Tray:BPU-340SATA-RED
Silver Tray:BPU-340SATA-SILVER
Lockable Tray:BPU-340SATA-BPL
Dimensions (WxHxD) 5.75" x 4.96" x 8.03"
146.0 mm x 126.0 mm x 204.0 mm
Price
$116.15
