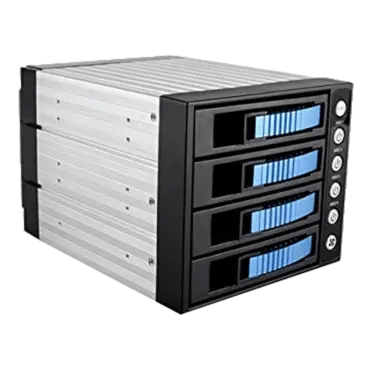

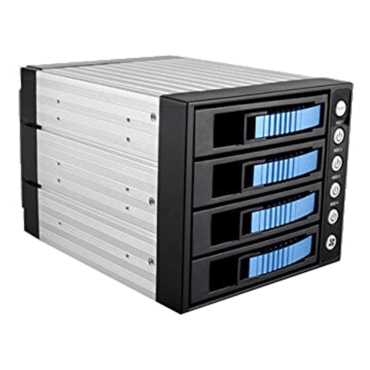

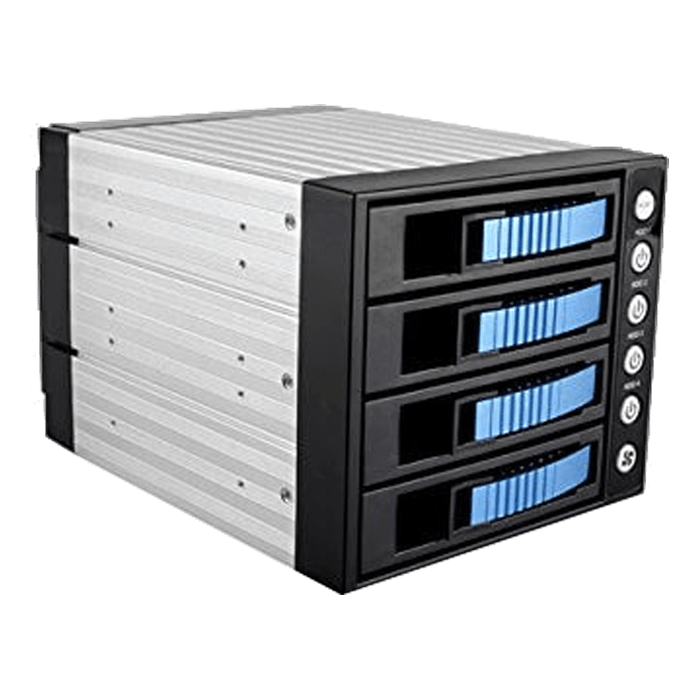

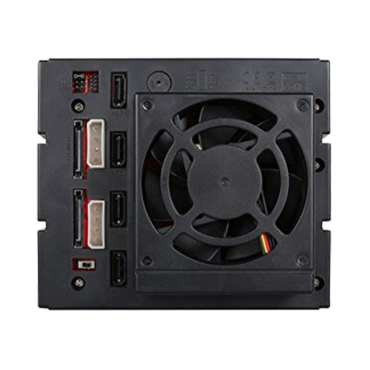

BPU-340SATA, 3x 5.25" to 4x 3.5"/2.5", SAS/SATA 6Gb/s, SSD/HDD, Blue Hot Swap Module
High level Raid and high availability storage in compact design, BPU-340SATA series adds extra storage and hot-swap capability to satisfy any application needs. Aluminum body and extra 80mm cooling fan subsystem complete a high end data storage server or workstation.
High density multi-disk storage backplane that allows multiple four 3.5" SAS/SATA hard drives to be mounted into three standard 5.25" drive bays. BPU-340SATA supports RAID 1/0/1+0/5 configuration for high performance or redundancy data application. Aluminum construction provides best heat dissipation required for high performance SAS/SATA drives, is designed with excellent front to back vent airflow. Applications: Digital Audio Editing,Video Editing (SD or HD), Security System, SOHO SMEs With Limit HDD Tray and Data Protection or Disk-to-Disk Backup.
- Stylish aluminum color handle and heat-sink body
- Support Hot-Swap & RAID Configuration (need an additional RAID controller)
- Aluminum Design with Conductive Dissipation Grooves
- Power, fan and high temperature LED indicators
- High Performance Transfer Rate up to 6.0 Gb/s
- Support 2.5"/3.5" SAS I/II & SATA I/II/III HDDs
- Equipped with Fan Speed Control Switch
- 6TB Hard Drive Compatible
Model Number |
BPU-340SATA |
RoHS Compliance Version |
Yes |
Standard Drive Bays |
Hotswap 3.5": 4 5.25" Drives: 3 |
Hotswap HDD Type: |
3.5" SAS I/II & SATA I/II/III |
Indicators |
Power, HDD, fan, and high temperature |
Material of Front Bezel |
Aluminum |
Material of Handle |
Aluminum |
Material of Main Chassis |
Aluminum Design with Conductive Dissipation Grooves |
Color of Front Bezel |
Black/ Blue/ Red/ Silver |
Color of Main Chassis |
Black |
Package Content |
SATA Cable Included (4pcs) |
Cooling Fan |
1x80mm |
Ordering Information (Part Number) |
Black Tray:BPU-340SATA-BLACK Blue Tray:BPU-340SATA-BLUE Red Tray:BPU-340SATA-RED Silver Tray:BPU-340SATA-SILVER Lockable Tray:BPU-340SATA-BPL |
Dimensions (WxHxD) |
5.75" x 4.96" x 8.03" 146.0 mm x 126.0 mm x 204.0 mm |
