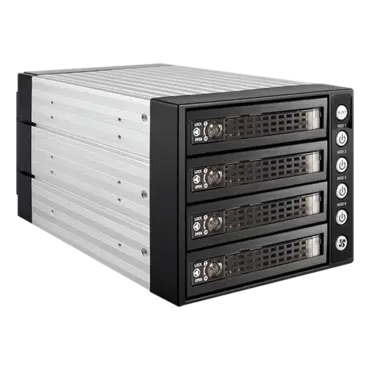

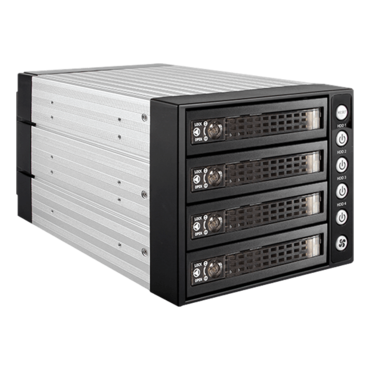

High level Raid and high availability storage in compact design, BPU-340SATA series adds extra storage and hot-swap capability to satisfy any application needs. Aluminum body and extra 80mm cooling fan subsystem complete a high end data storage server or workstation.
High density multi-disk storage backplane that allows multiple four 3.5" SAS/SATA hard drives to be mounted into three standard 5.25" drive bays. BPU-340SATA supports RAID 1/0/1+0/5 configuration for high performance or redundancy data application. Aluminum construction provides best heat dissipation required for high performance SAS/SATA drives, is designed with excellent front to back vent airflow. Applications: Digital Audio Editing,Video Editing (SD or HD), Security System, SOHO SMEs With Limit HDD Tray and Data Protection or Disk-to-Disk Backup.
|RoHS Compliance Version||Yes|
|Standard Drive Bays||Hotswap 3.5": 4
5.25" Drives: 3
|Hotswap HDD Type:||3.5" SAS I/II & SATA I/II/III|

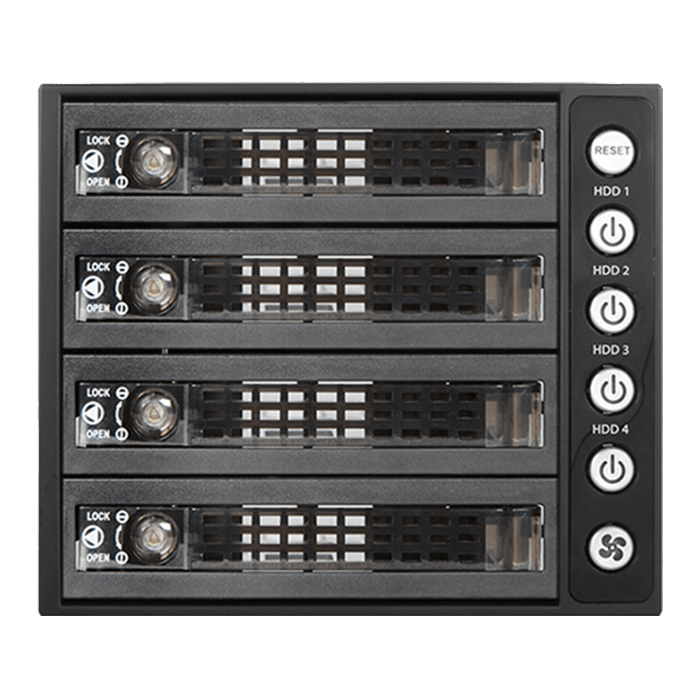

|Indicators||Power, HDD, fan, and high temperature|
|Material of Handle||Plastic|
|Material of Main Chassis||Aluminum Design with Conductive Dissipation Grooves|
|Color of Main Chassis||Black|
|Package Content||SATA Cable Included (4pcs)|
|Dimensions (WxHxD)||5.75" x 4.96" x 8.03"
146.0 mm x 126.0 mm x 204.0 mm
