BPU-340SATA Lockable Tray, 3x 5.25" to 4x 3.5"/2.5", SAS/SATA 6Gb/s, SSD/HDD, Black Hot Swap Module
Quantity:
- SKU: 5921967
- Manufacturer: ISTARUSA
- MPN: BPU-340SATA-BPL
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$116.15

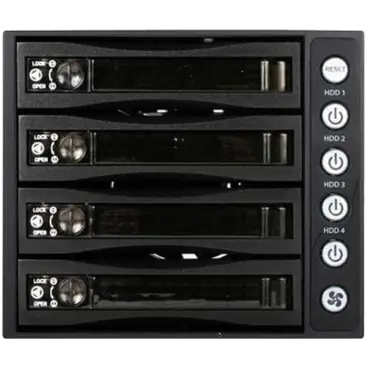

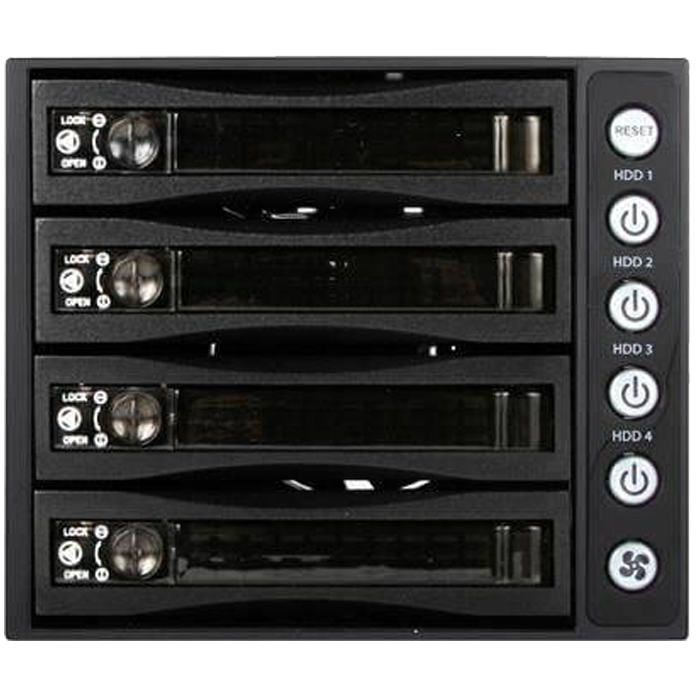

BPU-340SATA Lockable Tray, 3x 5.25" to 4x 3.5"/2.5", SAS/SATA 6Gb/s, SSD/HDD, Black Hot Swap Module
With a high level Raid and high storage availability in a compact design, the BPU-340SATA series adds extra memory and hot-swap capability to satisfy any application needs. Aluminum body and extra 80mm cooling fan subsystem complete a high-end data storage server or workstation.
High density multi-disk storage backplane allows four 3.5" SAS/SATA hard drives to be mounted into three standard 5.25" drive bays. BPU-340SATA supports RAID 1/0/1+0/5 configurations for high performance or redundancy data application. The aluminum construction provides best heat dissipation required for high performance SAS/SATA drives, and is designed with excellent front-to-back-vent airflow.
- RoHS Compliance Version: Yes
- Standard Drive Bays:
- 5.25" Drives: 3
- Hotswap 3.5": 4
- Indicators: Power, HDD, fan, and high temperature
- Material of Handle: Aluminum

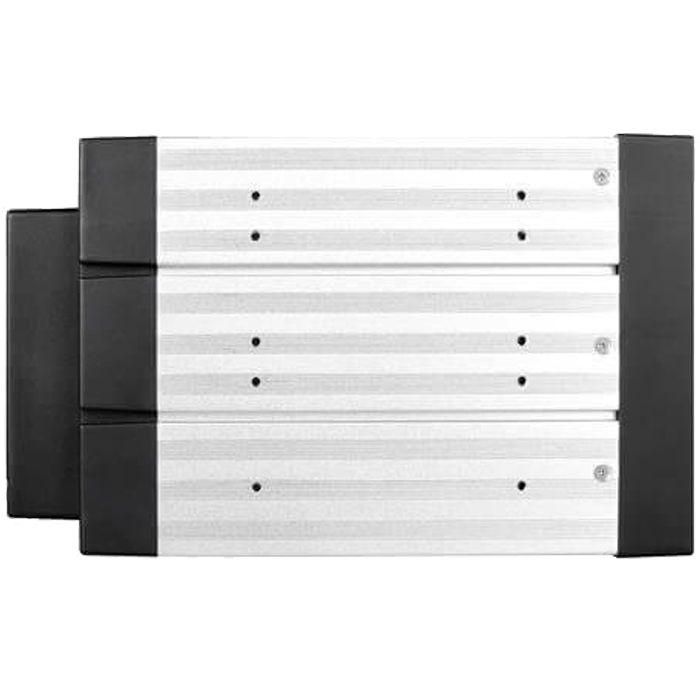

- Material of Main Chassis: Aluminum Design with Conductive Dissipation Grooves

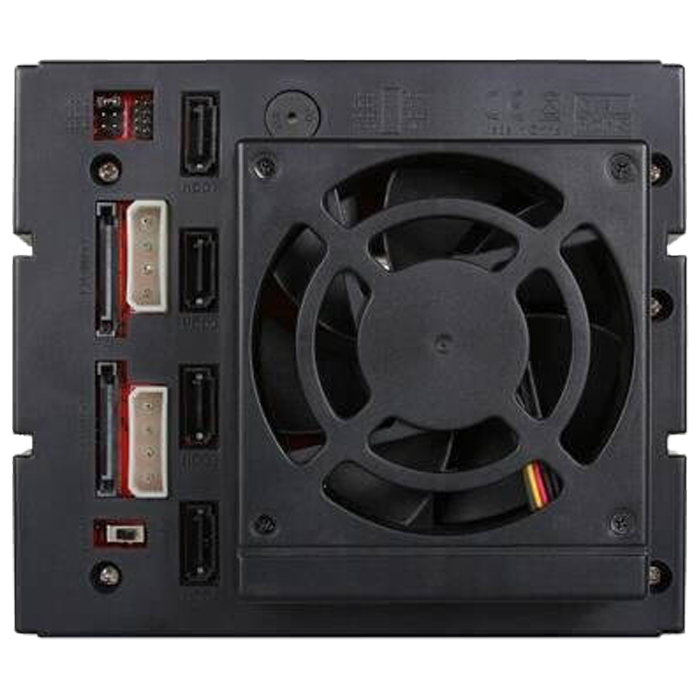

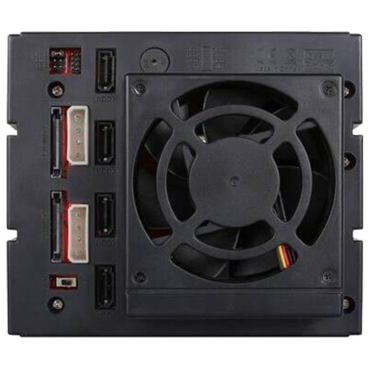

- Cooling Fan: 1 x 80 mm
- Dimensions: 4.96" x 5.75" x 8.03"
- Package Content: SATA Cable Included (4pcs)
| Model Number | BPU-340SATA |
| RoHS Compliance Version | Yes |
| Standard Drive Bays | Hotswap 3.5": 4 5.25" Drives: 3 |
| Hotswap HDD Type: | 3.5" SAS I/II & SATA I/II/III |
| Indicators | Power, HDD, fan, and high temperature |
| Material of Front Bezel | Aluminum |
| Material of Handle | Aluminum |
| Material of Main Chassis | Aluminum Design with Conductive Dissipation Grooves |
| Color of Front Bezel | Black/ Blue/ Red/ Silver |
| Color of Main Chassis | Black |
| Package Content | SATA Cable Included (4pcs) |
| Cooling Fan | 1x80mm |
| Ordering Information (Part Number) |
Black Tray:BPU-340SATA-BLACK Blue Tray:BPU-340SATA-BLUE Red Tray:BPU-340SATA-RED Silver Tray:BPU-340SATA-SILVER Lockable Tray:BPU-340SATA-BPL |
| Dimensions (WxHxD) | 5.75" x 4.96" x 8.03" 146.0 mm x 126.0 mm x 204.0 mm |
