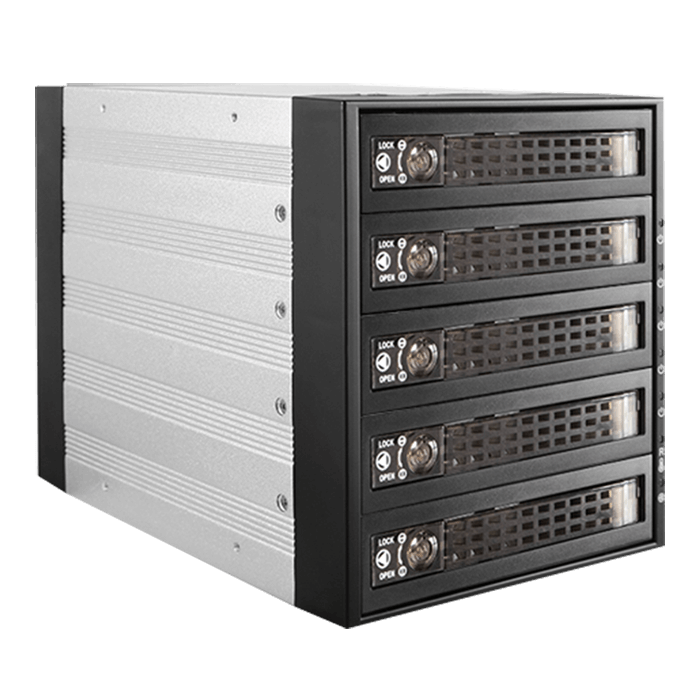

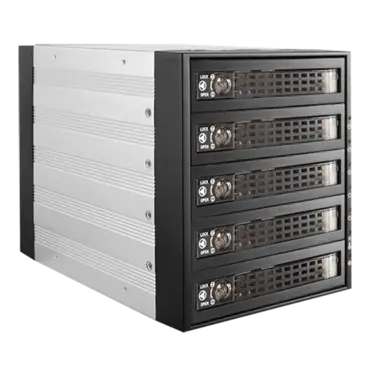

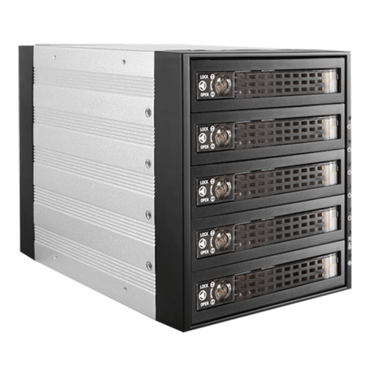

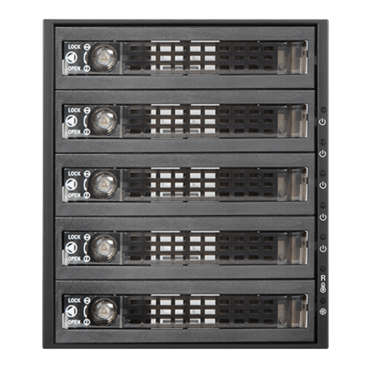

High level RAID and high availability storage in compact design, BPU-350SATA series adds extra storage and hot-swap capability to satisfy any application needs. The BPU-350SATA is constructed of aluminum material that provides best heat dissipation required for high performance SAS/SATA drives. It is designed with excellent front to back vent airflow. The BPU-350SATA is an ideal solution for internal server RAID and JBOD applications. Aluminum body and extra 80mm cooling fan subsystem complete a high end data storage server or workstation.
Model Number | BPU-350SATA-KL |
RoHS Compliance Version | Yes |
Standard Drive Bays | Hotswap 3.5": 5 5.25" Drives: 3 |
Hotswap HDD Type: | 3.5" SAS I/II & SATA I/II/III |
Indicators | Power, HDD, fan, and high temperature |
Security | Key Lock |
Material of Handle | Plastic |
Material of Main Chassis | Aluminum Design with Conductive Dissipation Grooves |
Color of Main Chassis | Black |
Package Content | SATA Cable Included (5pcs) |
Cooling Fan | 1x80mm |
Dimensions (WxHxD) | 5.75" x 4.96" x 8.25" 146.0 mm x 126.0 mm x 209.5 mm |
