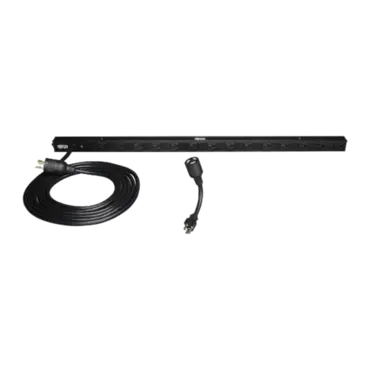

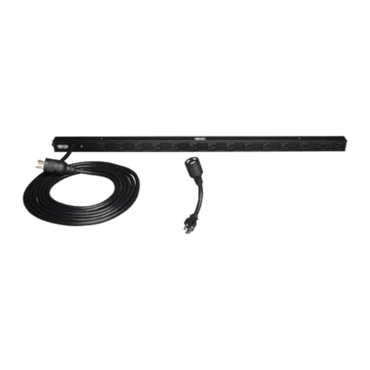

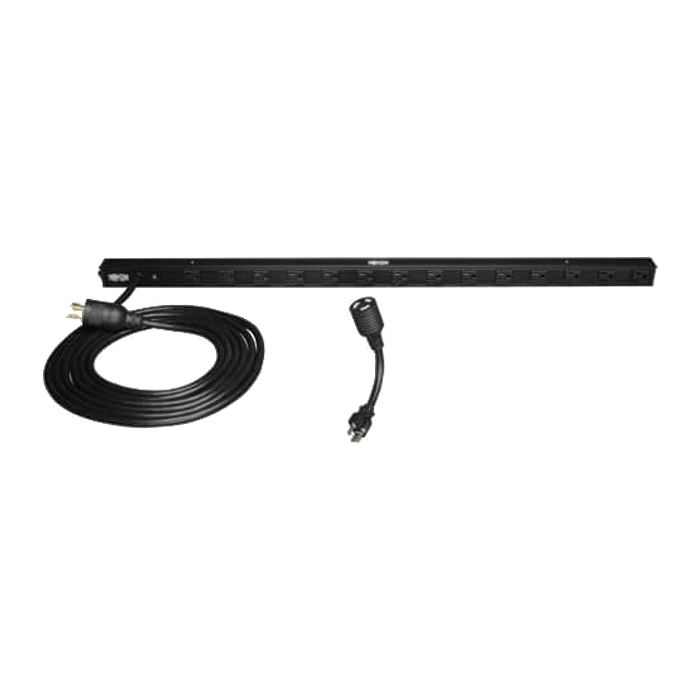

Basic Power Distribution Unit, 12 NEMA 5-15/20R, 120V AC, 50/60Hz, 20A/2400VA, 15-ft cord, Vertical 0URM, Black
- SKU: 1704813
- Manufacturer: TRIPP LITE
- MPN: PDUV20
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Tripp Lite's PDUV20 Basic Vertical Power Distribution Unit offers 20-amp, 120V multi-outlet AC power distribution in a convenient 36-inch mountable housing. It offers vertical power distribution in rackmount, raceway and workbench applications. Includes 12 NEMA 5-15/20R output receptacles and 15-ft. AC line cord. Sturdy all-metal aluminum housing stands up to demanding network, laboratory or factory environments. Unfiltered electrical pass-through makes the PDUV20 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Included 12 NEMA5-15/20R outlets, 15-ft. AC power cord with 5-20P plug, 20-amp circuit breaker in rugged metal case design with universal and button mounting options. PLUG/OUTLETS - Input: NEMA 5-20P/Output: 12 NEMA 5-15/20R ELECTRICAL - 120V AC, 50/60Hz, 20A FORMAT - 36-inch mountable strip format
- Sturdy all-metal, 36-inch corded PDU
- Includes integrated button mount and hardware for 0U configuration in rack enclosures as well as horizontal mounting in raceways and more
- 12 NEMA 5-15/20R output receptacles
- 20-amp electrical capacity with circuit breaker
- 120V, 50/60Hz electrical compatibility
- 15-ft. power cord
- Lifetime warranty
Applications
- Ideal for horizontal or vertical raceway-style power distribution in office, workbench, industrial, networking and telecom applications.
Package Includes
- PDUV20 Basic Vertical PDU
- Mounting hardware
- Owner's manual with warranty information
| SYSTEM OVERVIEW | |
|---|---|
| Voltage compatibility | 120V |
| OUTPUT | |
| Frequency compatibility | 50 / 60 Hz |
| Output VA | 20A/2400VA |
| Output nominal voltage | 120V |
| Overload protection | 20A |
| Outlet quantity / type | 12 NEMA 5-15/20R |
| INPUT | |
| Recommended Electrical Service | 120V |
| Maximum input amps | 20A |
| Input connection type | NEMA 5-20P |
| Input cord length (ft.) | 15 ft. |
| PHYSICAL | |
| Shipping weight (lbs) | 3.8 |
| Unit Dimensions (HWD/in) | 1.75 x 36 x 1.25 |
| Shipping Dimensions (HWD/in) | 3 x 40 x 2.75 |
| Unit weight (lbs) | 3.3 |
| Material of construction | Aluminum |
| Style | Vertical Rackmount, Wallmount, Raceway, Workbench |
| Form factors supported | Vertical (0U) mounting in rack enclosures, horizontal mount in raceways and a variety of other applications |
| SPECIAL FEATURES | |
| Appearance | Black housing |
| CERTIFICATIONS | |
| Certifications | Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada), RoHS Compliant |
| WARRANTY | |
| Standard warranty period | Lifetime warranty |
