Basic Power Distribution Unit, 12 NEMA 5-15R, 120V AC, 50/60Hz, 15A/1800VA, 15-ft cord, Black

Quantity:
  • SKU: 1441672
  • Manufacturer: TRIPP LITE
  • MPN: PDUV15
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$126.36
Quantity:
Basic Power Distribution Unit, 12 NEMA 5-15R, 120V AC, 50/60Hz, 15A/1800VA, 15-ft cord, Black

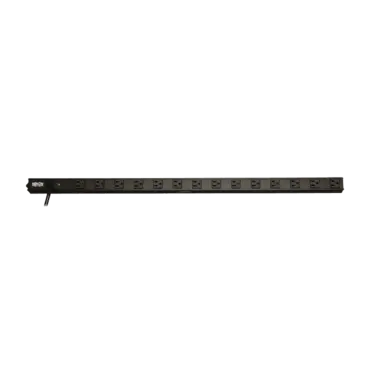

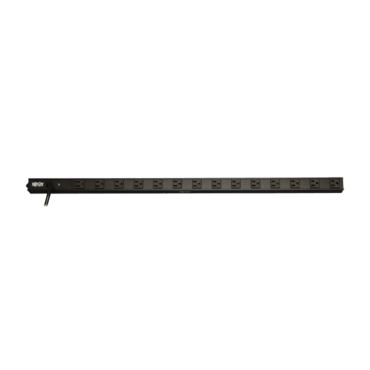

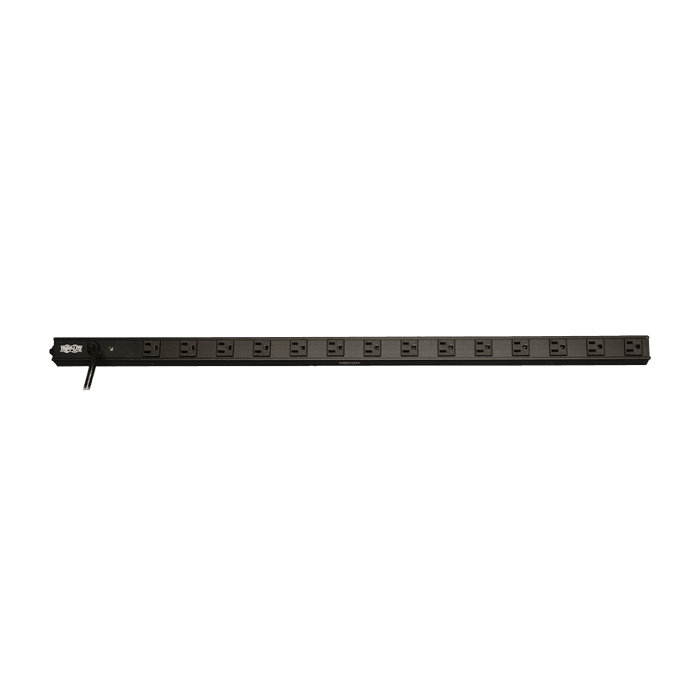

The PDUV15 1.44kW Single-Phase 120V Basic PDU is an excellent no-frills unit for data centers, server rooms and network wiring closets. Perfectly suited for high-density IT environments, the PDUV15 features 14 NEMA 5-15R outlets. The NEMA 5-15P input plug with long 15-foot (4.5 m) cord connects to your facility’s compatible AC power source, generator or protected UPS to distribute power to connected equipment.

The switchless design prevents an accidental shutdown, which could lead to costly downtime. A 15A circuit breaker protects connected equipment from dangerous overloads. The 36-inch all-metal housing supports 0U vertical mounting in EIA-standard 19-inch racks using the included hardware and mounting clips or toolless mounting using the included buttons. You can also mount the PDUV15 on a wall or workbench or under a counter with user-supplied hardware.

liable Single-Phase Power Distribution

  • Versatile no-frills PDU for data centers, server rooms and network wiring closets
  • 14 NEMA 5-15R outlets
  • NEMA 5-15P input with 15 ft. cord
  • 15A circuit breaker protects outlets against overloads


Switchless Design

  • Prevents accidental shutdowns and costly downtime


Versatile Installation Options

  • 36 in. all-metal housing
  • Supports toolless 0U vertical mounting in EIA-standard 19 in. racks
  • Also supports 0U mounting using included hardware
  • Rear installation buttons can be relocated to the left or right surface for rear, center or forward-facing outlet orientation
  • Also mounts on wall, workbench or under a counter with user-supplied hardware

Package Includes

  • PDUV15 1.44kW Single-Phase 120V Basic PDU
  • Mounting brackets
  • Owner’s manual
OVERVIEW
PDU Type Basic
OUTPUT
Output Capacity Details 1.52kW (127V), 1.44kW (120V), 1.2kW (100V) / 15A total capacity (Agency de-rated to 12A); 12A max per outlet
Frequency Compatibility 50 / 60 Hz
Output Receptacles (14) 5-15R
Output Nominal Voltage 100; 120; 127
Overload Protection 15A circuit breaker
INPUT
PDU Input Voltage 100; 120; 127
Recommended Electrical Service 15A 120V
Maximum Input Amps 15
PDU Plug Type NEMA 5-15P
Input Cord Length (ft.) 15
Input Phase Single-Phase
USER INTERFACE, ALERTS & CONTROLS
Switches n/a
PHYSICAL
Shipping Dimensions (hwd / in.) 40 x 2.8 x 3
Shipping Weight (lbs.) 3.8
Unit Dimensions (hwd / in.) 36 x 1.25 x 1.75
Unit Weight (lbs.) 3.3
Material of Construction Metal
Form Factors Supported Vertical (0U) mounting in rack enclosures, horizontal mount in raceways and a variety of other applications
PDU Form Factor Vertical (0U)
ENVIRONMENTAL
Storage Temperature Range 5 to 122F (-15 to 50C)
Relative Humidity 5 to 95% non-condensing
Operating Elevation (ft.) 0-10,000
CERTIFICATIONS
Certifications Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada), RoHS Compliant
WARRANTY
Product Warranty Period (Worldwide) 5-year limited warranty
