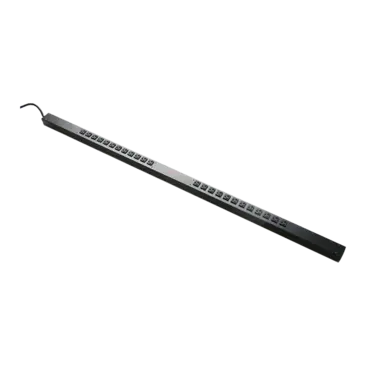

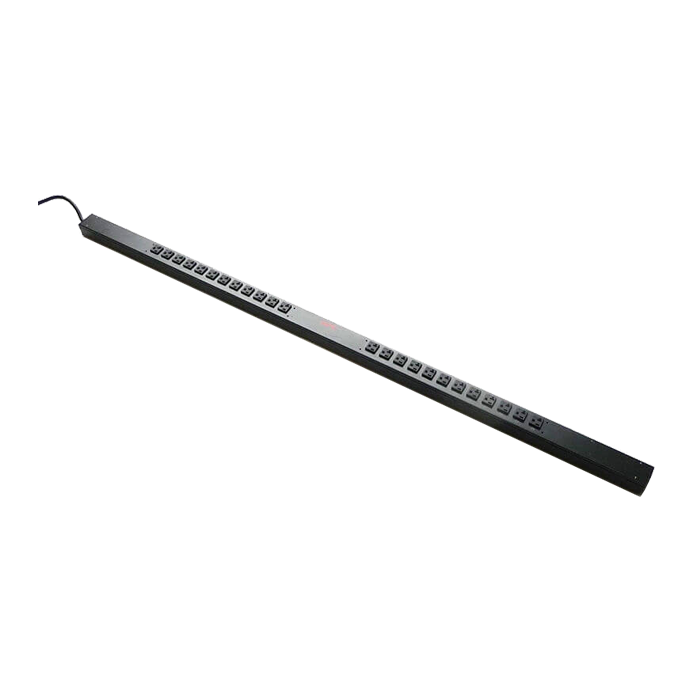

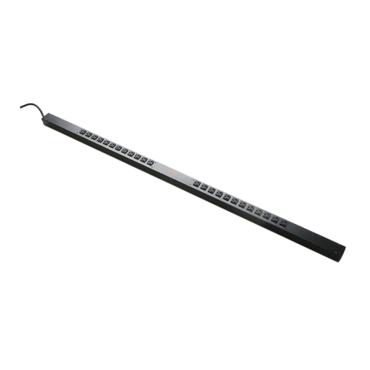

Basic Rack PDU Power Strip, Zero U Rack, 24x / NEMA 5-20R, 120V AC, 16A, 2400VA, 10-feet, Black
Quantity:
- SKU: 26794
- Manufacturer: APC
- MPN: AP7530
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$357.27
Basic Rack PDU Power Strip, Zero U Rack, 24x / NEMA 5-20R, 120V AC, 16A, 2400VA, 10-feet, Black
Rack PDU, Basic, Zero U, 20A, 120V, (24) NEMA 5-20R. APC Basic Rack PDU , Input: 120V , Input Connection Type: NEMA L5-20P , Cord Length: 10 feet , Output: 120V , Output Connections: NEMA 5-20R
Rack PDU, Basic, Zero U, 20A, 120V, (24) NEMA 5-20R. APC Basic Rack PDU , Input: 120V , Input Connection Type: NEMA L5-20P , Cord Length: 10 feet , Output: 120V , Output Connections: NEMA 5-20R
- Nominal input voltage - 100-120 volts
- Load Capacity - 2400 VA
- Output Receptacles24 x NEMA 5-20R
- Input ReceptaclesNEMA L5-20P
- Power Cord/Cable10 ft Power Cord
- Form FactorZero U Rack-mountable
| Output | |
| Nominal Output Voltage | 120V |
| Maximum Total Current Draw per Phase | Phase 16A |
| Output Connections | (24) NEMA 5-20R |
| Always on Outlets | 24 |
| Overload Protection | No |
| Input | |
| Nominal Input Voltage | 100V, 120V |
| Input Frequency | 50/60 Hz |
| Regulatory Derated Input Current (North America) | 16A |
| Input Connections | NEMA L5-20P |
| Cord Length | 10 feet (3.05 meters) |
| Number of Power Cords | 1 |
| Acceptable Input Voltage | 100-120 VAC |
| Maximum Input Current per phase | 20A |
| Load Capacity | 1920 VA |
| Physical | |
| Net Weight | 10.70 lbs. (4.86 kg) |
| Maximum Height | 63.75 inches (1619 mm) |
| Maximum Width | 2.19 inches (56 mm) |
| Maximum Depth | 1.73 inches (44 mm) |
| Shipping Weight | 12.70 lbs. (5.77 kg) |
| Shipping Height | 84.00 inches (2134 mm) |
| Shipping Width | 6.00 inches (152 mm) |
| Shipping Depth | 5.00 inches (127 mm) |
| Color | Black |
| Environmental | |
| Operating Environment | 23 - 113 °F (-5 - 45 °C) |
| Operating Relative Humidity | 5 - 95% |
| Operating Elevation | 0-15000 feet (0-4500 meters) |
| Storage Temperature | -13 - 149 °F (-25 - 65 °C) |
| Storage Relative Humidity | 5 - 95% |
| Storage Elevation | 0-50000 feet (0-15000 meters) |
| Conformance | |
| Regulatory Approvals | cUL Listed,CSA C22.2 No. 60950-1-03,UL 60950-1,UL Listed |
| Standard Warranty | 2 years repair or replace |
| Environmental Compliance | RoHS 7b Exemption |
