C1000, 80 PLUS Gold 1000W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 15178201
- Manufacturer: NZXT
- MPN: PA-0G1BB-US
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$204.33

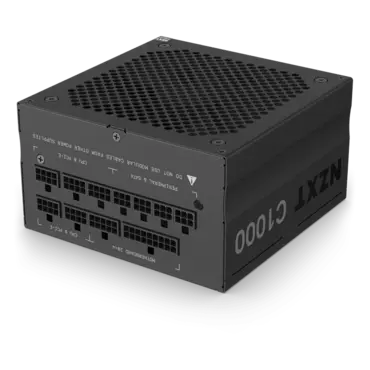

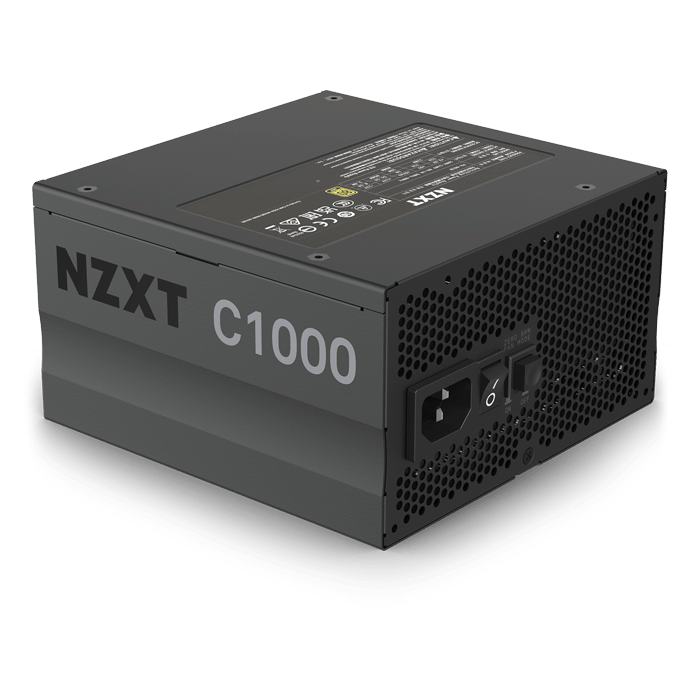

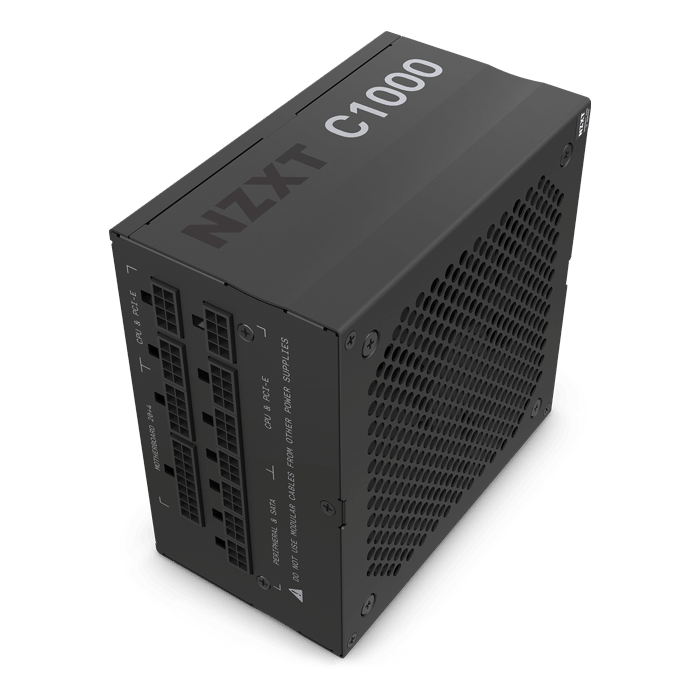

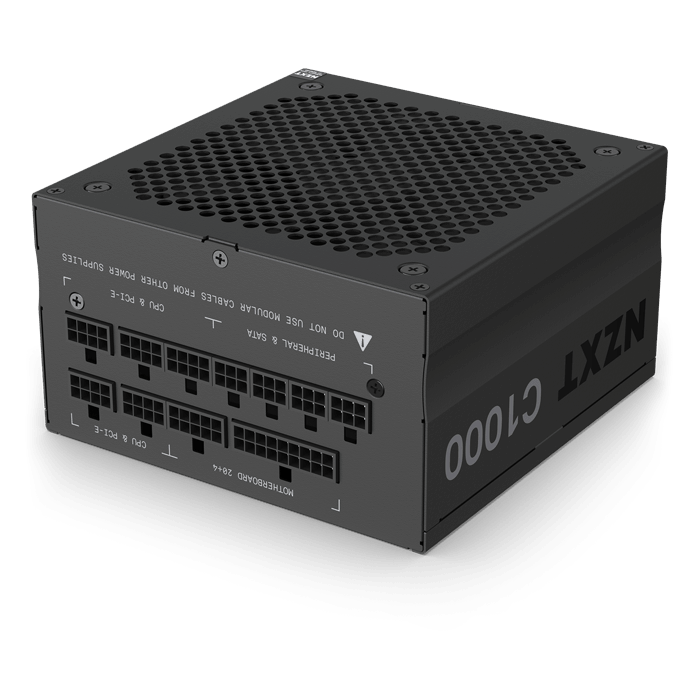

C1000, 80 PLUS Gold 1000W, Fully Modular, ATX Power Supply
This PSU delivers 1000 watts of clean, stable power and is ideal for gaming and workstation PCs that have multiple GPUs and high-performance CPUs. The C1000 supports the latest GPUs, including up to an NVIDIA RTX 3090 and AMD GPUs up to the 6900 XT.

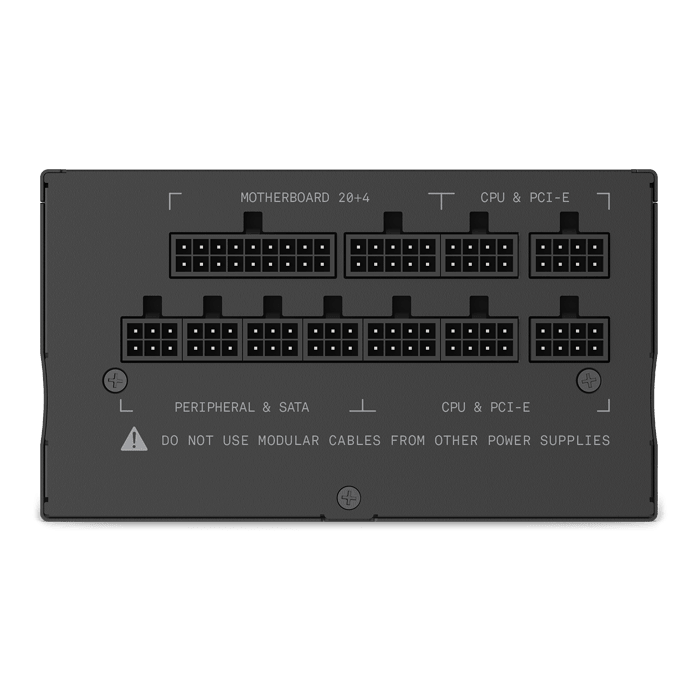

| Output Connectors | |
| 24-pin ATX power | 1 |
| 4+4-pin CPU power | 2 |
| 6+2-pin PCIe power | 6 |
| SATA power | 6 |
| Peripherals | 6 |
| Cable Specs | |
| 24-pin ATX power | 600 mm, Nylon sleeving |
| 4+4-pin CPU power | 700 mm, Nylon sleeving |
| 6+2-pin PCIe power | 650 + 150 mm, Nylon sleeving |
| SATA power | 500 + 150 mm |
| Peripherals | 500 + 150 mm |
| AC Input Rating | |
| 100 - 240Vac | 13A-6.5A 50Hz-60Hz |
| DC Output Rating | |
| +3.3V and +5V | 22A (120W) |
| +12V | 83.5A (1002W) |
| -12V | 0.3A (3.6W) |
| 5Vsb | 3A (15W) |
| Total | 1000W |
| Operation | |
| PF Correction | Active @0.96 |
| MTBF | 100,000 hours |
| Temperature | 0 - 50 °C (derating from 100% to 80% from 40 °C to 50 °C) |
| Energy Efficiency | |
| Rating | 80 Plus Gold |
| 20% loading | 87% @115Vac |
| 50% loading | 90.5% @115Vac |
| 100% loading | 87.5% @115Vac |
| Fan Specs | |
| Dimensions | 135 x 135 x 25 mm |
| Speed | 0-2300 ± 10% RPM |
| Airflow | 93.02 CFM (Tpy.) |
| Noise | 44.5 dBA max |
| Bearing | Fluid Dynamic Bearing (FDB) |
| General | |
| Dimensions | 150 x 150 x 86mm |
| Material(s) | Steel, PCB and Plastic |
| Compliance Standard | ATX12V v2.52 / EPS12V v2.92 |
| Regulation & Certification | cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA |
| Warranty | 10 years |
| Model Number | PA-0G1BB |
| UPC | |
| UPC (US) | 815671017468 |
| EAN | |
| EAN (US) | 5060301697779 |
