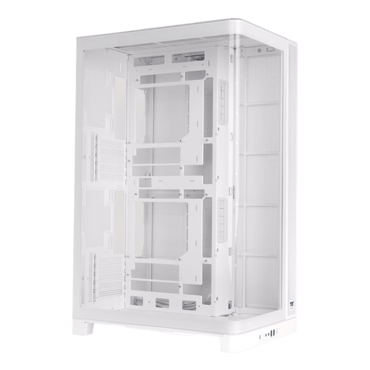

CAPO X, Tempered Glass, No PSU, ATX, Snow, Dual System Case
- SKU: 20351791
- Manufacturer: THERMALTAKE
- MPN: CA-12D-00S6WN-00
- Availability: TEMPORARILY OUT OF STOCK
CAPO X, Tempered Glass, No PSU, ATX, Snow, Dual System Case

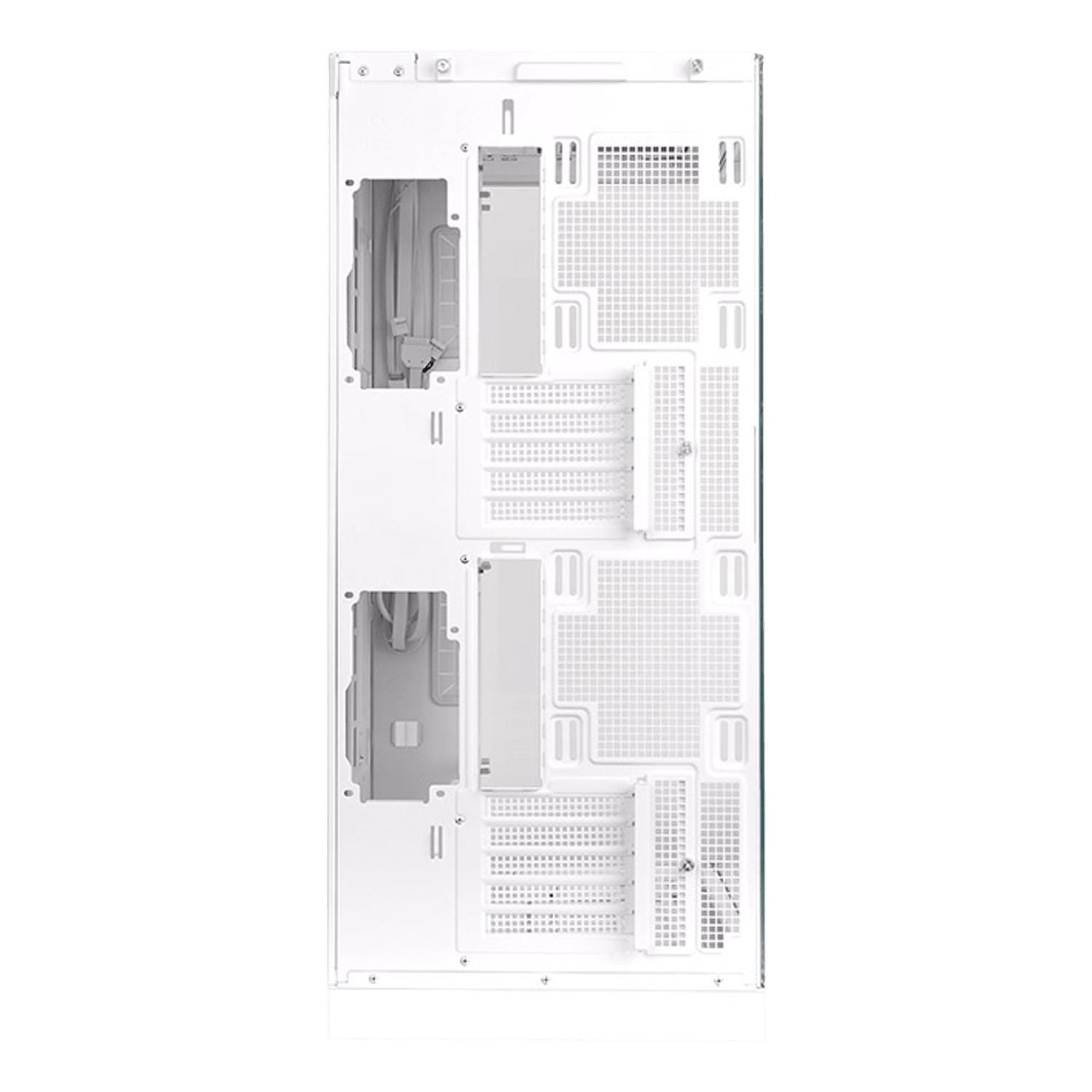

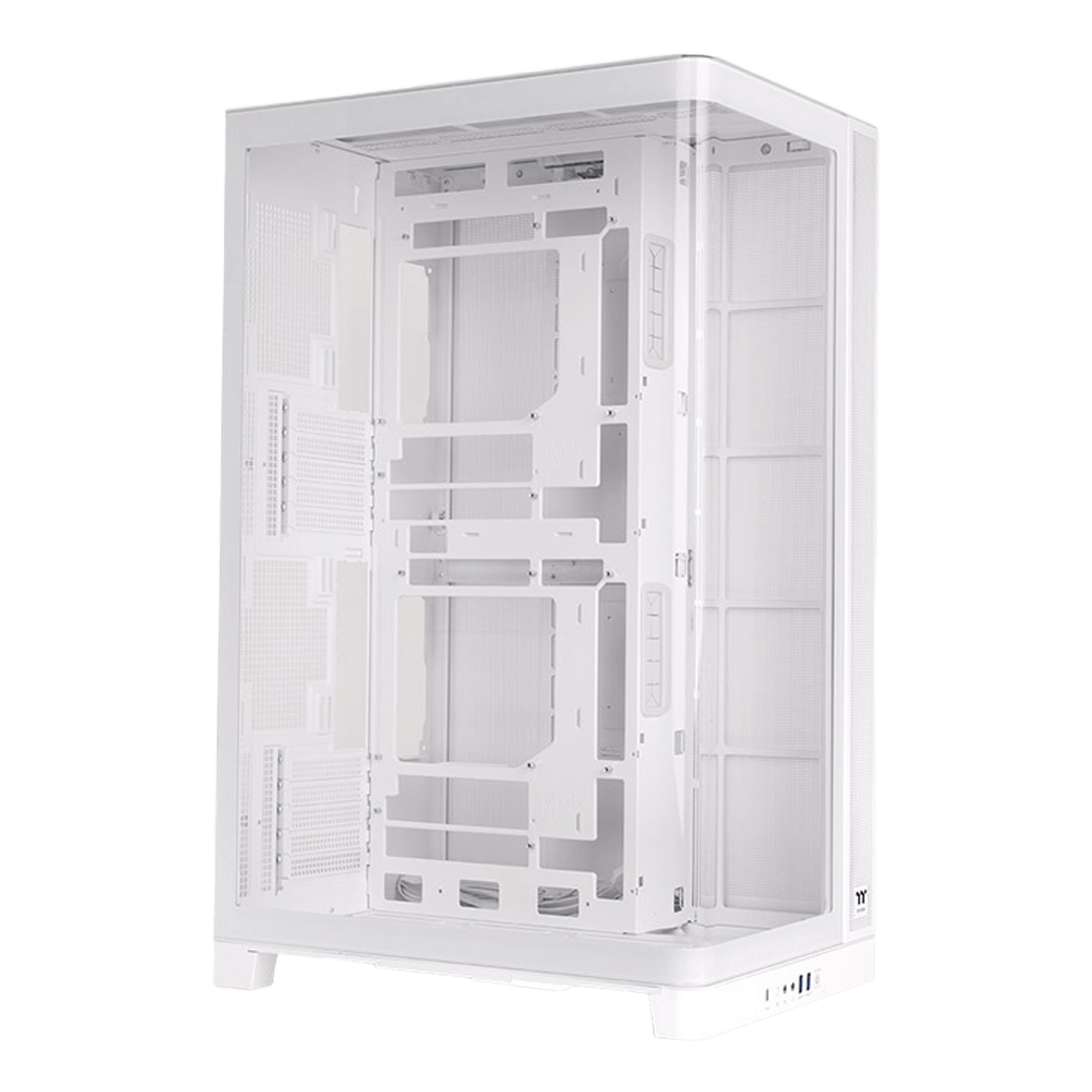

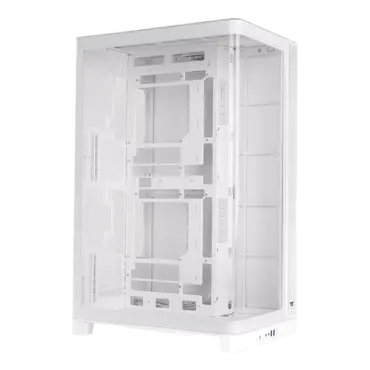

The CAPO X Snow Dual System Chassis supports two independent systems in one chassis.
Featuring a 4mm tempered
glass side panel and dedicated I/O for both systems, it supports up to 420mm GPUs, 180mm CPU coolers, and flexible
cooling configurations with radiator support up to 420mm.
More than just a dual-system chassis, the CAPO
X unlocks new possibilities for how you work, create, and play. It supports AI agent workspace, shared setup, and
streaming without limits, delivering flexible performance for modern users.
| P/N | CA-12D-00S6WN-00 |
| Series | CAPO |
| CASE TYPE | Dual System Case |
| Dimension (H x W x D) | 691 x 305 x 448 mm (27.21 x 12.01 x 17.64 inch) |
| PANEL | 4mm Tempered Glass x 1 |
| MATERIAL | SPCC |
| COOLING SYSTEM | N/A |
| Drive Bays | Upper (3 x 2.5” or 1 x 3.5” + 2 x 2.5”), Lower (2 x 2.5" or 1 x 3.5” + 1 x 2.5”) |
| EXPANSION SLOTS | 10 Slots (5 for Upper / 5 for Lower) |
| MOTHERBOARDS |
Upper System : 9.6” x 9.6” (Micro ATX), 6.7” x 6.7” (Mini ITX) Lower System: 9.6” x 9.6” (Micro ATX), 6.7” x 6.7” (Mini ITX) |
| Hidden-Connector Motherboard | 9.6” x 9.6” (Micro ATX) |
| I/O Port |
Upper System : USB 3.2 Gen 2 Type-C x 1, USB 3.0 x 2, HD Audio x 1 Lower System : USB 3.2 Gen 2 Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Upper System : Standard PS2 PSU (optional) Lower System : Standard PS2 PSU (optional) |
| FAN SUPPORT |
Top: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right: 5x 120mm, 4 x 120mm, 3 x 120mm, 2 x 120mm, 1 x 120mm 4 x 140mm, 3 x 140mm, 2 x 140mm, 1 x 140mm Rear: 1 x 120mm, 1 x 140mm (Upper) 1 x 120mm, 1 x 140mm (Lower) Bottom: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm |
| RADIATOR SUPPORT |
Top(AIO): 1 x 360mm, 1 x 240mm, 1 x 120mm / 1 x 280mm, 1 x 140mm Right(AIO): 1 x 360mm, 1 x 240mm, 1 x 120mm / 1 x 420mm, 1 x 280mm, 1 x 140mm (2 x 280mm) Rear(AIO): 1 x 120mm, 1 x 140mm (Upper System) / 1 x 120mm, 1 x 140mm (Lower System) |
| CLEARANCE |
CPU cooler height limitation: 180mm VGA length limitation: 420mm PSU length limitation: Upper System: A/160mm, B/180mm, C/250mm Lower System: D/180mm, E/250mm |
