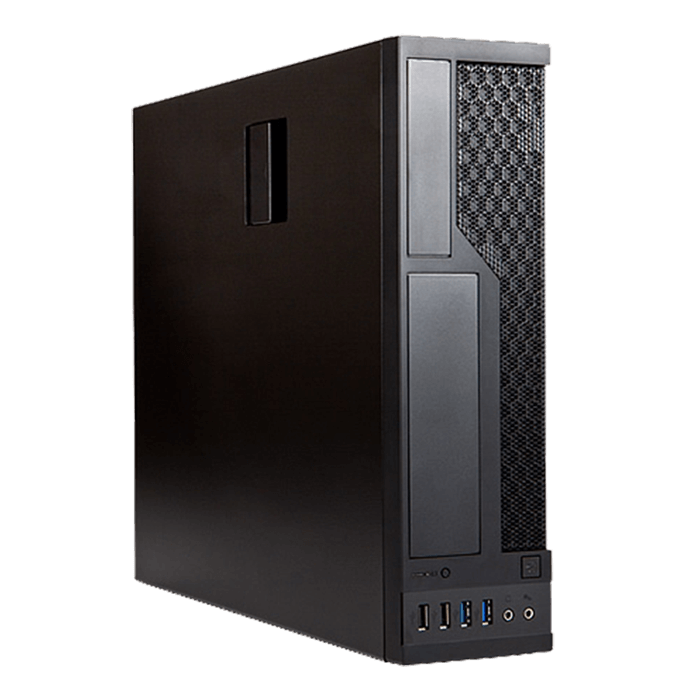

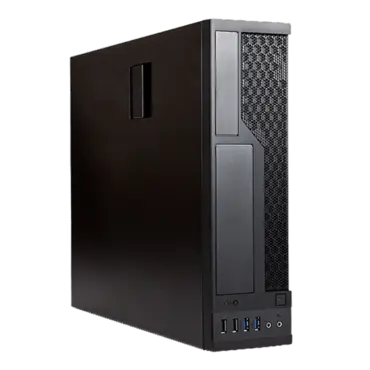

CE685, 300W PSU, microATX, Black, Slim Case
- SKU: 8469172
- Manufacturer: IN WIN
- MPN: CE685.FH300TB3
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Innovative thermal design without ventilation holes on the top, bottom or side panels. Placement in both Vertical or Horizontal stance.

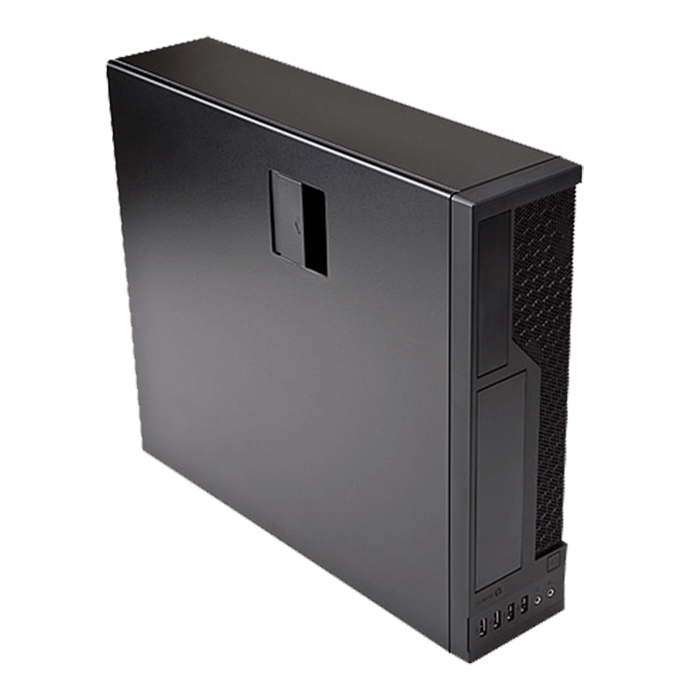

New Slim Chassis
Innovative thermal design without ventilation holes on the top, bottom or side panels. Placement in both Vertical or Horizontal stance.
Superior Thermal Solution
Vacuum effect with a built-in 90mm front fan for quick heat dissipation.
Highly Expandable
Equipped with two USB 2.0 and two USB 3.0 ports for multiple USB device connections.
Easy Installation

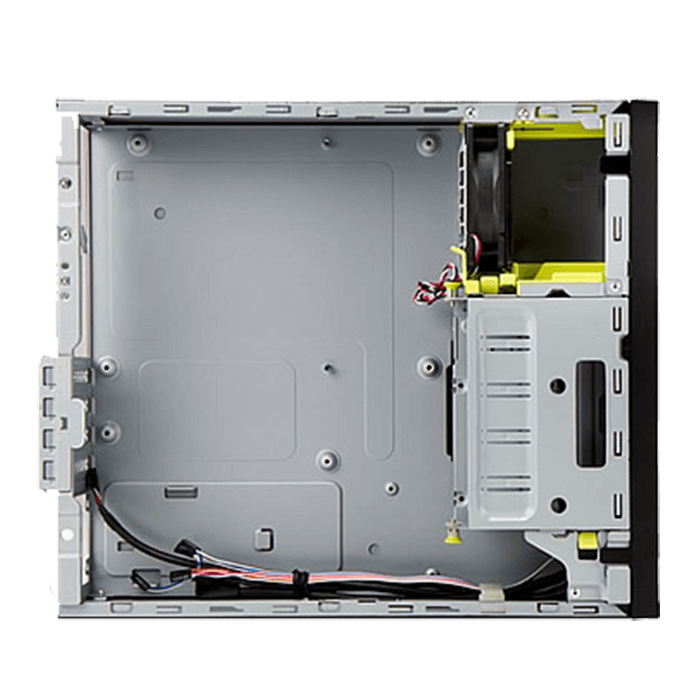

Tool-free design for ODD, HDD, fan bracket and PCI slots.
Quick Release Side Cover
One touch release for fast system assembly or maintenance.
| Case Size | S.F.F Slim Chassis |
| Color | |
| External Drive Bays | 5.25" x 1, 3.5" x1 (Up to 92mm) |
| Internal Drive Bays | 3.5" x 1, 2.5” x 1 |

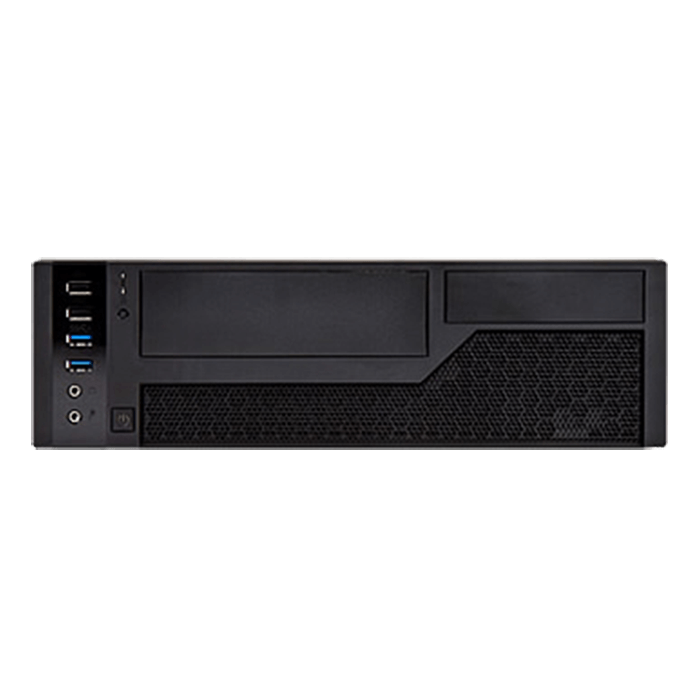

| Front Ports | USB 3.0 x 2, USB 2.0 x 2, HD Audio |
| Dimensions (H x W x D) w/o Front Panel |
334 x 96 x 370 mm (11.9L) 13.1" x 3.8" x 14.6" |
| MB Form Factor | Micro ATX / Mini-ITX |

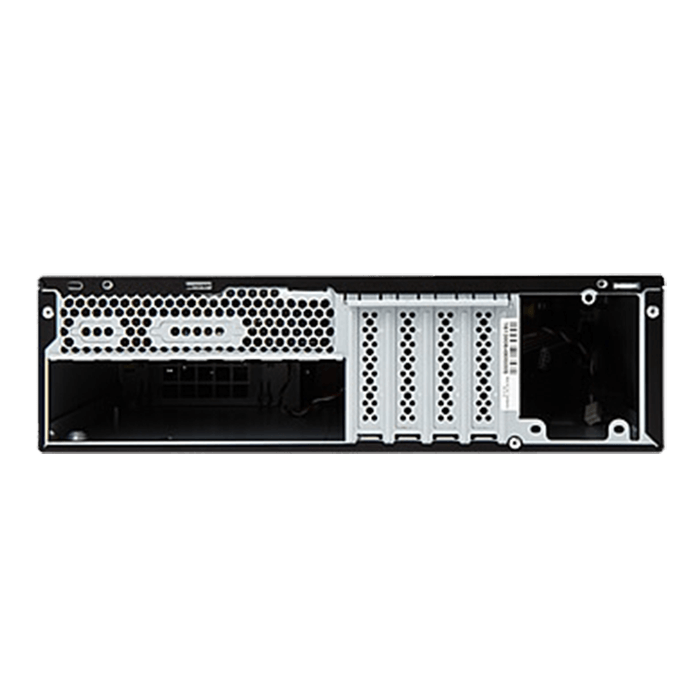

| I / O Expansion Slots | Low Profile Slot x 4 |
| Power Supply | Standard TFX 12V |
| Thermal Solution | 90mm Front Fan x 1 |
| Safety | Meets RoHS, CE and FCC Class B Requirements |
| Security | Padlock Loop / Kensington Slot |
| Optional |
Removable Air Filter Chassis Intrusion Switch Tool-Free Side Cover |
