CORE GX-850 ATX 3.1, 80 PLUS Gold 850W, Fully Modular, ATX Power Supply
- SKU: 18505226
- Manufacturer: SEASONIC
- MPN: CORE V2 GX-850 (ATX3)
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$124.29
| 80PLUS® | Gold | ||||||
| Cybenetics Efficiency Level | TBA | ||||||
| Cybenetics Noise Level | TBA | ||||||
| Form Factor | ATX/EPS | ||||||
| Dimensions | 140 × 150 × 86 mm | ||||||

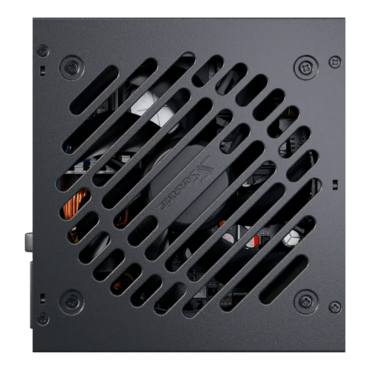

| Fan Information | Fan Size | 120 mm | |||||
| Fan Control | Smart and Silent Fan Control | ||||||
| Fan Bearing | Hydro Dynamic Bearing | ||||||
| Life Expectancy | 25,000 hours at 40 °C, 15 % — 65 % RH | ||||||
| Cable Information | Modularity | Fully Modular | |||||
| Cable type | Individual Black Cables with Braided Pattern | ||||||
| Electrical Features | Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly) | |||||
| MTBF @ 25 °C, excl. fan | 100,000 hours | ||||||
| AC Input | Full Range | ||||||
| Protection | OPP, OCP, OTP, OVP, SCP, UVP | ||||||
| Safety and Environmental | Safety and EMC | BSMI, C-tick, CB, CCC, CE, cTUVus, EAC, FCC, TUV, UKCA | |||||
| Environmental Compliance | Energy Star, ErP Lot 6, REACH, RoHS, WEEE | ||||||
| Warranty | 7 Years | ||||||
| Power Output | |||||||
| AC Input | 100 V - 240 V | ||||||
| 11 - 5.5 A | |||||||
| 50 Hz - 60 Hz | |||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB | |
| Maximum Power | 20 A | 20 A | 70 A | 0.3 A | 3 A | ||
| 100 W | 840 W | 3.6 W | 15 W | ||||
| Total continuous power | 850 W | ||||||
