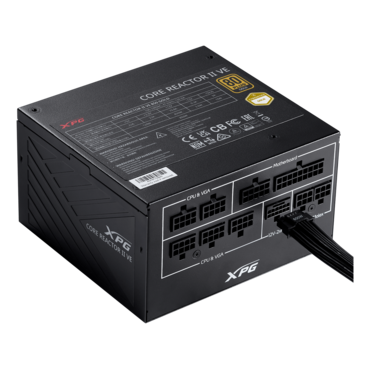

CORE REACTOR II VE 650, 80 PLUS Gold 650W, Fully Modular, ATX Power Supply
- SKU: 18596223
- Manufacturer: XPG
- MPN: COREREACTORIIVE650G BK C US
- Availability: LOW STOCK
Price
$116.28
| Dimensions (L x W x H) | 140 x 150 x 86mm |
| Cybenetics Rating | GOLD |
| 80 Plus Rating | GOLD |
| ATX Version | Intel ATX 12V v3.1 |
| Protections | OVP / OPP / SCP / OCP / UVP / OTP / NLO / SIP |
| Certification | CB / CE / FCC / TUV / cTUVus / BSMI / CCC NOM / FCC IC / UKCA / TUV / TUV S-Mark / cTUVus |
| PFC | 0.99 |
| Input Voltage | 100-240V |
| Input Current | 650W: 10A |
| Input Frequency | 47Hz-63Hz |
| DC Output Voltage | +5V | +3.3V | +12V | -12V | +5Vsb |
| Total Output | 650W: +5V/+3.3V :20A, +12V:54.1A, -12V:0.3A, +5Vsb:3A |
| Power Excursion | 650W: 1527W(*up to 235% of the PSU's rated power for 100μs) |
| Operating Temperature | 40°C |
| Fan Size | 120mm FDB Fan |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| Fan Speed | 2400 RPM |
| MTBF | 100K hours at full load |
| ATX 24 Pin Connector | 1 |
| EPS 8 Pin Connector | 2 |
| PCI-E 6+2 Pin Connector | 650W: 2 |
| Molex 4 Pin Connector | 2 |
| 12V-2x6 (12+4) Connector (600W) | 650W: 0 |
| 12V-2x6 (12+4) Connector (450W) | 650W: 1 |
| SATA Connector | 6 |
| Weight |
650W: Product + Cables: 1450g+1320g with Package: 3kg |
| Warranty | 7 years |
