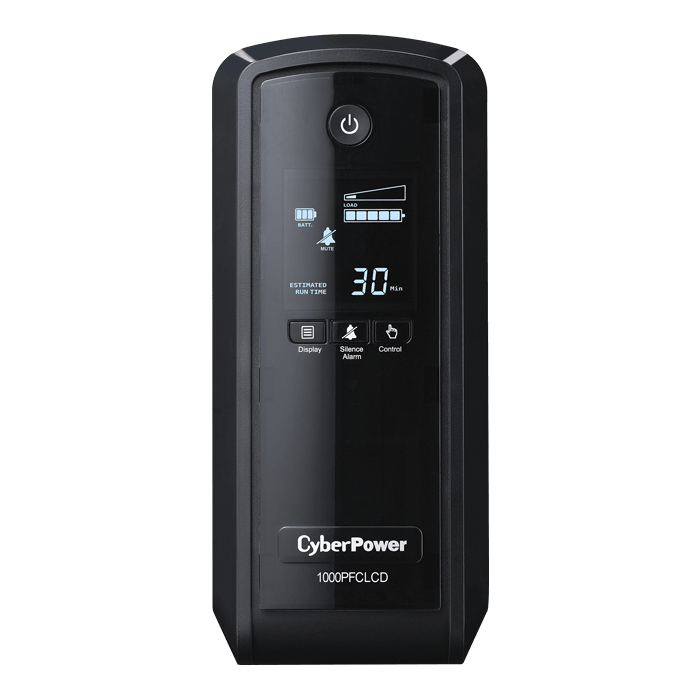

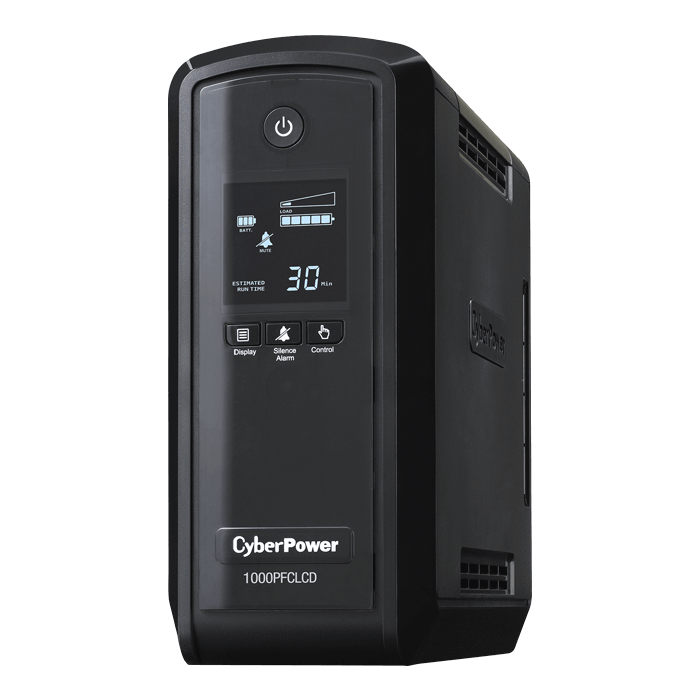

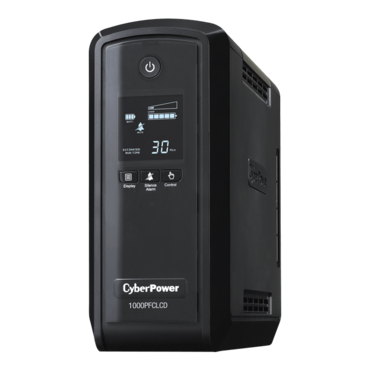

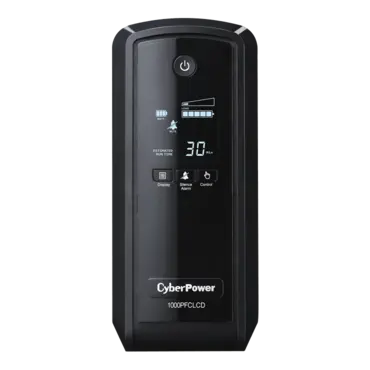

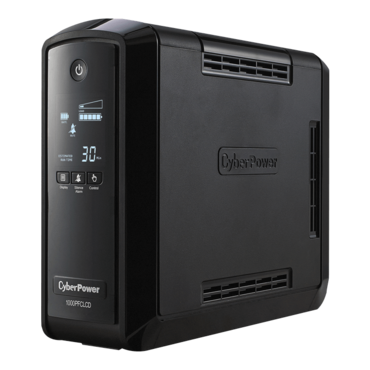

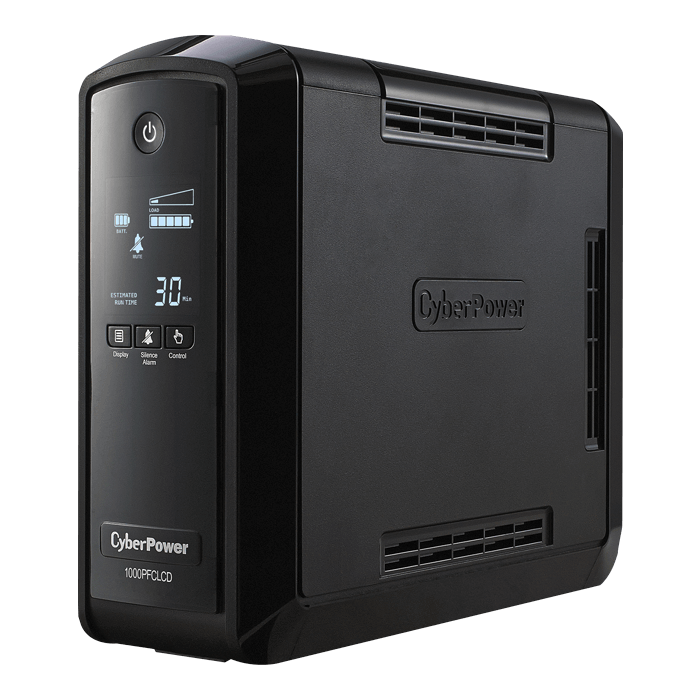

CP1000PFCLCDTAA, LCD, 1000 VA/600 W, Sine Wave, Tower UPS - TAA Compliant
- SKU: 7146864
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: CP1000PFCLCDTAA
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$222.95
- Capacity: 1000 VA / 600 W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 120 VAC ± 5%
- Plug type & cord: NEMA 5-15P, 5 ft. cord

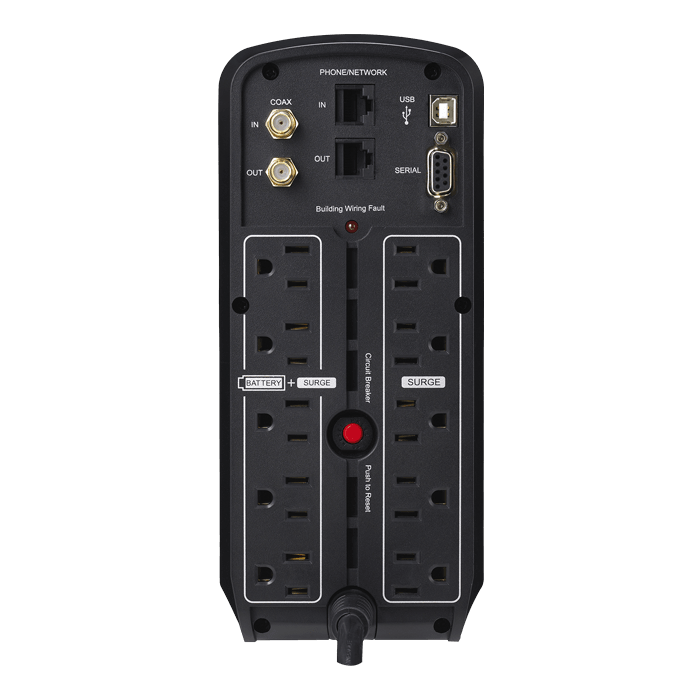

- Outlet types: 10 × NEMA 5-15R
- Communication: USB, Serial
- Data line protection: Telephone, Ethernet, Coaxial
- Management software: PowerPanel® Personal
- ENERGY STAR® qualified: Yes
- Warranty: 3 year
| General | |
| Active PFC Compatible | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Energy Star Certified | Yes |
| UPS Topology | Line Interactive |
| Battery | |
| Battery Quantity | 1 |
| Battery Size | 12 V / 9 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RB1290 |
| Replacement Battery Cartridge Quantity | 1 |
| Runtime at Full Load | 1 min |
| Runtime at Half Load | 8 min |
| Typical Recharge Time | 8 Hours |
| User Replaceable Battery | Yes |
| Input | |
| Circuit Breaker | 15 A |
| Cord Length | 5 ft (1.5 m) |
| Input Frequency Range | 57 Hz – 63 Hz |
| Input Plug Type | NEMA 5-15P |
| Input Voltage Range | 88 VAC – 144 VAC |
| Nominal Input Voltage | 120 VAC |
| Plug Style | Right Angle – 45° Offset |
| Output | |
| Automatic Voltage Regulation | Single Boost |
| On AC WaveForm | Sine Wave |
| On Battery Frequency | 60 Hz ± 1% |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Waveform | Sine Wave |
| Outlet Type | 10 – NEMA 5-15R |
| Outlets – Battery & Surge Protected | 5 |
| Outlets – Surge-Only Protected | 5 |
| Outlets – Total | 10 |
| Output Power Factor | 0.6 |
| Overload Protection |
Internal Circuitry Limiting Circuit Breaker Protected |
| Typical Transfer Time | 4 ms |
| USB Charge Port | Yes |
| USB Charge Port Amperage | 3.1 Amps (Shared) |
| USB Charge Port Quantity | 2 |
| USB Charge Port Type |
1 Type A 1 Type C |
| USB Charge Port Voltage | 5 VDC |
| Under/Over-Voltage Correction | +11.5% |
| VA | 1000 VA |
| Watts | 600 W |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Network Protection RJ45 | 1-in / 1-Out (10/100/1000) + PoE Compatible |
| Surge Suppression (Joules) | 1150 J |
| Management & Communications | |
| Audible Alarms |
Battery Mode Low Battery Overload Fault |
| Emergency Power Off (EPO) Port | No |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators |
Power On Wiring Fault |
| Management Cable | USB Cable |
| Serial Port | 1 Dry Contact |
| Software (Free Download) | PowerPanel® Personal |
| Physical | |
| Color | Black |
| Form Factor | Mini-Tower |
| Material of Construction | Plastic |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 9.91 x 24.64 x 25.91 (cm) |
| Physical Dimensions – (WxHxD) (in) | 3.9 x 9.7 x 10.2 (in) |
| Physical Dimensions – (WxHxD) (mm) | 99 x 246 x 259 (mm) |
| Physical Weight (kg) | 8.16 |
| Physical Weight (lb) | 18.0 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 8.39 |
| Shipping – Weight (lb) | 18.5 |
| Shipping Dimensions – (WxHxD) (cm) | 20.32 x 33.66 x 35.56 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 8.0 x 13.25 x 14.0 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 203.2 x 336.55 x 355.6 (mm) |
| Environmental | |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety |
UL1778 cUL 107.3 FCC DOC Class B |
| Warranty | |
| CEG Amount | $350000 |
| Connected Equipment Guarantee | Lifetime |
| Extended Warranty Option | WEXT5YR-U1B |
| Product Warranty | 3 Year Limited Warranty |
