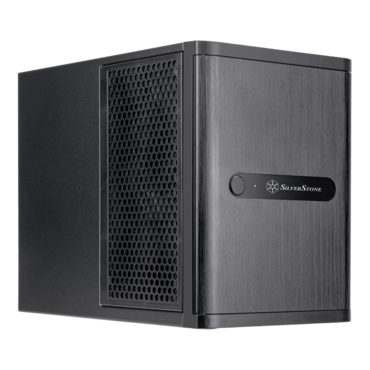

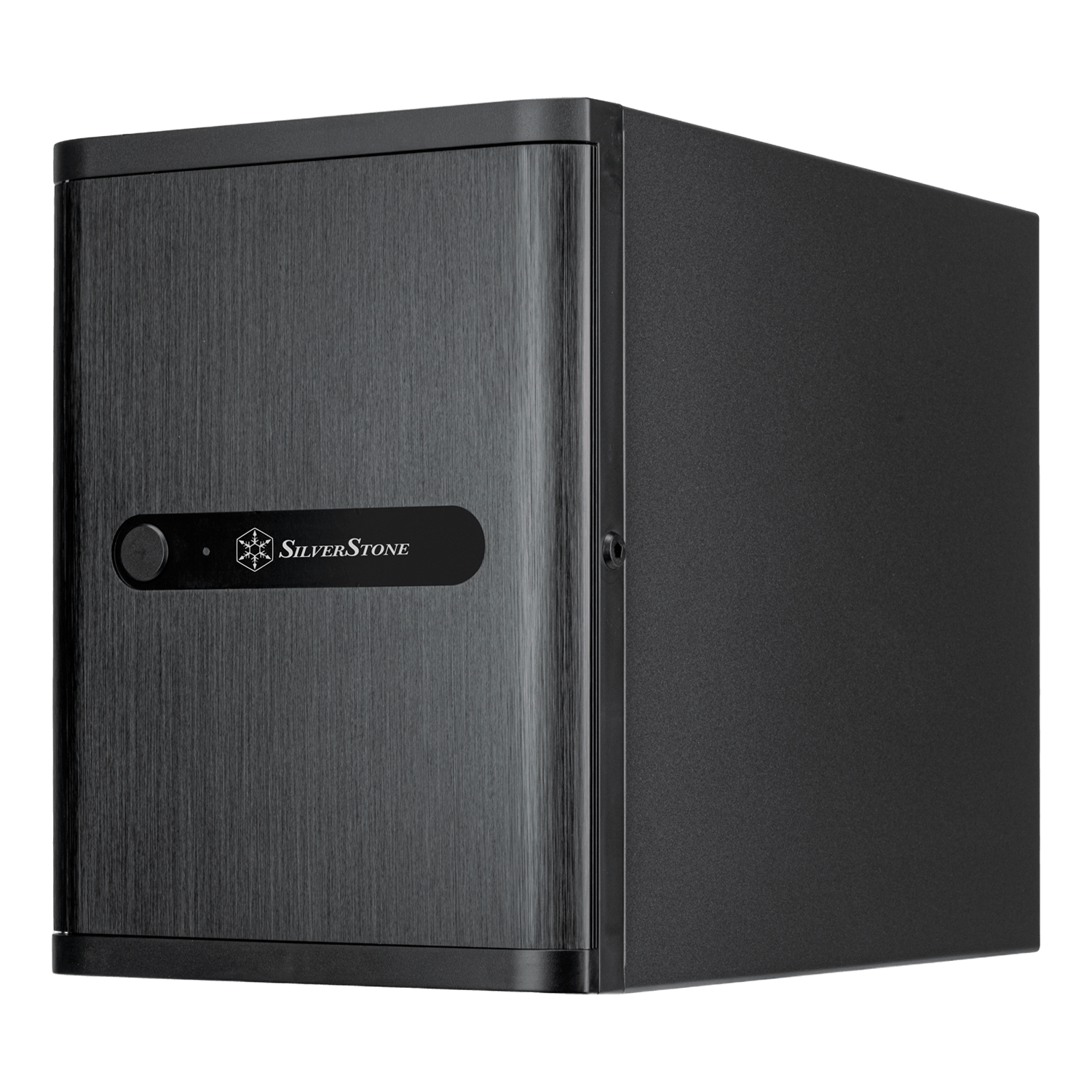

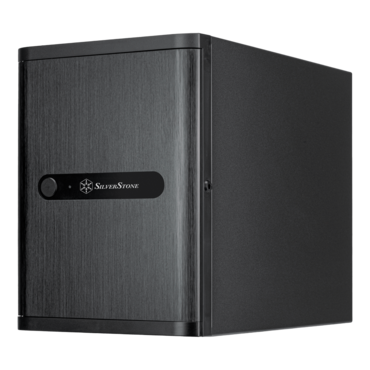

CS240, 4x 2.5" External Bays, No PSU, Mini-ITX / Mini-DTX, Black, Mini Tower Chassis
- SKU: 20401719
- Manufacturer: SILVERSTONE
- MPN: CS240B
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS

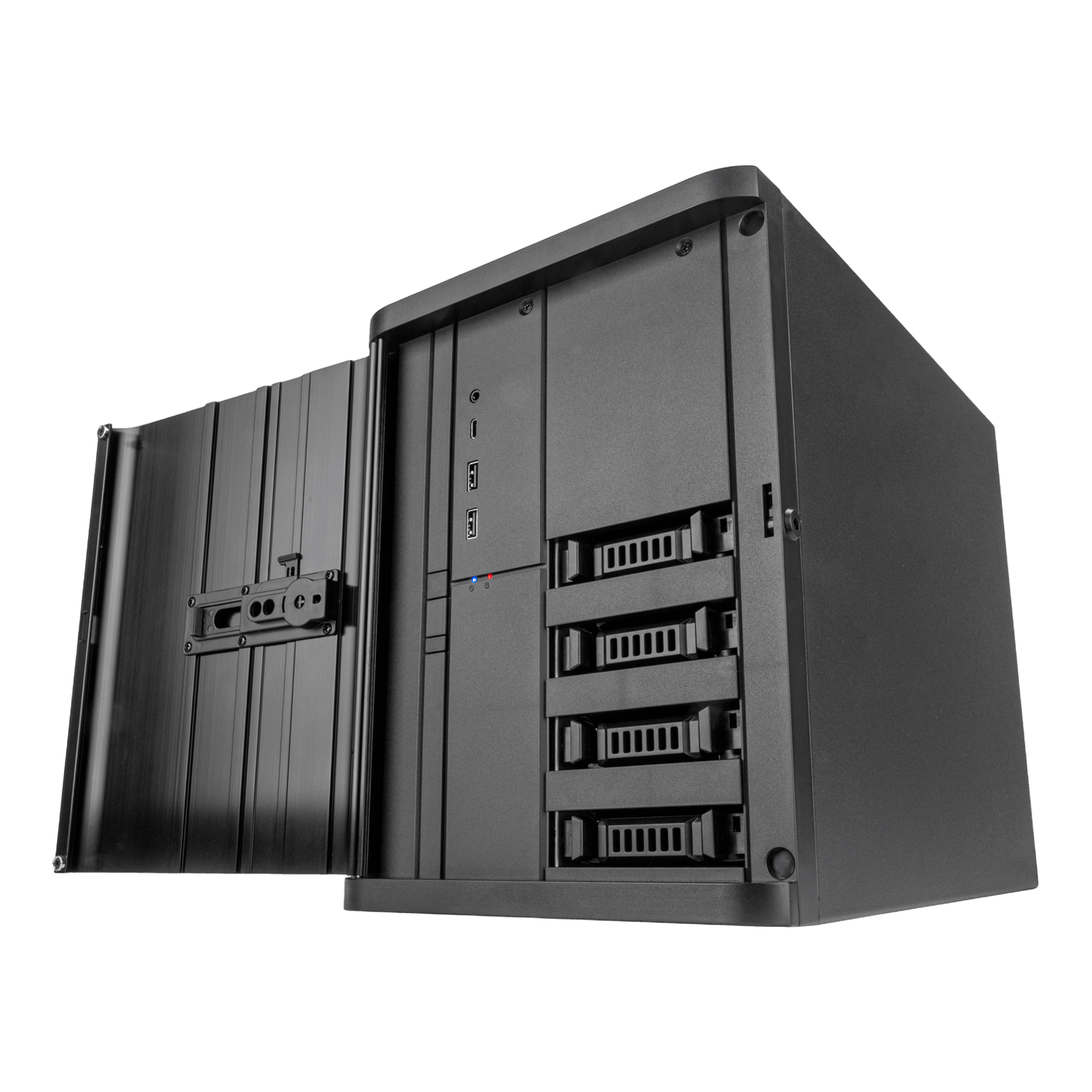

- Supports 4 hot-swappable 2.5" U.2 NVMe / SAS / SATA tri-mode SSDs
- Backplane with SlimSAS 8i connector, supporting PCIe 4.0
- Supports Deep Mini-ITX, Mini-DTX motherboards
- Pre-installed 3 × 120mm fans
- Supports graphics cards up to 300mm, with integrated GPU support bracket
- Supports CPU coolers up to 182mm in height
- Front I/O includes 1 × USB Type-C, 2 × USB 3.0, and 1 × combo audio jack
| Model No. | SST-CS240 |
| Motherboard | Deep mini-ITX, Mini-DTX, Mini-ITX |
| Material | Aluminum front door, plastic front panel, steel |
| Drive Support |
External : 4 × 2.5" NVMe U.2 (SFF-8639) / SAS / SATA SSDs (15mm thickness),
hot-swappable Internal : 1 × 3.5" or 2 × 2.5" drives (15mm thickness) |
| Cooling system |
Rear : 1 x 120mm (1 × 120mm black fan pre-installed) Side : 2 x 120mm or 3 x 80mm (2 × 120mm black fan pre-installed) |
| Radiator support | Rear : 120mm |
| Limitation of CPU cooler | 182mm |
| Expansion Slot | 2 |
| Limitation of expansion card |
Length : 300mm Width : 168mm |
| Power Supply | SFX/SFX-L |
| Limitation of PSU | 140mm |
| Front I/O Port | USB Type-C x 1 USB 3.0 x 2 Combo audio x 1 |
| LED Indicators |
Chassis : Power LED x 1: Blue HDD Access x 1: Red HDD Tray : HDD Access : Blue blinking |
| Dimension |
211mm (W) x 285mm (H) x 360mm (D), 21.65 Liters 8.31" (W) × 11.22" (H) × 14.17" (D), 21.65 Liters |
| Extra |
[1] When using a Deep Mini-ITX motherboard, up to 3 × 80mm fans can be installed on the left
side. [2] Hot-swap functionality is supported but depends on motherboard and add-in card compatibility. [3] Data transfer speeds depend on the storage devices, motherboard or add-in card, and cables used. The motherboard or add-in card must support PCIe bifurcation, allowing PCIe x16/x8 slots to be split into 4 × x4 or 4 × x2 lanes. [4] To connect SAS drives to a SATA motherboard, one of the following conditions must be met; otherwise, the drives will not function: 1. The motherboard natively supports SAS drives (please refer to the motherboard manual). 2. A SAS controller card is installed. 3. The SAS drive supports SATA mode (please check the label on the drive for a SATA symbol or consult the manufacturer’s website). |
