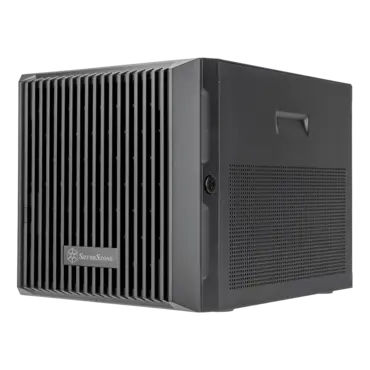

CS340, 4x 3.5"/2.5" External Bays, No PSU, Mini-ITX / Deep Mini-ITX, Black, Mini Tower Chassis
CS340, 4x 3.5"/2.5" External Bays, No PSU, Mini-ITX / Deep Mini-ITX, Black, Mini Tower Chassis
CS340, 4x 3.5"/2.5" External Bays, No PSU, Mini-ITX / Deep Mini-ITX, Black, Mini Tower Chassis
CS340, 4x 3.5"/2.5" External Bays, No PSU, Mini-ITX / Deep Mini-ITX, Black, Mini Tower Chassis

CS340, 4x 3.5"/2.5" External Bays, No PSU, Mini-ITX / Deep Mini-ITX, Black, Mini Tower Chassis

  • SKU: 20489729
  • Manufacturer: SILVERSTONE
  • MPN: CS340
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$328.90
$10.61/mo* with bread pay
Quantity:
  • Supports 4 x 3.5"/2.5" U.2 NVMe / SATA / SAS Tri-Mode hot-swappable drives
  • Backplane equipped with 2 x SlimSAS 8i (SFF-8654) connectors, supporting PCIe 4.0 with transfer speeds up to 64Gbps
  • Supports Mini-ITX and Deep Mini-ITX motherboards, with graphics card compatibility up to 253mm
  • Supports 2 x 80mm front fans
  • Removable motherboard tray design for easy system installation and maintenance
  • Supports Kensington lock, lockable front door, and chassis intrusion detection switch
  • Lockable power button design
  • Front I/O includes 1 x USB Type-C and 2 x USB 3.0 ports
Model No. SST-CS340
Motherboard Mini-ITX,Deep Mini-ITX
Material Steel, Plastic
HDD backplane backplane
  • NVMe U.2 (SFF-8639) x 4, supports up to PCIe 4.0 or SAS 12Gb/s / SATA 6Gb/s [2]
power connector
  • 4-pin peripheral x 1, 15-pin SATA x 1
interface
  • 2 x SlimSAS 8i (SFF-8654), supports up to PCIe 4.0
    or 4 x 7-pin SATA connectors, or SAS primary channel connection [3]
Drive Support External
  • 9.5mm slim ODD x 1 , 2.5" / 3.5" SAS / SATA external hot-swap x 4
Internal
  • 2.5” x 1
Cooling system Front
  • 80mm x 2 (optional)
Rear
  • 120mm x 1 (1 x 120mm fan included)
Internal
  • 60mm x 1 (optional)
    *Rear of drive cage
Limitation of CPU cooler 65mm
Expansion Slot 1
Limitation of expansion card Length
  • 250mm
Width
  • 113mm
Power Supply Flex ATX PSU
Limitation of PSU 235mm
Front I/O Port USB Type-C x 1
USB 3.0 x 2
Front buttons Power reset
LED Indicators Power LED x 1: White
HDD Access x 1: White blinking
UID LED x 1: White
Alarm LED: x 1 Red
LAN LED x 2: Green HDD Tray
  • HDD Power LED: Green
    HDD Access : Blue blinking
Dimension 220mm (W) x 225mm (H) x 300mm (D), 14.85 liters
8.66" (W) x 8.86" (H) x 11.81" (D)
Extra [1] Hot-swapping support depends on motherboard and add-in card compatibility.
[2] Transfer speed depends on the drives motherboard add-in card and cables. The motherboard or add-in card must support PCIe bifurcation to split a PCIe x16/x8 slot into x4x4 or x4x2 configurations.
[3] To use SAS drives with a SATA motherboard one of the following conditions must be met otherwise the drives will not function
1. The motherboard supports SAS drives (refer to motherboard specifications)
2. Install a SAS controller card
3. The SAS drive supports SATA mode (check the label on the drive or manufacturer website)
