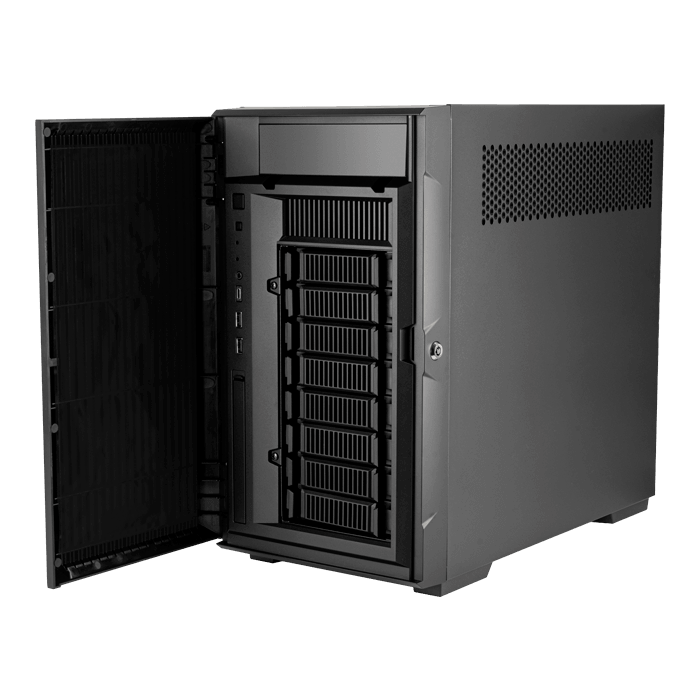

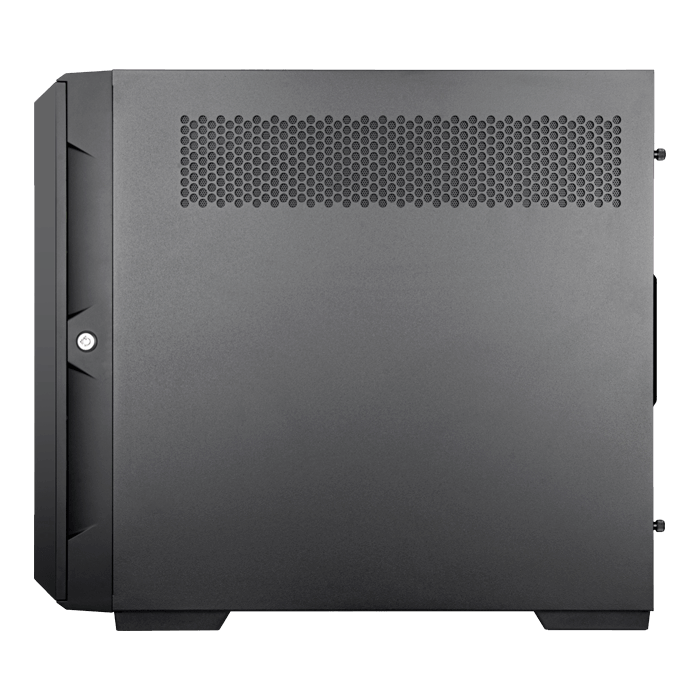

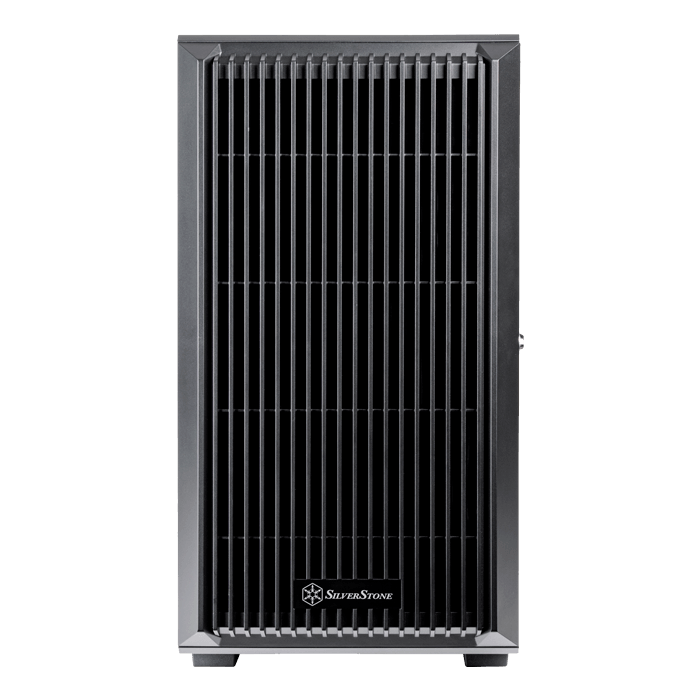

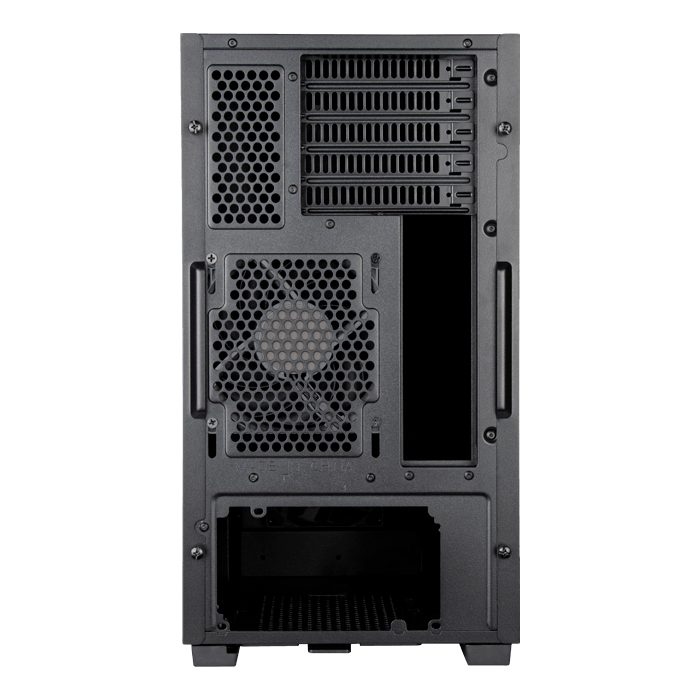

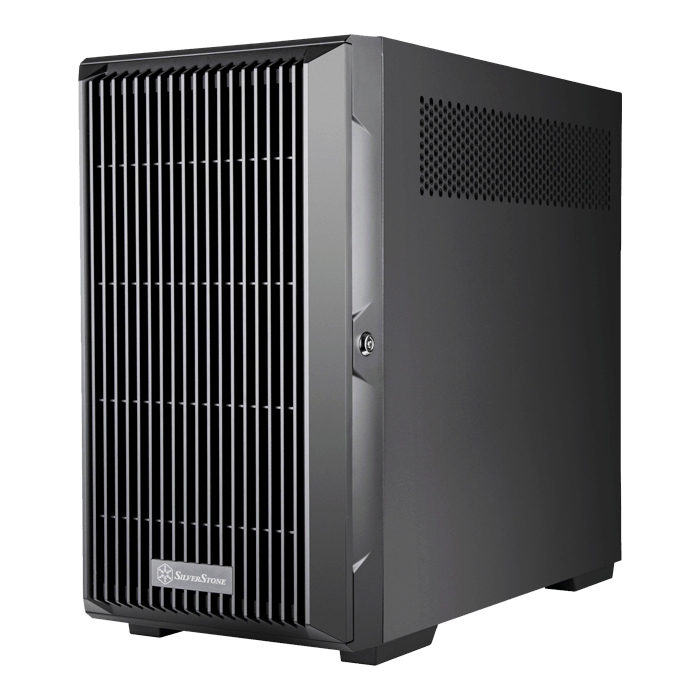

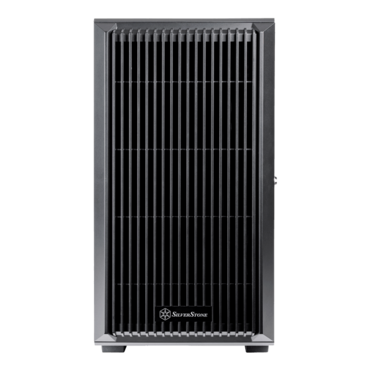

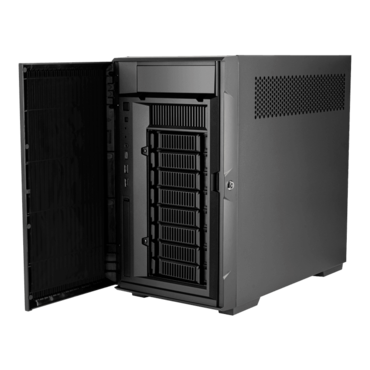

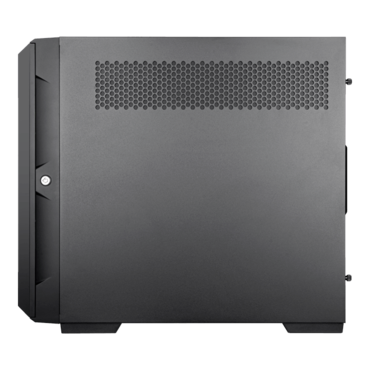

CS382, 8x 3.5"/2.5" Hotswap Bays, No PSU, microATX, Black, Mini Tower Chassis
- SKU: 17101160
- Manufacturer: SILVERSTONE
- MPN: CS382
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$243.79
| Model No. | SST-CS382 | |
| Material | Plastic front door, galvanized steel body | |
| Motherboard | Micro-ATX, Mini-DTX, Mini-ITX | |
| HDD | backplane interface |
8 port x SAS 12Gbit/s* / SATA 6Gbit/s
SATA drive up to 6 Gbit/s (depends on drive speed) |
| Power connector on backplane |
4 pin peripheral x 2, 15 pin SATA x 2 |
|
| Drive bay | External |
2.5” / 3.5” SAS / SATA external hot-swapping x 8 5.25” x 1 9.5mm slim optical drive x 1 |
| Internal |
3.5” x 1 2.5” x 2 |
|
| Cooling system | Rear | 120mm x 1 |
| Top | 120mm / 140mm x 2 (optional | |
| Internal | 92mm x 2 | |
| Radiator support | Rear | 120mm x 1 |
| Top | 120mm / 140mm / 240mm / 280mm x 1** | |
| Limitation of CPU cooler | 168mm | |
| Expansion slot | 5 | |
| Limitation of expansion card | 369mm, width restriction –6.85" (174mm)** | |
| Power supply | Standard ATX (PS2) (optional) | |
| Limitation of PSU | 180mm | |
| Front I/O port |
USB Type-C x 1 USB 3.0 x 2 Combo audio x 1 |
|
| LED Indicators | Chassis |
Power ON: White Accessing: White blinking |
| HDD Tray |
HDD Power LED: Green HDD Access : Blue blinking |
|
| Dimension |
217mm (W) x 405mm (H) x 451mm (D), 39.64 Liters 8.54” (W) x 15.94” (H) x 17.76” (D), 39.64 Liters |
|
| Net weight | 7.3 kg | |
|
* Mini-SAS HD (SFF8643) to SATA 7 pin cable and 12 Gbit/s SAS HD card required for 12 Gbit/s performance (i.e. SilverStone CPS05 & ECS05) * For 280mm radiators, we recommend total thickness of 30mm or less **Expansion slots 3, 4, and 5 may have different length restrictions depending on optical drive installed, please refer to manual for more information. |
||
