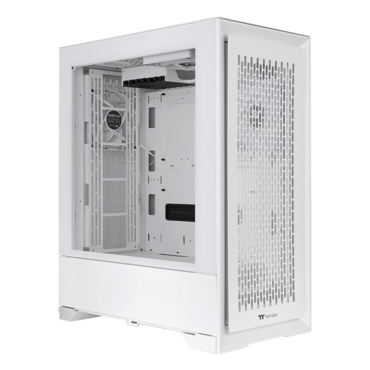

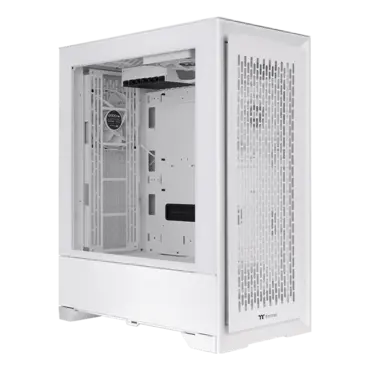

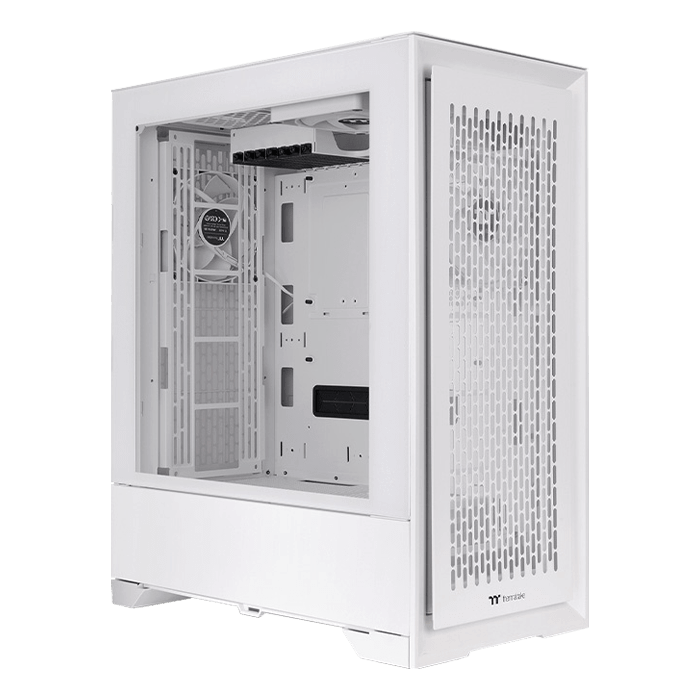

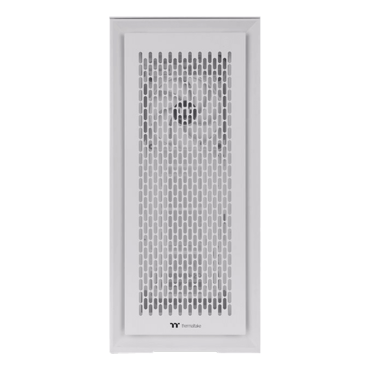

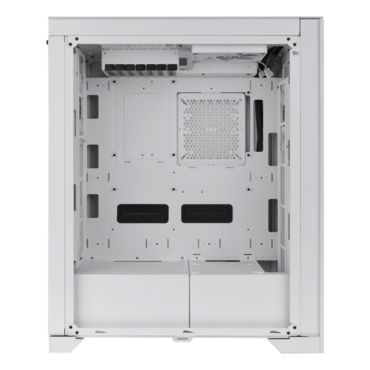

CTE T500 Air Snow, Tempered Glass, No PSU, E-ATX, White, Full Tower Case

Quantity:
  • SKU: 16374818
  • Manufacturer: THERMALTAKE
  • MPN: CA-1X8-00F6WN-00
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$150.10
Quantity:
CTE T500 Air Snow, Tempered Glass, No PSU, E-ATX, White, Full Tower Case

The CTE T500 Air brings the design philosophy of the CTE lineup to a more conventional style Full Tower chassis. Utilizing a single chamber, the CTE T500 Air keeps the 90-degree rotated motherboard to centralized main components of the system for optimal cooling. Able to support up to a 420mm AIO up front and up to a 360mm AIO in the rear, the T500 Air comes preinstalled with three 140mm CT140 fans.

P/N CA-1X8-00F6WN-00
Series CTE
Case Type Full Tower
Dimension (H x W x D) 615 x 275 x 516 mm
(24.21 x 10.83 x 20.31 inch)
Net Weight 15.3 kg / 33.73 lbs.
Side Panel 4mm Tempered Glass x 1
Color White
Material SPCC / ABS
Cooling System Front(intake):
140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1
Top(exhaust):
140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1
(1500rpm, 30.5 dBA) x 1
Rear(intake):
140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1
Drive Bays
-Accessible
-Hidden
4 x 3.5” or 6 x 2.5”
Expansion Slots 7
Motherboards 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 13” (E-ATX)
I/O Port USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
Fan Support Front:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
Top:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Right:
1 x 120mm, 1 x 140mm
Rear:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
Bottom:
1 x 120mm, 1 x 140mm
PSU Cove:
1 x 120mm, 1 x 140mm
Radiator Support Front:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm
Top:
1 x 120mm(AIO only)
Rear:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Clearance CPU cooler max height:
190mm
VGA max length:
385mm
PSU max length:
180mm
