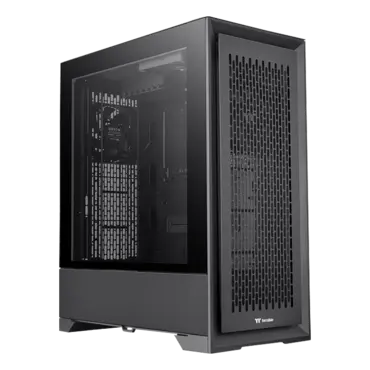

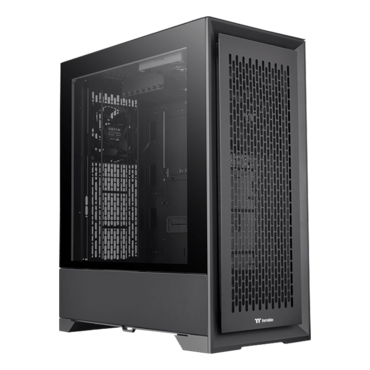

CTE T500 Air, Tempered Glass, No PSU, E-ATX, Black, Full Tower Case
Quantity:
- SKU: 16374814
- Manufacturer: THERMALTAKE
- MPN: CA-1X8-00F1WN-00
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$157.27
CTE T500 Air, Tempered Glass, No PSU, E-ATX, Black, Full Tower Case

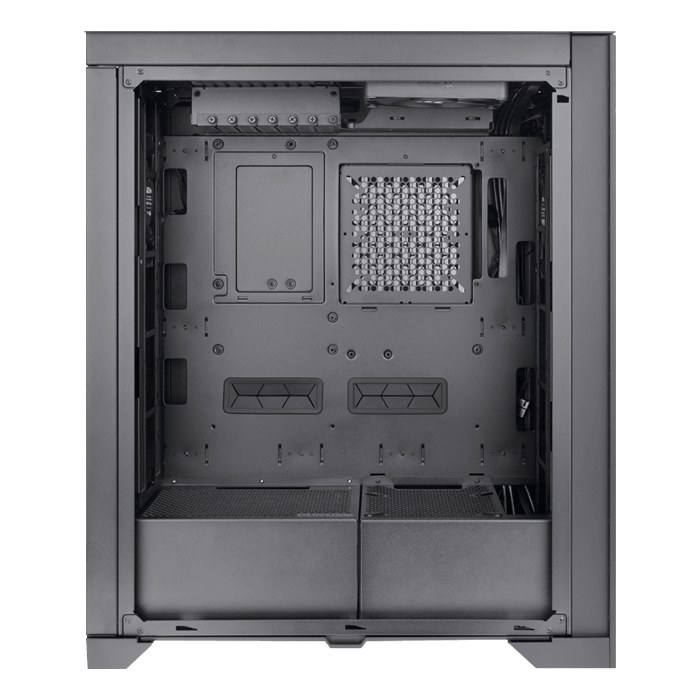

The CTE T500 Air brings the design philosophy of the CTE lineup to a more conventional style Full Tower chassis. Utilizing a single chamber, the CTE T500 Air keeps the 90-degree rotated motherboard to centralized main components of the system for optimal cooling. Able to support up to a 420mm AIO up front and up to a 360mm AIO in the rear, the T500 Air comes preinstalled with three 140mm CT140 fans.
| P/N | CA-1X8-00F1WN-00 |
| Series | CTE |
| Case Type | Full Tower |
| Dimension (H x W x D) | 615 x 275 x 516 mm (24.21 x 10.83 x 20.31 inch) |
| Net Weight | 15.3 kg / 33.73 lbs. |
| Side Panel | 4mm Tempered Glass x 1 |
| Color | Black |
| Material | SPCC / ABS |
| Cooling System | Front(intake): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1 Top(exhaust): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1 (1500rpm, 30.5 dBA) x 1 Rear(intake): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1 |
| Drive Bays -Accessible -Hidden |
4 x 3.5” or 6 x 2.5” |
| Expansion Slots | 7 |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm Top: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right: 1 x 120mm, 1 x 140mm Rear: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm Bottom: 1 x 120mm, 1 x 140mm PSU Cove: 1 x 120mm, 1 x 140mm |
| Radiator Support | Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm Top: 1 x 120mm(AIO only) Rear: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm |
| Clearance | CPU cooler max height: 190mm VGA max length: 385mm PSU max length: 180mm |
