| Technical Specifications |
| Motherboard |
- XL-ATX (325mm x 330mm) [12.8" x 13"]
- SSI-EEB (305mm x 330mm) [12" x 13"]
- eATX (305mm x 267mm) [12" x 10.5"]
- SSI-CEB (305mm x 267mm) [12" x 10.5"]
- ATX (305mm x 244 mm) [12" x 9.6"]
- MicroATX (245 x 245mm) [9.6" x 9.6"]
- FlexATX (229 x 191 mm) [9" x 7.5"]
- Mini-DTX (203mm x 170 mm) [8" x 6.7"]
- Mini-ITX (170mm x 170 mm) [6.7" x 6.7"]
|
| CPU Air Coolers |
- Up to 110mm tall
- RECOMMENDED CPU COOLERS: Noctua D9L, Thermalright SI-100, Thermalright Silver Soul 110, or ID-COOLING IS-67-XT
|
| CPU Liquid Coolers |
- Supports one(1) 240mm liquid cooler, or one(1) 120mm liquid coolers
- Maximum radiator length of 277mm supported
- Case is designed around Asetek OEM AIO coolers
- List of Asetek OEM coolers offered by Sliger
- List of compatible CPU sockets and AIO retention kits
-
Third party AIO cooler compatibility can be checked against
this dimensioned drawing.
- Compatibility with AIO liquid coolers on GPUs is limited by case height.
|
| Dust Filter |
- Includes one(1) washable / reusable dust filter
- 30ppi open cell reticulated polyether filter foam with flame resistant rating, UL94 HF1, UL FILE NO E93229(N)
- Alternate density and/or materials such as aluminum mesh available for OEM projects
|
| Fan Mounting |
- Front
- Two(2) 120mm fan mounting spots, up to 38mm thick
- Four(4) 120mm x 25mm fans when using 360mm radiator with push/pull fan configuration
-
RECOMMENDED 120mm FANS: Noctua A12x25 PWM or Noctua A12x25 Chromax Black, Arctic P12 MAX, Phanteks T30,Corsair RS120 MAX, Lian Li UNI Fan P28, Lian Li UNI Fan SL-Infinity, or any
fan from Dynatron.
- Rear
- Adapters for connecting fans to the PCIe slot can be purchased separately.
|
| GPU / PCIe Cards |
- Eight(8) full height PCIe card slot cutouts
- Maximum card height: 115mm - including power connectors
- Maximum card length with two(2) Noctua A12x25 fans: 375mm
- Maximum card length with Asetek 240mm AIO and two(2) Noctua A12x25 fans: 347mm
- Maximum card length with Asetek 240mm AIO and four(4) Noctua A12x25 fans: 322mm
- Maximum card length with no fans / no AIO cooler: 395mm
- NOTE: Compatibility for GPUs with integrated AIO liquid coolers is limited by case height
|
| 5.25" Bays |
- One(1) 5.25" bay with removable filler blank
- 5.25" to 3.5" adapter available for purchase on the parts tab
|
| Storage |
- One(1) 2.5" SSD up to 15mm thick
- 2.5" SSD is mounted vertically between motherboard IO shield and SFX PSU
- One(1) 2.5" SSD under 5.25" bay
- One(1) 5.25" bay filler blank provides mounting for two(2) 2.5" SSD and one(1) 3.5" HDD
- Sliger recommends use of M.2/NVMe and PCIe based storage on motherboard when possible
- Motherboard PCIe slots can be utilized for M.2 drives via Sabrent PCIe to M.2 or equivalent
- ASUS Hyper M.2 Gen5 PCIe x16 Gen5 to four(4) M.2 Gen5 SSDs
- OWC Accelsior S PCIe x4 to one(1) 2.5-inch SATA SSD
- StarTech PEX4SFF8639U.2 PCIe x4 to one(1) 2.5-inch U.2 NVME SSD
|

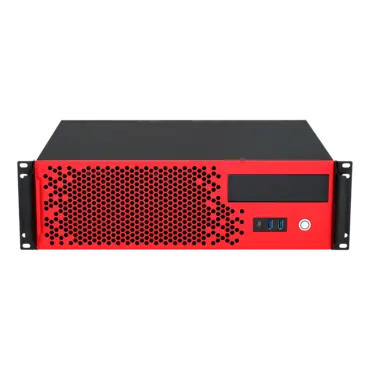

| Front Panel I/O |
- One(1) USB 3.2 Type C 10Gbps Port
- Two(2) USB 3.0 Type A Ports
- One(1) 16mm Momentary Power Button with integrated Power Status LED (Ring Shape, White)
|
| Power Supply |
- SFX or SFX-L form factor
- RECOMMENDED POWER SUPPLIES: Cooler Master V1100 SFX Platinum 1100W, CORSAIR SF1000 1000W, Seasonic FOCUS SPX-750 750W, FSP Dagger Pro 850W, FSP Dagger Pro 650W, FSP SFX Pro 450W
|
| Rack Rails |
- General Devices C300-S Series
- Rack Rails are not included by default, must be purchased on the configuration or parts page.
- Brand Compatibility
- Brands such as iStarUSA TC Rails are natively compatible.
- Please contact our support team for any compatibility questions.
|
| Warranty |
- Case and Rack Rails
- 5 Year Warranty
- Liquid Coolers & Fans
- 3 Year Warranty
- Please see our warranty policy for additional conditions, exclusions, and limitations.
|
| Rev Control |
- 1.0 (4/18/22 - **/**/**)
- Initial Release
|

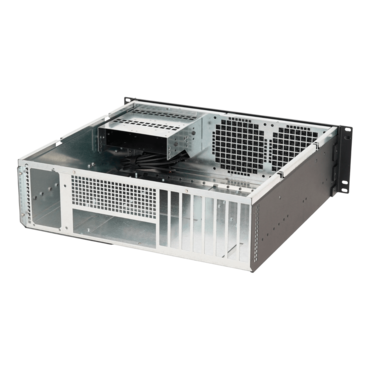

| Case Mechanicals |
| Material |
- Chassis
- ASTM-A-653 G30 Zero Spangle 20 Gauge Galvanized Steel
- Front Panels
- ASTM-A-653 G30 Zero Spangle 18 Gauge Galvanized Steel
- Rack Ears
- ASTM-A-653 G30 Zero Spangle 14 Gauge Galvanized Steel
|
| Finish |
- Semi-gloss fine texture powder coat finish
- Powder coat is an outdoor architectural grade polyester epoxy blend
- Compliant with SAE AMS-STD-595 / FED-STD-595 color number 27038 (ANA 514)
- Custom powder coat finishes are available, additional labor/material charges and 10 unit MOQ will apply.
- Unpainted chassis, panels, or parts available on request (for DIY paint jobs)
|
| Branding |
- Case is unbranded on interior and exterior of chassis.
- Optional logo screen printing (full color) on front panel for business customers, MOQ 10 units
|
| Outside Dimensions |
- 17.04" x 17.00" x 3U (5.22") [DxWxH]
- 433mm x 432mm x 132.5mm [DxWxH]
- Depth from front rack post is 16.89" [429mm]
|
| Weights |
- Chassis
- 16.25lbs [7.37kg]
- Rack Slide Kits
- GDRAIL-14XX - 5.3lbs [2.4kg]
- GDRAIL-20XX - 7.5lbs [3.4kg] - Will Ship In Separate Box
- GDRAIL-26XX - 8.75lbs [3.97kg] - Will Ship In Separate Box
- Fans
- Two(2) fans - 1.4lbs [.64kg] total - .7lbs per fan
- Four(4) fans - 2.8lbs [1.27kg] total
- Coolers
- Asetek 624S-M2 240mm AIO - 1.6lbs [.73kg]
- Retention kits - .25lbs [.11kg]
- Packaging Materials (Box, Tape, Foam Corners)
- 3.25lbs [1.47kg]
|
| Shipping |
- 20.5" x 20.5" x 9.5" (Shipping Box Outside Dimensions)
- 20" x 20" x 9" (ID)
- Shipping box is ECT52, Double Wall, Kraft Brown
- Standard SLIGER branded tape, optional unbranded kraft brown tape for business customers
|
