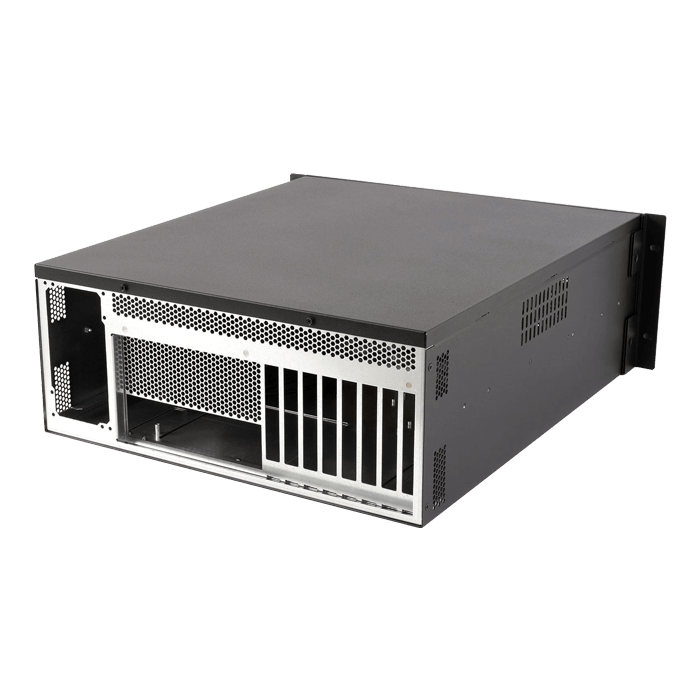

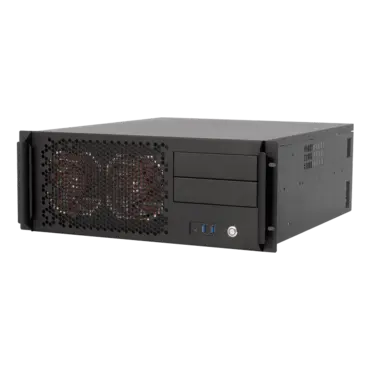

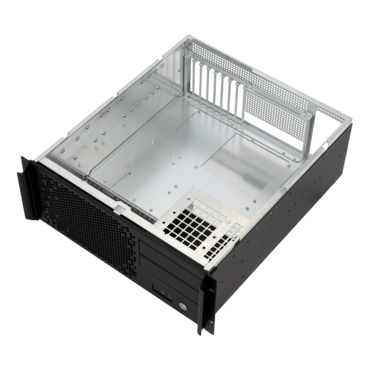

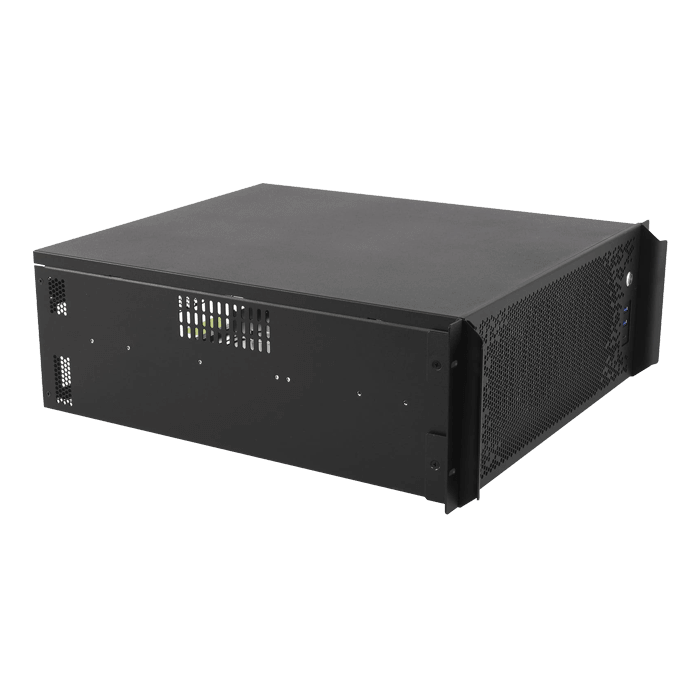

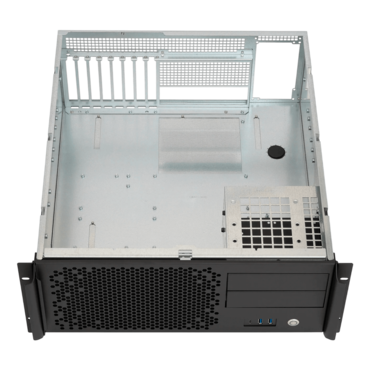

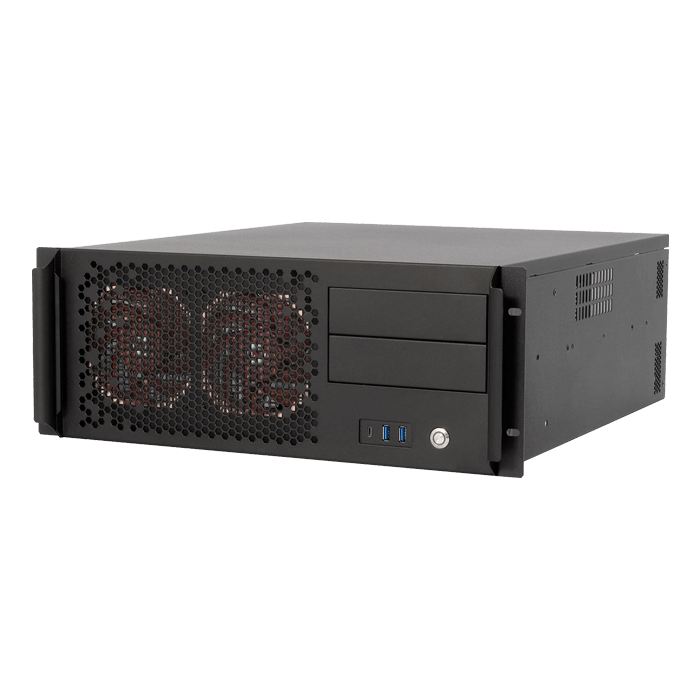

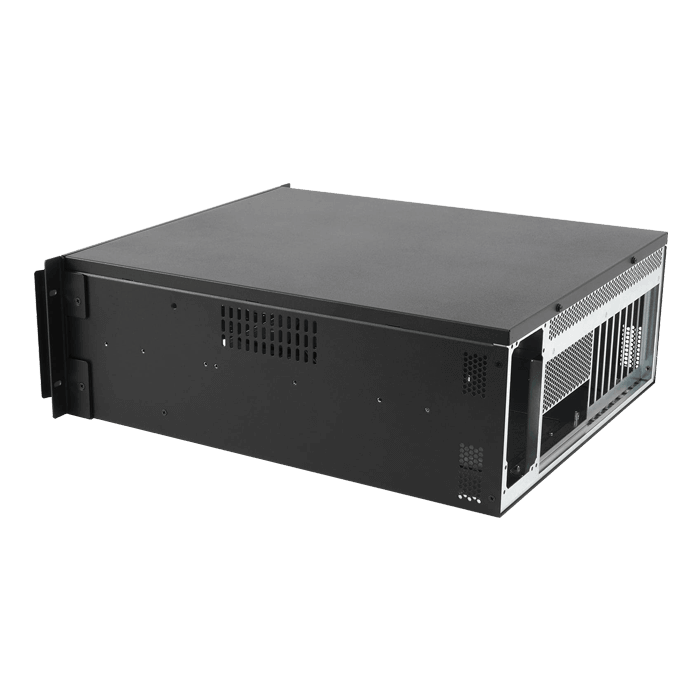

CX4200e 4U 20in Rackmount Chassis - EATX and 240mm AIO Support with 5.25" bays

Quantity:
  • SKU: 15230588
  • Manufacturer: Sliger
  • MPN: CX4200e
  • Availability: LOW STOCK
Starting At
$327.60
Quantity:
  • Supports SSI-EEB, SSI-CEB, EATX, ATX motherboards and more
  • Two front mounted 120mm fans for silent airflow
  • Air cooling with CPU air coolers up to 158mm tall
  • Liquid cooling support for 1x 240mm or 2x 120mm AIOs
  • 2x 5.25" bays for removable media
  • ATX power supplies
  • Manufactured in the USA
Motherboard XL-ATX (325mm x 330mm) [12.8" x 13"]
SSI-EEB (305mm x 330mm) [12" x 13"]
SSI-CEB (305mm x 267mm) [12" x 10.5"]
EATX (up to 325mm x 330mm) [up to 12.8" x 13"]
ATX (305mm × 244 mm) [12" × 9.6"]
MicroATX (245 x 245mm) [9.6" × 9.6"]
FlexATX (229 × 191 mm) [9" × 7.5"]
Mini-DTX (203mm × 170 mm) [8" × 6.7"]
Mini-ITX (170mm × 170 mm) [6.7" × 6.7"]
GPU / PCIe Cards 8x full height PCIe card slot cutouts
Maximum card height: 158mm
Maximum card length: 450mm (with 25mm thick front fans)
Optional card retention bar
5.25" Bays 2x 5.25" bays with filler blanks
each 5.25" bay filler blank allows mounting 2x 2.5" SSD and 1x 3.5" HDD
Storage Case is designed for use of M.2 storage on motherboard or via PCIe M.2 RAID cards
Each 5.25" bay filler blanks provides mounting for 2x 2.5" SSD and 1x 3.5" HDD
Max of 2x 3.5" HDD and 4x 2.5" SSD when not using any 5.25" devices
Front Panel I/O 1x USB C 10Gbps Port
1x USB 3.0 Ports
1x Momentary Switch / Power Status LED (Ring Shape, White)
Power Supply ATX
Maximum of 250mm length with 3.5" HDD bracket installed
Fan Mounting Front
3x 120mm fans
CPU Air Coolers up to 158mm tall
Noctua NH-D12L recommended
CPU Liquid Coolers 1x 240mm liquid cooler
or
2x 120mm liquid coolers
120mm AIOs must be positioned vertically (tubes at top)
Custom loops supported, contact us for fitment checks!
Material Chassis
ASTM-A-653 G30 Zero Spangle 20 Gauge Galvanized Steel
Front Panels
ASTM-A-653 G30 Zero Spangle 18 Gauge Galvanized Steel
Rack Ears
ASTM-A-653 G30 Zero Spangle 14 Gauge Galvanized Steel
Finish Fine texture powder coated chassis and panels
Unpainted chassis, panels, or parts available on request (for DIY paint jobs)
Optional custom powder coat finishes, MOQ 10 units
Branding Case is unbranded on interior and exterior of chassis.
Optional logo screen printing (full color) on front panel for business customers, MOQ 10 units
Outside Dimensions 19.89" x 17.00" x 4U (6.96") [DxWxH]
505mm x 432mm x 176.75mm [DxWxH]
Depth is measured from back side of rack ear
Weights Chassis
Rack Slide Kits
Packaging Materials (Box, Tape, Foam Corners)
Shipping Box Dimensions 26" x 21" x 11"
Double Wall
Rack Rails Sliger PM-Series Ball Bearing Slides
General Devices C300-S Series
