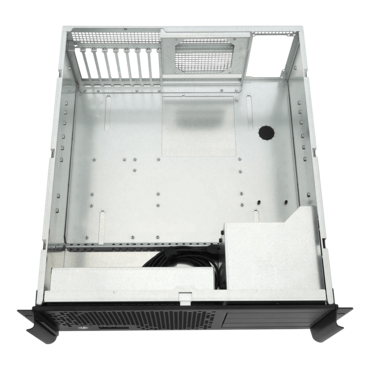

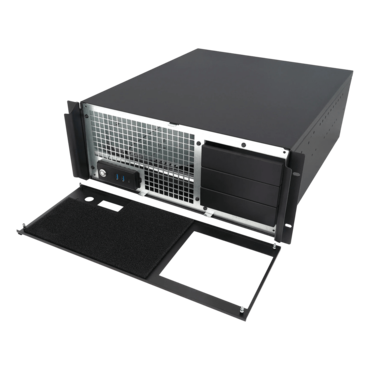

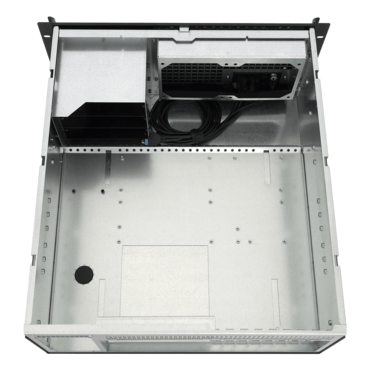

CX4200f, 20" 4U Rackmount Chassis, ATX PSU Support, 240mm AIO Support, 3x 5.25", 2x 2.5", Black

CX4200f, 20" 4U Rackmount Chassis, ATX PSU Support, 240mm AIO Support, 3x 5.25", 2x 2.5", Black

SKU: 20243408
Manufacturer: Sliger
MPN: CX4200f
Availability: USUALLY SHIPS WITHIN 1-3 WEEKS

Price

$418.60

$13.51/mo* with

3x External 5.25" Bays with 2x Internal 2.5" SSD mounts
Supports EATX, SSI-EEB, and XL-ATX motherboards up to 13" deep
ATX PSU compatible, options for redundant PSU models available
Liquid cooling support up to 1x 240mm AIO; supports air coolers up to 153mm tall
Mounts up to 5x 120mm fans: 2x or 4x (push/pull) Front, 1x Rear Exhaust
Made in USA with US materials

Motherboard	Mini-ITX (L x W: 170mm x 170mm) [6.7" x 6.7"] Mini-DTX (L x W: 203mm x 170mm) [8" x 6.7"] FlexATX (L x W: 229mm x 191mm) [9" x 7.5"] MicroATX (L x W: 245mm x 245mm) [9.6" x 9.6"] ATX (L x W: 305mm x 244mm) [12" x 9.6"] SSI-CEB (L x W: 305mm x 267mm) [12" x 10.5"] EATX (L x W: 305mm x 267mm) [12" x 10.5"] SSI-EEB (L x W: 305mm x 330mm) [12" x 13"] XL-ATX/EATX (L x W: 325mm x 330mm) [12.8" x 13"]
CPU Air Coolers	Max Height: 153mm RECOMMENDED CPU COOLERS Noctua D9L Thermalright SI-100 Thermalright Silver Soul 110 ID-COOLING IS-67-XT
CPU Liquid Coolers	One (1) 120mm radiator Up to 1x 120mm liquid cooler One (1) 240mm radiator Maximum radiator length of 277mm supported NOTE: Case is designed around Asetek OEM AIO coolers. Compatibility with AIO liquid coolers on GPUs is limited by case height.
Filter Foam	Includes one (1) washable / reusable dust filter 30 ppi open cell reticulated polyether filter foam with flame resistant rating, UL94 HF1, UL FILE NO E93229(N) Alternate density and/or materials such as aluminum mesh available for OEM projects
Fan Mounting	Front Mounting for two (2) 120mm fans Two(2) 120mm fan mounting spots, up to 38mm thick Four(4) 120mm fan mounting spots, up to 38mm thick when using 240mm radiator with push/pull fan configuration Mounting for four (4) 120mm fans Four(4) 120mm fan mounting spots, up to 38mm thick when using 240mm radiator with push/pull fan configuration RECOMMENDED 120mm FANS Noctua A12x25 PWM Noctua A12x25 Chromax Black Arctic P12 MAX Phanteks T30 Corsair RS120 MAX Lian Li UNI Fan P28 Lian Li UNI Fan SL-Infinity Any fan from Dynatron Rear Mounting for one (1) 120mm fan Optional bracket for one(1) 120mm fan over motherboard IO shield Bracket available through "Configure" or "Parts" tab of applicable chassis models Optional bracket for one(1) 120mm fan blowing down onto PCIe cards Bracket available through "Parts" tab of applicable chassis models
GPU / PCIe Cards	Eight (8) Full height PCIe card slot cutouts 8x full height PCIe card slots Maximum card height: 158mm (including power connectors) Maximum card length with 2x 25mm thick front fans: 398mm Maximum card length with Asetek 240mm AIO and 2x 25mm thick front fans: 371mm Maximum card length with Asetek 240mm AIO and 4x 25mm thick front fans: 347mm Total Internal Depth: 424mm Thickness of radiator + thickness of case fans + GPU length must equal less than 424mm total.
Storage	Two (2) 2.5" drives
5.25" Bays	Three (3) 5.25" drives 3x 5.25" bays with removable filler blanks 5.25" to 3.5" adapter available for purchase on the parts tab 5.25" bay filler blank provides mounting for two(2) 2.5" SSD and one(1) 3.5" HDD
Front Panel I/O	One (1) Momentary Switch / Power Status LED (Ring Shape, White) Two (2) USB 3.0 Type A Port One (1) USB 3.2 Type C 10Gbps Port
Power Supply	One (1) ATX power supply Maximum length 268mm - including connectors. OR One (1) CRPS power supply Redundant Power - ATX form factor Recommended Models:FSP Twins Pro 900W; or the identical / rebadged Silverstone Gemini 900W Retail CRPS PSU Optional adapter bracket kit for installing 2U CRPS power supplies is available on request. Recommended Models:SilverStone Gemini 800W 2U CRPS; or Athena Power 1200W Built-To-Order 2U CRPS PSUs Available up to 2400W from FSP Group or Zippy Power
Rack Rails	General Devices C300-S Series Rack Rails are not included by default, must be purchased on the configuration or parts page. Other Brand Compatibility Brands such as iStarUSA TC Rails are natively compatible. Please contact our support team for any compatibility questions.
Warranty	Case 5 Years Chassis, USB cables, Power Button(s), Power Cable(s) 5 Years Liquid Coolers & Fans 3 Years Please see our warranty policy for additional conditions, exclusions, and limitations. Warranty Policy Rack Rails 3 Years
Chassis Weight	23.5 lbs [10.66 kg]
Chassis Outer Dimensions	20" x 17" x 6.96" [DxWxH] 508.00mm x 431.80mm x 176.78mm [DxWxH]
Chassis Volume	38.90 L
Rack Slide Kits	Rack Slide Kits - All Rail Kits Will Ship In Separate Box GDRAIL-14XX - 6lbs [2.72kg] GDRAIL-20XX - 7.5lbs [3.4kg] GDRAIL-26XX - 8.75lbs [3.97kg]
Fans	.7lbs per fan Two(2) fans - 1.4lbs [.64kg] total Four(4) fans - 2.8lbs [1.27kg] total
Coolers	Liquid Coolers Asetek 612X-M2 120mm AIO - 1.7lbs [.77kg] Asetek 624S-M2 240mm AIO - 1.6lbs [.73kg] Retention kits - .25lbs [.11kg]
Brackets	Fan Brackets Rear Fan - .25lbs [.11kg] Rear Fan w/ A12x25 - .95lbs [.43kg]
Packaging Materials	Packaging Materials (Box, Tape, Foam Corners) 4.5lbs [2.04kg] Shipping Box Outside Dimensions 20.5" x 26.5" x 11.5" Shipping box is ECT52, Double Wall, Kraft Brown Standard SLIGER branded tape, optional unbranded kraft brown tape for business customers
Product Lifecycle	Planned availability through 2032 Extended availability beyond 8 years as built-to-order(BTO) with a 25 unit MOQ
EMI / Safety	Case cannot be certified as a standalone item. Certifications must be sought as a fully integrated system. Contact us before using case for FCC, CE, UL, IEC, or other safety / regulatory compliance. Alternate vent sizes, brackets, EMI springs, and/or powder coat masking, may be required depending on certifications sought. UL listed wire, fans, coolers, and materials where possible
Industry Standards	19-inch rack standard Electronic Industries Alliance EIA-310-D International Electrotechnical Commission IEC 60297-1 / IEC 60297-3-100 Consumer Electronics Association CEA-310-E Deutsches Institut für Normung DIN 41494
Environmental	Compliant with RoHS Directive 2002/95/EC, 2015/863 RoHS2, RoHS3 (EU) with all applicable exemptions Regulation (EC) No 1907/2006 Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Compliant for all Substances of Very High Concern (SVHC) Conflict–Free Sourcing Initiative (CFSI) with Conflict-Minerals Report (CMRT) available upon request Compliant with US EPA PBT Section 6 Toxic Substances Control Act (TSCA)
Import / Export	Harmonized Tariff Schedule (HTS) / HS Schedule B 8473.30.0002 - COMPUTER CASES AND ACCESSORIES Export Control Classification Number [ECCN] EAR99 LOW-TECHNOLOGY CONSUMER GOODS Country of Origin United States of America "Made in USA" per Federal Trade Commission (FTC) subchapter C title 16 Code of Federal Regulations Part 323 TAA (Trade Agreements Act) Compliant for GSA Schedules, IDIQ contracts, and DoD contracts Compliant with Section 889 of Federal Acquisition Regulation (FAR) of National Defense Authorization Act (NDAA)
