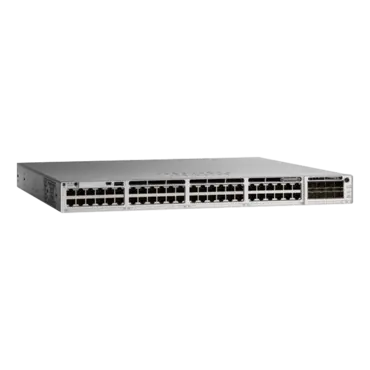

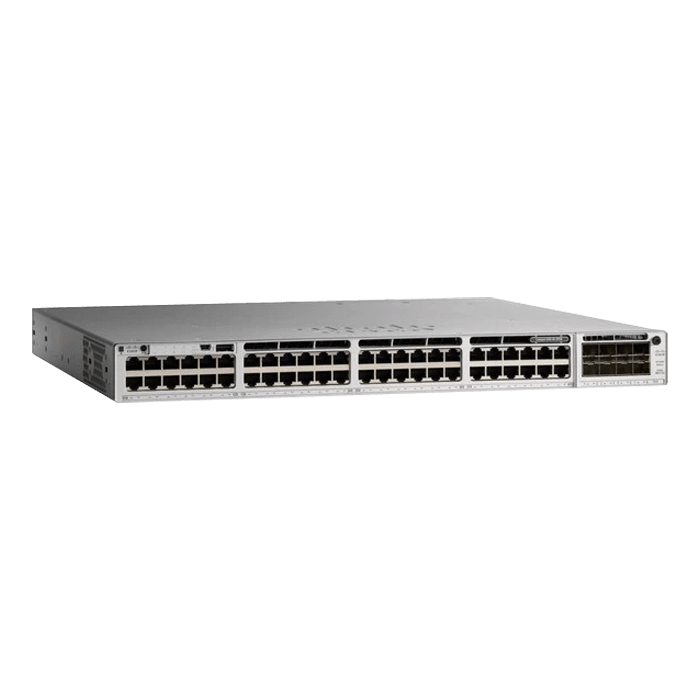

Catalyst C9200-48T-E, 1U, 48 x RJ45, 10/100/1000Mbps, Managed Ethernet Layer 3 Switch
Quantity:
- SKU: 13719763
- Manufacturer: CISCO
- MPN: C9200-48T-E
- Availability: CONTACT US
Starting At
$2,922.49
| Model | C9200-48T-E | |
| Downlinks total 10/100/1000 or PoE+ copper ports | 48 ports data | |
| Uplink configuration | Modular uplink options | |
| Default primary AC power supply | PWR-C6-125WAC | |
| Fans | FRU redundan | |
| Software | Network Essentials | |
| Stacking bandwidth | 160 Gbps | |
| DRAM | 4 GB | |
| Flash | 4 GB | |
| Switching capacity | 176 Gbps | |
| Forwarding rate | 261.9 Mpps | |
| Chassis Dimensions |
1.73 x 17.5 x 13.8 in 4.4 x 44.5 x 35.0 cm |
|
| C9200-48T-E Specification | ||
| Downlinks total 10/100/1000 or PoE+ copper ports | 48 ports data | |
| Uplink configuration | Modular uplink options | |
| Default primary AC power supply | PWR-C6-125WAC | |
| Fans | FRU redundant | |
| Software | Network Essentials | |
| Chassis Dimensions |
1.73 x 17.5 x 13.8 in 4.4 x 44.5 x 35.0 cm Virtual Networks |
4 |
| Stacking bandwidth | 160 Gbps | |
| Total number of MAC addresses | 32,000 | |
| Total number of IPv4 routes (ARP plus learned routes) | 14,000 (10,000 direct routes and 4,000 indirect routes) | |
| IPv4 routing entries | 4,000 | |
| IPv6 routing entries | 2,000 | |
| Multicast routing scale | 1,000 | |
| QoS scale entries | 1,000 | |
| ACL scale entries | 1,600 | |
| Packet buffer per SKU | 6 MB buffers for 24- or 48-port Gigabit Ethernet models | |
| Flexible NetFlow (FNF) entries | 16,000 flows on 24- and 48-port Gigabit Ethernet models | |
| DRAM | 4 GB | |
| Flash | 4 GB | |
| VLAN IDs | 4096 | |
| Total Switched Virtual Interfaces (SVIs) | 1000 | |
| Jumbo frames | 9198 bytes | |
| Wireless bandwidth per switch | Up to 48 Gbps on 24-port and 48-port Gigabit Ethernet model | |
| Switching capacity | 176 Gbps | |
| Forwarding rate | 261.9 Mpps | |
| Mean time between failures (hours) | 571,440 | |
