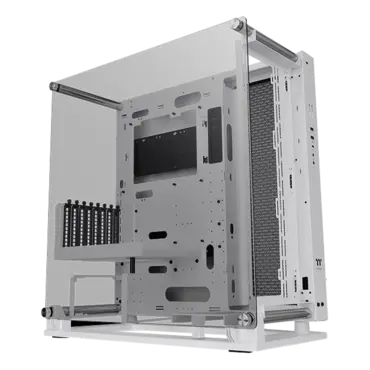

The new open frame chassis of the iconic Core P series, the Core P3 TG Pro Snow (CA-1G4-00M6WN-09), is an upgraded version of our beloved Core P3 TG. The chassis includes an additional fan bracket, modernized I/O ports, redesigned base and an improvement on the M/B side layout which provides plenty of possibilities for advanced hardware.
P/N | CA-1G4-00M6WN-09 |
SERIES | Core |
CASE TYPE | Mid Tower |
DIMENSION (H X W X D) | 535 x 268 x 500 mm (21.06 x 10.55 x 19.69 inch) |
NET WEIGHT | 12.5 kg / 27.6 lbs. |
SIDE PANEL | 4mm Tempered Glass x 1 |
COLOR | White |
MATERIAL | SPCC |
EXPANSION SLOTS | 8 |
MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 10.5” (E-ATX) |
I/O PORT | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
PSU | Standard PS2 PSU (optional) |
FAN SUPPORT | Right (M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm Bracket (front or top): 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm |
RADIATOR SUPPORT | Right (M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm Bracket (front or top): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm |
CLEARANCE | CPU cooler height limitation: 180mm VGA length limitation: 330mm(With reservoir) 450mm(Without reservoir) PSU length limitation: 200mm |
