Core P3 TG Pro, Tempered Glass, No PSU, ATX, Black, Mid Tower Case

Quantity:
  • SKU: 15221764
  • Manufacturer: THERMALTAKE
  • MPN: CA-1G4-00M1WN-09
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$150.10
Quantity:

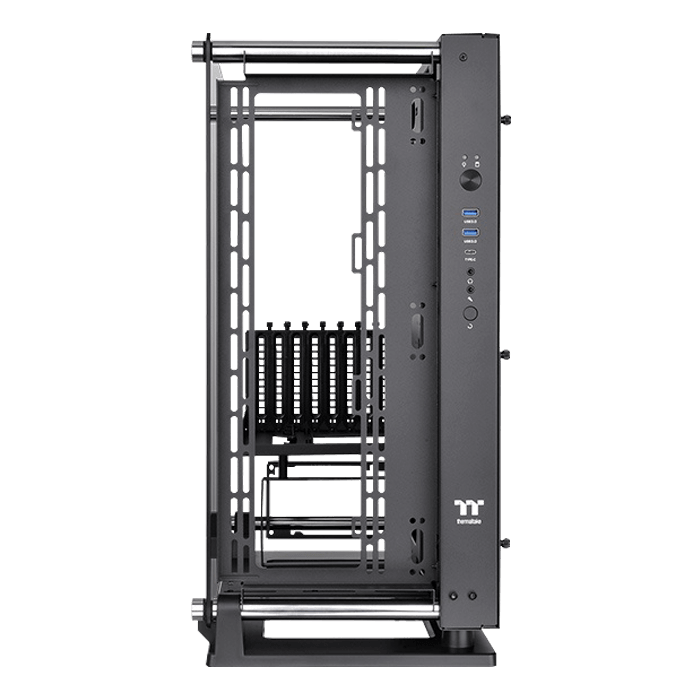

    The new open frame chassis of the iconic Core P series, the Core P3 TG Pro (CA-1G4-00M1WN-09), is an upgraded version of our beloved Core P3 TG. The chassis includes an additional fan bracket, modernized I/O ports, redesigned base and an improvement on the M/B side layout which provides plenty of possibilities for advanced hardware.
P/N CA-1G4-00M1WN-09
SERIES Core
CASE TYPE Mid Tower
DIMENSION (H X W X D) 535 x 268 x 500 mm
(21.06 x 10.55 x 19.69 inch)
NET WEIGHT 12.5 kg / 27.6 lbs.
SIDE PANEL 4mm Tempered Glass x 1
COLOR Black
MATERIAL SPCC
EXPANSION SLOTS 8
MOTHERBOARDS 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 10.5” (E-ATX)
I/O PORT USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
FAN SUPPORT Right (M/B Side):
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
Bracket (front or top):
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
RADIATOR SUPPORT Right (M/B Side):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
Bracket (front or top):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
CLEARANCE CPU cooler height limitation:
180mm
VGA length limitation:
330mm(With reservoir)
450mm(Without reservoir)
PSU length limitation:
200mm
