Core P3 TG Tempered Glass, No PSU, ATX, Black, Mid Tower Case

  • SKU: 12116706
  • Manufacturer: THERMALTAKE
  • MPN: CA-1G4-00M1WN-06
Starting At
Core P3 TG Tempered Glass, No PSU, ATX, Black, Mid Tower Case

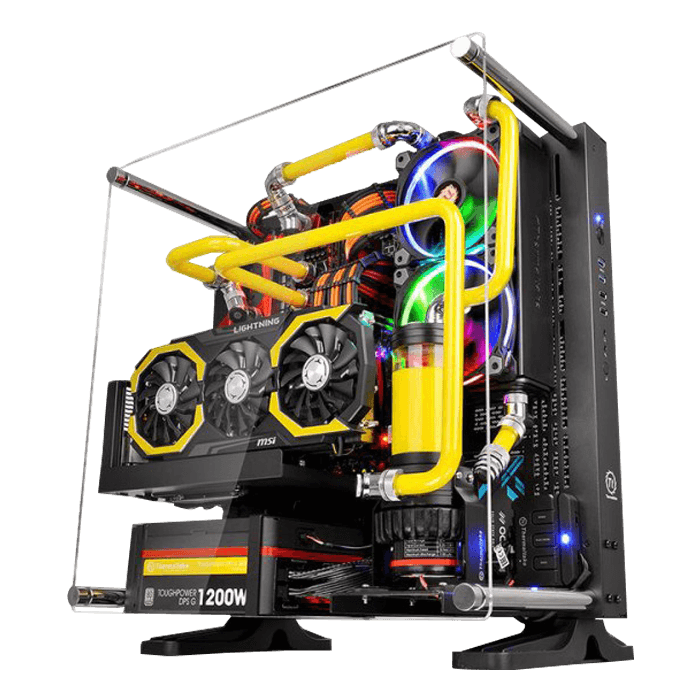

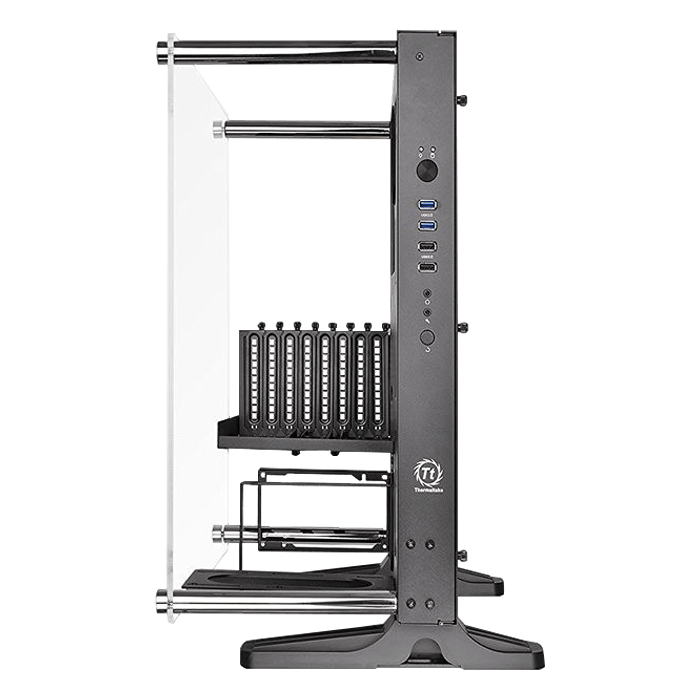

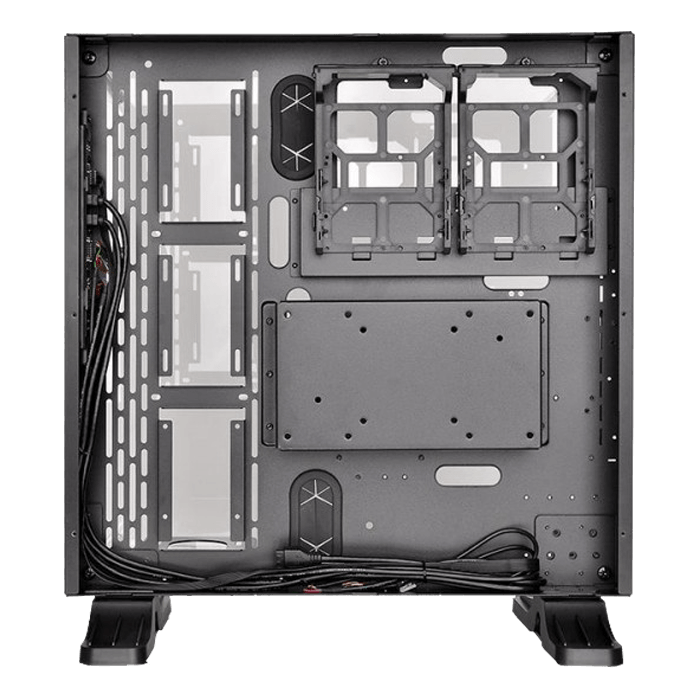

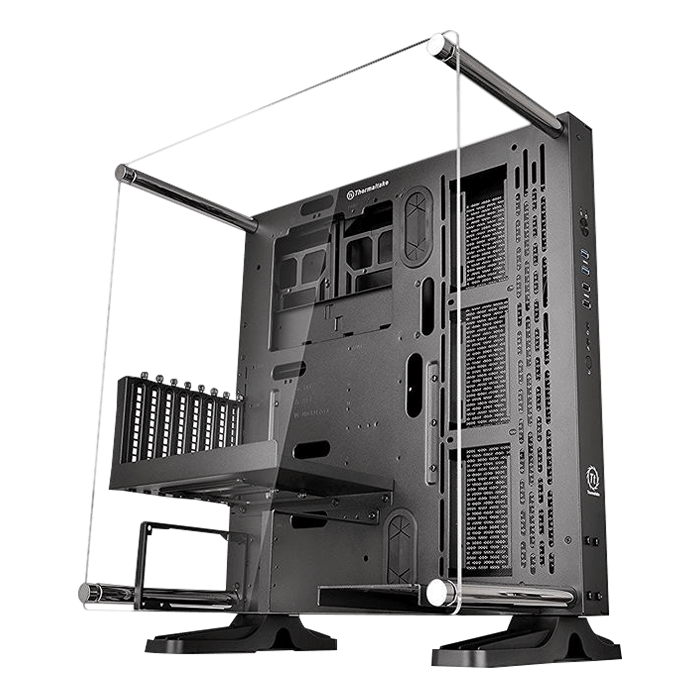

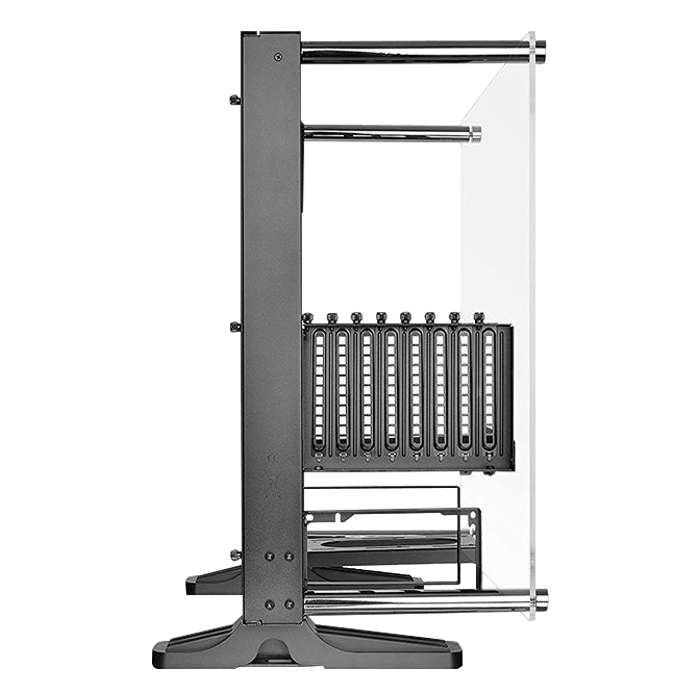

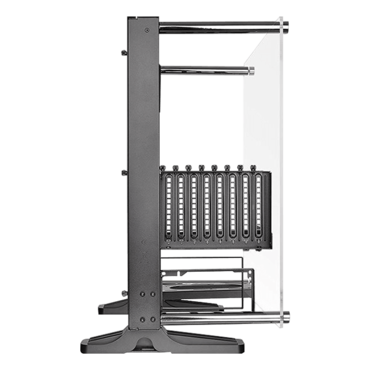

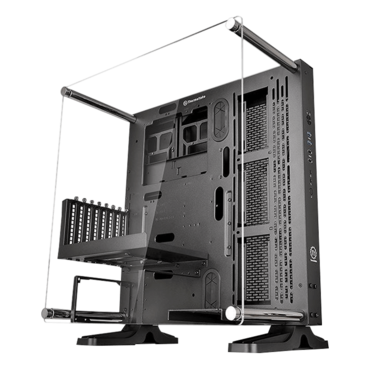

Thermaltake Core P3 Tempered Glass Edition ATX Open Frame Chassis

The new Core P3 Tempered Glass Edition Open Frame chassis comes with a 5mm thick tempered glass front panel to provide durability and a clear view of the inner components. Core P3 TG supports the latest PC hardware, AIO and DIY liquid cooling solutions. The Chassis is designed with dual GPU and PSU layout options and 3-way stand placements (wall mount, horizontal, and vertical placements) provide users unlimited flexibility when it comes to building the most advanced customized PC.

Model Core P3 TG
P/N CA-1G4-00M1WN-06
Case Type Mid Tower
Dimension (H x W x D) 512 x 333 x 470 mm
(20.2 x 13.1 x 18.5 inch)
Net Weight 11.3 kg / 24.91 lb
Side Panel 5mm Tempered Glass x 1
Color Black
Material SPCC
Drive Bays

2 x 3.5" or 3 x 2.5" (Outside the chassis)
2 x 3.5’’ or 2.5’’ (Inside the chassis)
Expansion Slots 8
Motherboards 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O Port USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
Fan Support Left Side:
3 x 120mm
3 x 140mm
Radiator Support Left Side:
1 x 360mm
1 x 420mm
Clearance CPU cooler height limitation:180mm
VGA length limitation:280mm (With Reservoir & Radiator)450mm (Without Reservoir & Radiator)
PSU length limitation:200mm
