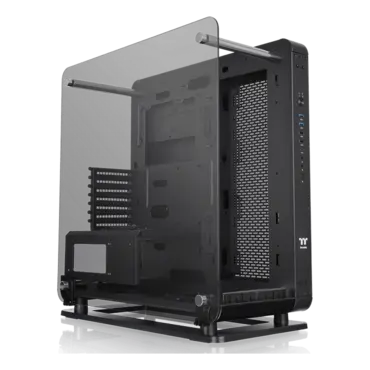

Core P6 TG Tempered Glass, No PSU, ATX, Black, Mid Tower Case
Quantity:
- SKU: 14722039
- Manufacturer: THERMALTAKE
- MPN: CA-1V2-00M1WN-00
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$229.37
Core P6 TG Tempered Glass, No PSU, ATX, Black, Mid Tower Case
Core P6 Tempered Glass ATX Mid Tower Chassis
The Core P6 TG Mid Tower Case is the smaller version of the Core P8 TG Full Tower Case. Just like the Core P8 TG, the Core P6 TG can be transformed into a closed or open styled form effortlessly and is the newest member of the Thermaltake iconic open-frame Core Series. The Core P6 TG features a fully modular design, Rotational PCI-E Slots, a PSU cover, an extra GPU bracket, support for 120mm and 140mm fans, support for 360mm and 280mm radiators, and removable filters. With all the significant features, the potential for the hardware expansion and cooling solution is remarkable for the Core P6 TG. Users will enjoy the process of building in the Core P6 TG Mid Tower Case and find it truly unique and innovative.
| P/N | CA-1V2-00M1WN-00 |
| Series | Core |
| Model | Core P6 TG |
| Case Type | Mid Tower |
| Dimension (H x W x D) | 565 x 255 x 530mm (22.2 x 10 x 20.9 inch) |
| Net Weight | 17.84 kg / 39.33 lbs. |
| Side Panel | 4mm Tempered Glass x 3 |
| Color | Black |
| Material | SPCC |
| Cooling System | - |
| Drive Bays -Accessible -Hidden |
4 x 3.5” or 8 x 2.5” |
| Expansion Slots | 7 (Rotatable Patented Design) |
| Motderboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 10.5”(CEB) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Top: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Rear: 1 x 120mm Right (M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Bottom: 3 x 120mm, 2 x 120mm or 1 x 120mm 2 x 140mm, 1 x 140mm |
| Radiator Support | Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Top: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Rear: 1 x 120mm Right (M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Bottom: 1 x 240mm, 1 x 120mm |
| Clearance | CPU cooler height limitation: 180mm VGA lengtd limitation: 300mm (Witd Reservoir) 400mm (Witdout Reservoir) 430mm (Witd Radiator) 458mm (Witdout Radiator) PSU lengtd limitation: 200mm |
