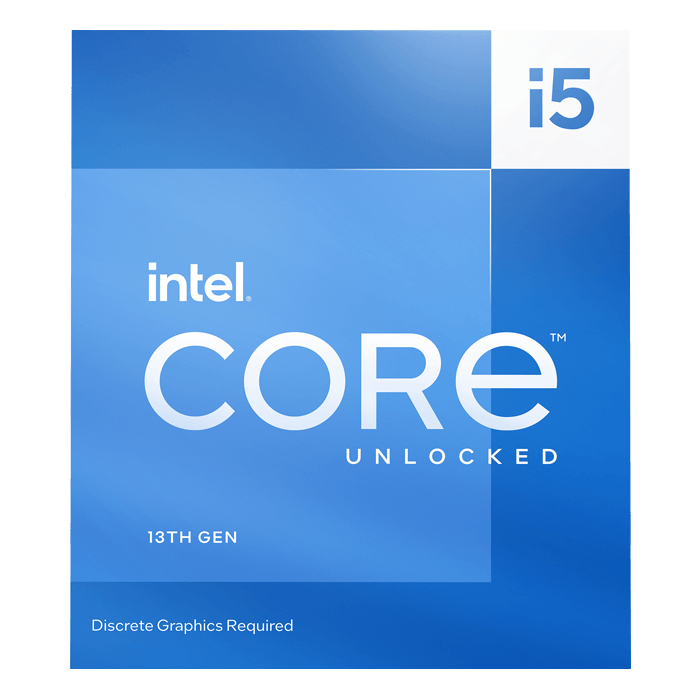

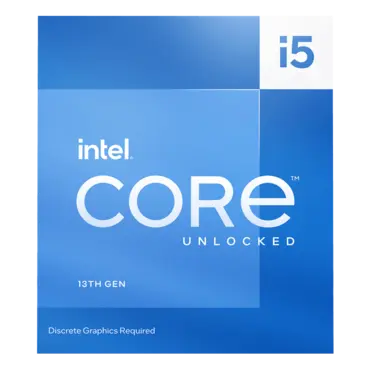

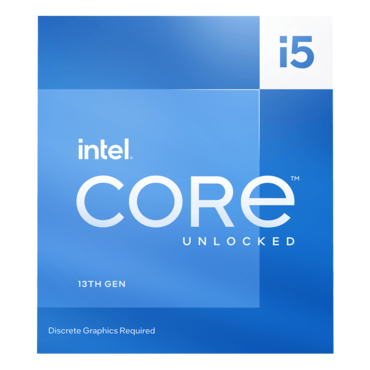

Core™ i5-13600KF 14 (6P+8E) Cores 2.6 - 5.1GHz Turbo, LGA 1700, 181W MTP, OEM Processor

Quantity:
  • SKU: 15151765
  • Manufacturer: INTEL
  • MPN: CM8071504821006
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$221.49
Quantity:
Essentials
Product Collection 13th Generation Intel® Core™ i5 Processors
Code Name Products formerly Raptor Lake
Vertical Segment Desktop
Processor Number i5-13600KF
Status Launched
Launch Date Q4'22
Lithography Intel 7
Use Conditions PC/Client/Tablet
CPU Specifications
Total Cores 14
# of Performance-cores 6
# of Efficient-cores 8
Total Threads 20
Max Turbo Frequency 5.10 GHz
Performance-core Max Turbo Frequency 5.10 GHz
Efficient-core Max Turbo Frequency 3.90 GHz
Performance-core Base Frequency 3.50 GHz
Efficient-core Base Frequency 2.60 GHz
Cache 24 MB Intel® Smart Cache
Total L2 Cache 20 MB
Processor Base Power 125 W
Maximum Turbo Power 181 W
Supplemental Information
Embedded Options Available No
Memory Specifications
Max Memory Size (dependent on memory type) 128 GB
Memory Types Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 89.6 GB/s
Expansion Options
Direct Media Interface (DMI) Revision 4
Max # of DMI Lanes 8
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations Up to 1x16+4 |  2x8+4
Max # of PCI Express Lanes 20
Package Specifications
Max CPU Configuration 1
TJUNCTION 100°C
Advanced Technologies
Intel® Gaussian & Neural Accelerator 3
Intel® Thread Director Yes
Intel® Deep Learning Boost (Intel® DL Boost) Yes
Intel® Speed Shift Technology Yes
Intel® Turbo Boost Max Technology 3.0 No
Intel® Turbo Boost Technology 2
Intel® Hyper-Threading Technology Yes
Intel® 64 Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1 |  Intel® SSE4.2 |  Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Volume Management Device (VMD) Yes
Security & Reliability
Intel® Standard Manageability (ISM) Yes
Intel® Control-Flow Enforcement Technology Yes
Intel® AES New Instructions Yes
Secure Key Yes
Intel® OS Guard Yes
Execute Disable Bit Yes
Intel® Boot Guard Yes
Mode-based Execute Control (MBEC) Yes
Intel® Virtualization Technology (VT-x) Yes
Intel® Virtualization Technology for Directed I/O (VT-d) Yes
Intel® VT-x with Extended Page Tables (EPT) Yes
