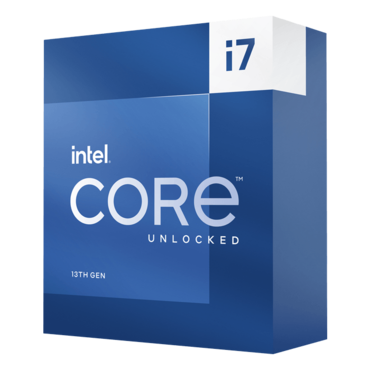

Core™ i7-13700K 16 (8P+8E) Cores 2.5 - 5.4GHz Turbo, LGA 1700, 253W MTP, Processor

Quantity:
  • SKU: 15147606
  • Manufacturer: INTEL
  • MPN: BX8071513700K
  • Availability: LOW STOCK
Starting At
$381.51
Quantity:
Essentials
Product Collection 13th Generation Intel® Core™ i7 Processors
Code Name Products formerly Raptor Lake
Vertical Segment Desktop
Processor Number i7-13700K
Status Launched
Launch Date Q4'22
Lithography Intel 7
Use Conditions PC/Client/Tablet |  Workstation
CPU Specifications
Total Cores 16
# of Performance-cores 8
# of Efficient-cores 8
Total Threads 24
Max Turbo Frequency 5.40 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency 5.40 GHz
Performance-core Max Turbo Frequency 5.30 GHz
Efficient-core Max Turbo Frequency 4.20 GHz
Performance-core Base Frequency 3.40 GHz
Efficient-core Base Frequency 2.50 GHz
Cache 30 MB Intel® Smart Cache
Total L2 Cache 24 MB
Processor Base Power 125 W
Maximum Turbo Power 253 W
Supplemental Information
Embedded Options Available No
Memory Specifications
Max Memory Size (dependent on memory type) 128 GB
Memory Types Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 89.6 GB/s
ECC Memory Supported   Yes
Processor Graphics
Processor Graphics Intel® UHD Graphics 770
Graphics Base Frequency 300 MHz
Graphics Max Dynamic Frequency 1.60 GHz
Graphics Output eDP 1.4b |  DP 1.4a |  HDMI 2.1
Execution Units 32
Max Resolution (HDMI)‡ 4096 x 2160 @ 60Hz
Max Resolution (DP)‡ 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz
DirectX* Support 12
OpenGL* Support 4.5
OpenCL* Support 3
Multi-Format Codec Engines 2
Intel® Quick Sync Video Yes
Intel® Clear Video HD Technology Yes
# of Displays Supported 4
Device ID 0xA780
Expansion Options
Direct Media Interface (DMI) Revision 4
Max # of DMI Lanes 8
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations Up to 1x16+4 |  2x8+4
Max # of PCI Express Lanes 20
Package Specifications
Max CPU Configuration 1
TJUNCTION 100°C
Advanced Technologies
Intel® Gaussian & Neural Accelerator 3
Intel® Thread Director Yes
Intel® Deep Learning Boost (Intel® DL Boost) Yes
Intel® Speed Shift Technology Yes
Intel® Turbo Boost Max Technology 3.0 Yes
Intel® Turbo Boost Technology 2
Intel® Hyper-Threading Technology Yes
Intel® 64 Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1 |  Intel® SSE4.2 |  Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Volume Management Device (VMD) Yes
Security & Reliability
Intel® Standard Manageability (ISM) Yes
Intel® Control-Flow Enforcement Technology Yes
Intel® AES New Instructions Yes
Secure Key Yes
Intel® OS Guard Yes
Intel® Trusted Execution Technology Yes
Execute Disable Bit Yes
Intel® Boot Guard Yes
Mode-based Execute Control (MBEC) Yes
Intel® Virtualization Technology (VT-x) Yes
Intel® Virtualization Technology for Directed I/O (VT-d) Yes
Intel® VT-x with Extended Page Tables (EPT) Yes
