Essentials |
Product Collection |
Intel® Core™ i7 Processors (14th gen) |
Code Name |
Products formerly RAPTOR LAKE |
Vertical Segment |
Desktop |
Processor Number |

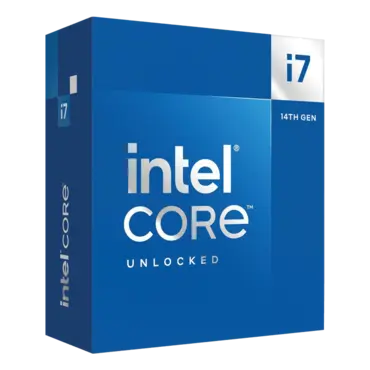

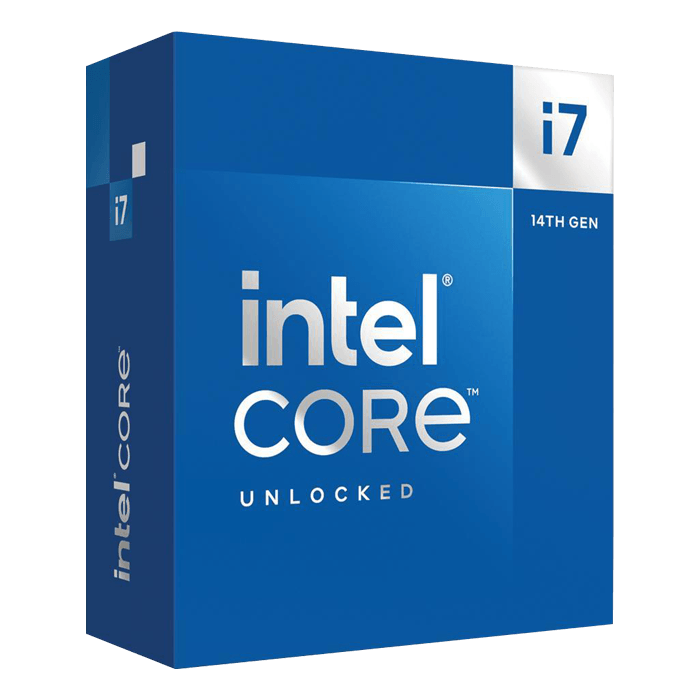

i7-14700K |
Lithography |
Intel 7 |
Use Conditions |
PC/Client/Tablet | Workstation |
CPU Specifications |
Total Cores |
20 |
# of Performance-cores |
8 |
# of Efficient-cores |
12 |
Total Threads |
28 |
Max Turbo Frequency |
5.6 GHz |
Intel® Turbo Boost Max Technology 3.0 Frequency |
5.6 GHz |
Performance-core Max Turbo Frequency |
5.5 GHz |
Efficient-core Max Turbo Frequency |
4.3 GHz |
Performance-core Base Frequency |
3.4 GHz |
Efficient-core Base Frequency |
2.5 GHz |
Cache |
33 MB Intel® Smart Cache |
Total L2 Cache |
28 MB |
Processor Base Power |
125 W |
Maximum Turbo Power |
253 W |
Supplemental Information |
Marketing Status |
Launched |
Launch Date |
Q4'23 |
Embedded Options Available |
No |
Memory Specifications |
Max Memory Size (dependent on memory type) |
192 GB |
Memory Types |
Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s |
Max # of Memory Channels |
2 |
Max Memory Bandwidth |
89.6 GB/s |
ECC Memory Supported |
Yes |
GPU Specifications |
Processor Graphics |
Intel® UHD Graphics 770 |
Graphics Base Frequency |
300 GHz |
Graphics Max Dynamic Frequency |
1.6 GHz |
Graphics Output |
eDP 1.4b | DP 1.4a | HDMI 2.1 |
Execution Units |
32 |
Max Resolution (HDMI) |
4096 x 2160 @ 60Hz |
Max Resolution (DP) |
7680 x 4320 @ 60Hz |
Max Resolution (eDP - Integrated Flat Panel) |
5120 x 3200 @ 120Hz |
DirectX* Support |
12 |
OpenGL* Support |
4.5 |
OpenCL* Support |
3 |
Multi-Format Codec Engines |
2 |
Intel® Quick Sync Video |
Yes |
Intel® Clear Video HD Technology |
Yes |
# of Displays Supported |
4 |
Device ID |
0xA780 |
Expansion Options |
Direct Media Interface (DMI) Revision |
4 |
Max # of DMI Lanes |
8 |
Scalability |
1S Only |
PCI Express Revision |
5.0 and 4.0 |
PCI Express Configurations |
Up to 1x16+4 | 2x8+4 |
Max # of PCI Express Lanes |
20 |
Package Specifications |
Sockets Supported |
FCLGA1700 |
Max CPU Configuration |
1 |
Thermal Solution Specification |
PCG 2020A |
TJUNCTION |
100°C |
Package Size |
45.0 mm x 37.5 mm |
Advanced Technologies |
Intel® Gaussian & Neural Accelerator |
3 |
Intel® Thread Director |
Yes |
Intel® Deep Learning Boost (Intel® DL Boost) on CPU |
Yes |
Intel® Speed Shift Technology |
Yes |
Intel® Turbo Boost Max Technology 3.0 |
Yes |
Intel® Turbo Boost Technology |
2 |
Intel® Hyper-Threading Technology |
Yes |
Intel® 64 |
Yes |
Instruction Set |
64-bit |
Instruction Set Extensions |
Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2 |
Idle States |
Yes |
Enhanced Intel SpeedStep® Technology |
Yes |
Thermal Monitoring Technologies |
Yes |
Intel® Volume Management Device (VMD) |
Yes |
Security & Reliability |
Intel® Standard Manageability (ISM) |
Yes |
Intel® Control-Flow Enforcement Technology |
Yes |
Intel® AES New Instructions |
Yes |
Secure Key |
Yes |
Intel® OS Guard |
Yes |
Execute Disable Bit |
Yes |
Intel® Boot Guard |
Yes |
Mode-based Execute Control (MBEC) |
Yes |
Intel® Virtualization Technology (VT-x) |
Yes |
Intel® Virtualization Technology for Directed I/O (VT-d) |
Yes |
Intel® VT-x with Extended Page Tables (EPT) |
Yes |
