Essentials | |
Product Collection | Legacy Intel® Core™ Processors |
Code Name | Products formerly Sandy Bridge |
Vertical Segment | Mobile |

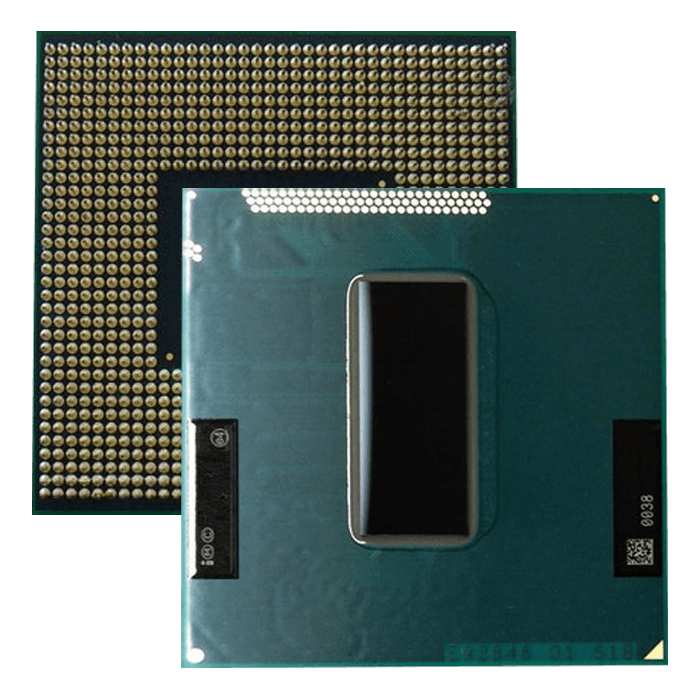

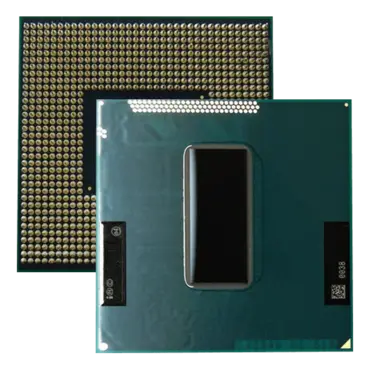

Processor Number | i7-2630QM |
Lithography | 32 nm |
CPU Specifications | |
# of Cores | 4 |
# of Threads | 8 |
Processor Base Frequency | 2.00 GHz |
Max Turbo Frequency | 2.90 GHz |
Cache | 6 MB Intel® Smart Cache |
Bus Speed | 5 GT/s |
Intel® Turbo Boost Technology 2.0 Frequency | 2.90 GHz |
TDP | 45 W |
Supplemental Information | |
Embedded Options Available | No |
Datasheet | View now |
Memory Specifications | |
Max Memory Size (dependent on memory type) | 16 GB |
Memory Types | DDR3 1066/1333 |
Max # of Memory Channels | 2 |
Max Memory Bandwidth | 21.3 GB/s |
ECC Memory Supported | No |
Processor Graphics | |
Processor Graphics | Intel® HD Graphics 3000 |
Graphics Base Frequency | 650 MHz |
Graphics Max Dynamic Frequency | 1.10 GHz |
Graphics Output | eDP/DP/HDMI/SDVO/CRT |
Intel® Quick Sync Video | Yes |
Intel® InTru™ 3D Technology | Yes |
Intel® Flexible Display Interface (Intel® FDI) | Yes |
Intel® Clear Video HD Technology | Yes |
Macrovision* License Required | No |
# of Displays Supported | 2 |
Device ID | 0x116 |
Expansion Options | |
PCI Express Revision | 2.0 |
PCI Express Configurations | 1x16, 2x8, 1x8+2x4 |
Max # of PCI Express Lanes | 16 |
Package Specifications | |
Sockets Supported | FCPGA988 |
TJUNCTION | 100 C |
Package Size | 37.5mm x 37.5 (rPGA998) |
Advanced Technologies | |
Intel® Turbo Boost Technology | 2.0 |
Intel vPro® Platform Eligibility | No |
Intel® Hyper-Threading Technology | Yes |
Intel® Virtualization Technology (VT-x) | Yes |
Intel® Virtualization Technology for Directed I/O (VT-d) | No |
Intel® VT-x with Extended Page Tables (EPT) | Yes |
Intel® 64 | Yes |
Instruction Set | 64-bit |
Instruction Set Extensions | Intel® AVX |
Intel® My WiFi Technology | Yes |
4G WiMAX Wireless Technology | Yes |
Idle States | Yes |
Enhanced Intel SpeedStep® Technology | Yes |
Intel® Demand Based Switching | No |
Thermal Monitoring Technologies | Yes |
Intel® Fast Memory Access | Yes |
Intel® Flex Memory Access | Yes |
Intel® Identity Protection Technology | Yes |
Security & Reliability | |
Intel® AES New Instructions | Yes |
Intel® Trusted Execution Technology | No |
Execute Disable Bit | Yes |
Anti-Theft Technology | Yes |
