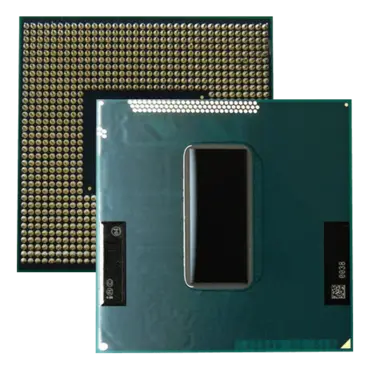

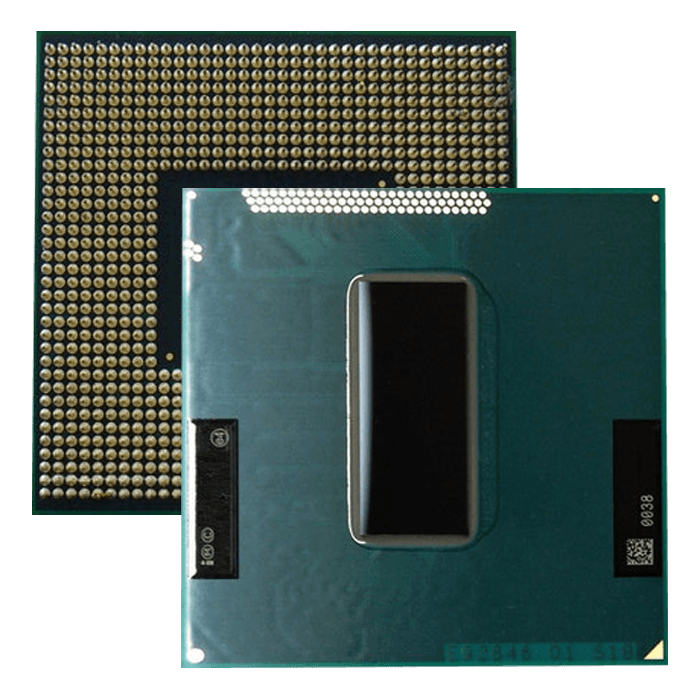

Core™ i7-2860QM 4-Core 2.5 - 3.6GHz Turbo, FCPGA988, 45W TDP, OEM Processor

SKU: 6336485

Manufacturer: INTEL

MPN: FF8062701065100

Availability: Low Stock


Price: $639.34
or as low as $20.63/month
Quantity:
Essentials
Product Collection Legacy Intel® Core™ Processors
Code Name Products formerly Sandy Bridge
Vertical Segment Mobile
Processor Number i7-2860QM
Lithography 32 nm
CPU Specifications
# of Cores 4
# of Threads 8
Processor Base Frequency 2.50 GHz
Max Turbo Frequency 3.60 GHz
Cache 8 MB Intel® Smart Cache
Bus Speed 5 GT/s
Intel® Turbo Boost Technology 2.0 Frequency 3.60 GHz
TDP 45 W
Supplemental Information
Embedded Options Available No
Datasheet View now
Memory Specifications
Max Memory Size (dependent on memory type) 32 GB
Memory Types DDR3 1066/1333/1600
Max # of Memory Channels 2
Max Memory Bandwidth 25.6 GB/s
ECC Memory Supported No
Processor Graphics
Processor Graphics Intel® HD Graphics 3000
Graphics Base Frequency 650 MHz
Graphics Max Dynamic Frequency 1.30 GHz
Graphics Output eDP/DP/HDMI/SDVO/CRT
Intel® Quick Sync Video Yes
Intel® InTru™ 3D Technology Yes
Intel® Flexible Display Interface (Intel® FDI) Yes
Intel® Clear Video HD Technology Yes
Macrovision* License Required No
# of Displays Supported 2
Device ID 0x116
Expansion Options
PCI Express Revision 2.0
PCI Express Configurations 1x16, 2x8, 1x8 2x4
Max # of PCI Express Lanes 16
Package Specifications
Sockets Supported FCBGA1224, FCPGA988
Max CPU Configuration 1
TJUNCTION 100 C
Package Size 37.5 x 37.5mm (rPGA988B); 31.0 x 24.0mm (BGA1224)
Advanced Technologies
Intel® Turbo Boost Technology 2.0
Intel vPro® Platform Eligibility Yes
Intel® Hyper-Threading Technology Yes
Intel® Virtualization Technology (VT-x) Yes
Intel® Virtualization Technology for Directed I/O (VT-d) Yes
Intel® VT-x with Extended Page Tables (EPT) Yes
Intel® 64 Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® AVX
Intel® My WiFi Technology Yes
4G WiMAX Wireless Technology Yes
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Intel® Demand Based Switching No
Thermal Monitoring Technologies Yes
Intel® Fast Memory Access Yes
Intel® Flex Memory Access Yes
Intel® Identity Protection Technology Yes
Security & Reliability
Intel® AES New Instructions Yes
Intel® Trusted Execution Technology Yes
Execute Disable Bit Yes
Anti-Theft Technology Yes
