SKU: 10588579
Manufacturer: INTEL
MPN: BX80671I76800K
Availability: Low Stock
Essentials | |
Status | Launched |
Launch Date | Q2'16 |

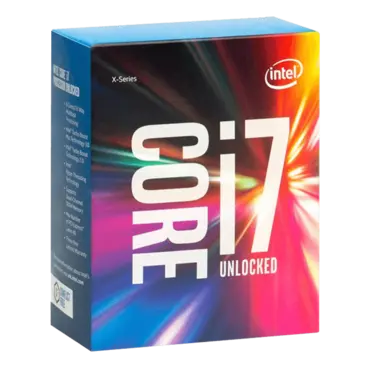

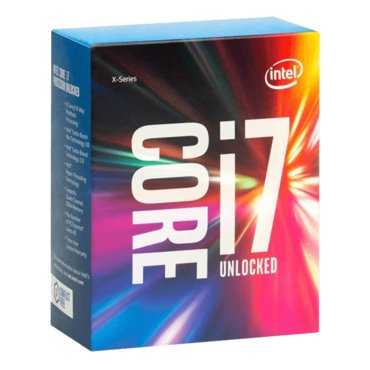

Processor Number | i7-6800K (BX80671I76800K) |
Cache | 15 MB |
Instruction Set | 64-bit |
Embedded Options Available | No |
Lithography | 14 nm |
Scalability | 1S Only |
Conflict Free | Yes |
Performance | |
# of Cores | 6 |
# of Threads | 12 |
Processor Base Frequency | 3.4 GHz |
Max Turbo Frequency | 3.6 GHz |
TDP | 140 W |
Memory Specifications | |
Max Memory Size (dependent on memory type) | 128 GB |
Memory Types | DDR4 2400/2133 |
Max # of Memory Channels | 4 |
ECC Memory Supported ‡ | No |
Graphics Specifications | |
Processor Graphics ‡ | None |
Expansion Options | |
PCI Express Revision | 3.0 |
Max # of PCI Express Lanes | 40 |
Package Specifications | |
Max CPU Configuration | 1 |
Sockets Supported | LGA2011-v3 |
Low Halogen Options Available | See MDDS |
Advanced Technologies | |
Intel® Turbo Boost Max Technology 3.0 | Yes |
Intel® Turbo Boost Technology ‡ | 2.0 |
Intel® vPro Technology ‡ | No |
Intel® Hyper-Threading Technology ‡ | Yes |
Intel® Virtualization Technology (VT-x) ‡ | Yes |
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
Intel® 64 ‡ | Yes |
Idle States | Yes |
Enhanced Intel SpeedStep® Technology | Yes |
Intel® Smart Response Technology | Yes |
Intel® Data Protection Technology | |
Intel® AES New Instructions | Yes |
Intel® Platform Protection Technology | |
Trusted Execution Technology ‡ | No |
Execute Disable Bit ‡ | Yes |
