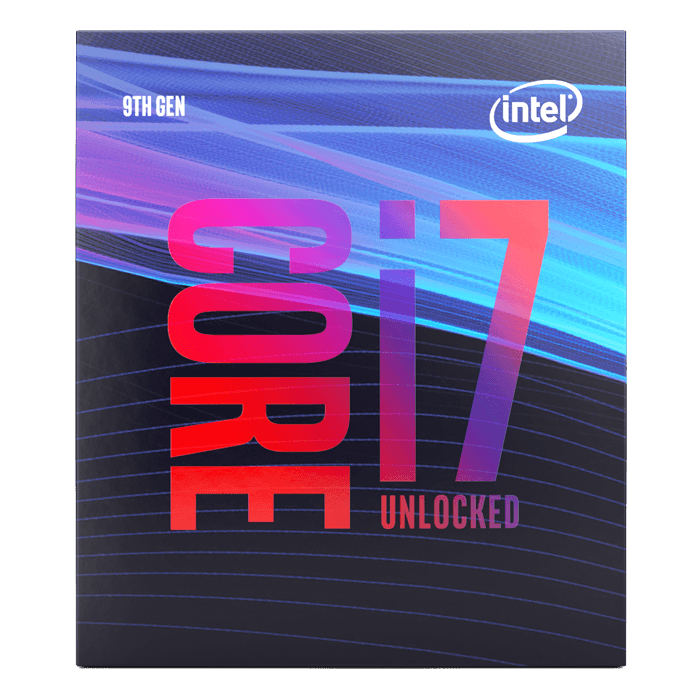

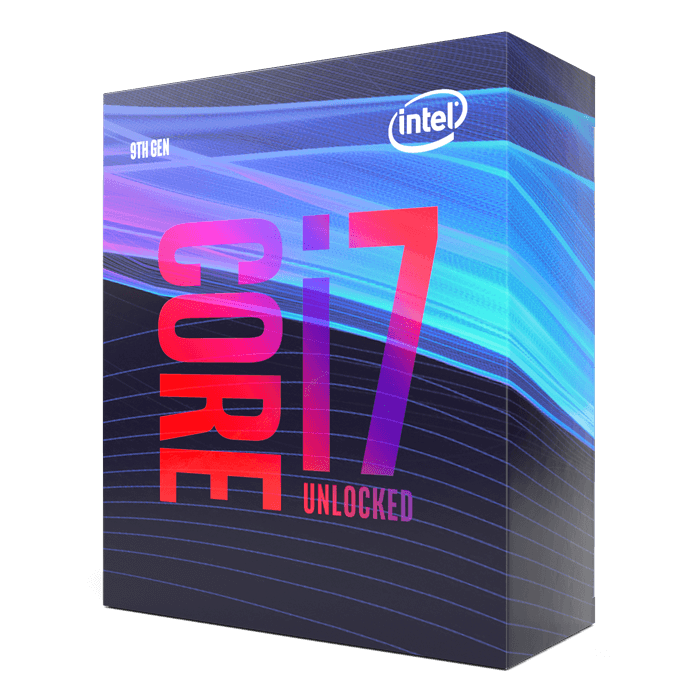

Core™ i7-9700K 8-Core 3.6 - 4.9GHz Turbo, LGA 1151, 95W TDP, Processor

SKU: 12383263

Manufacturer: INTEL

MPN: BX80684I79700K

Availability: Available


Price: $346.13
or as low as $11/month
Quantity:
Essentials
Product Collection 9th Generation Intel® Core™ i7 Processors
Code Name Products formerly Coffee Lake
Vertical Segment Desktop
Processor Number i7-9700K
Status Launched
Launch Date Q4'18
Lithography 14 nm
Use Conditions PC/Client/Tablet
Performance
# of Cores 8
# of Threads 8
Processor Base Frequency 3.60 GHz
Max Turbo Frequency 4.90 GHz
Cache 12 MB SmartCache
Bus Speed 8 GT/s DMI3
TDP 95 W
Supplemental Information
Embedded Options Available No
Datasheet View now
Memory Specifications
Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4-2666
Max # of Memory Channels 2
Max Memory Bandwidth 41.6 GB/s
ECC Memory Supported No
Processor Graphics
Processor Graphics Intel® UHD Graphics 630
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.20 GHz
Graphics Video Max Memory 64 GB
4K Support Yes, at 60Hz
Max Resolution (HDMI 1.4) 4096x2304@24Hz
Max Resolution (DP) 4096x2304@60Hz
Max Resolution (eDP - Integrated Flat Panel) 4096x2304@60Hz
DirectX* Support 12
OpenGL* Support 4.5
Intel® Quick Sync Video Yes
Intel® InTru™ 3D Technology Yes
Intel® Clear Video HD Technology Yes
Intel® Clear Video Technology Yes
# of Displays Supported 3
Device ID 0x3E98
Expansion Options
Scalability 1S Only
PCI Express Revision 3.0
PCI Express Configurations Up to 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes 16
Package Specifications
Sockets Supported FCLGA1151, PPGA1151
Max CPU Configuration 1
Thermal Solution Specification PCG 2015D (130W)
TJUNCTION 100°C
Package Size 37.5mm x 37.5mm
Advanced Technologies
Intel® Optane™ Memory Supported Yes
Intel® Turbo Boost Technology 2.0
Intel® vPro™ Platform Eligibility Yes
Intel® Hyper-Threading Technology No
Intel® Virtualization Technology (VT-x) Yes
Intel® Virtualization Technology for Directed I/O (VT-d) Yes
Intel® TSX-NI Yes
Intel® 64 Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Identity Protection Technology Yes
Intel® Stable Image Platform Program (SIPP) Yes
Security & Reliability
Intel® AES New Instructions Yes
Secure Key Yes
Intel® Software Guard Extensions (Intel® SGX) Yes
Intel® Memory Protection Extensions (Intel® MPX) Yes
Intel® OS Guard Yes
Intel® Trusted Execution Technology Yes
Execute Disable Bit Yes
Intel® Boot Guard Yes
