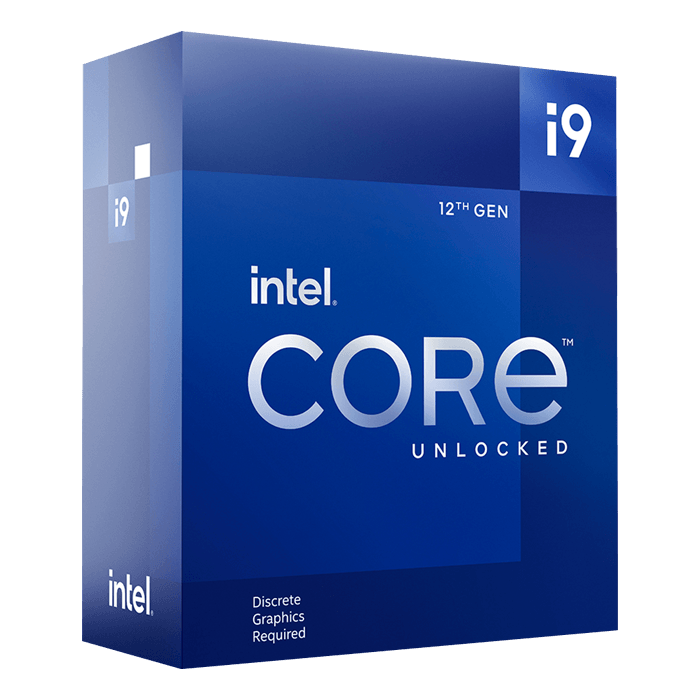

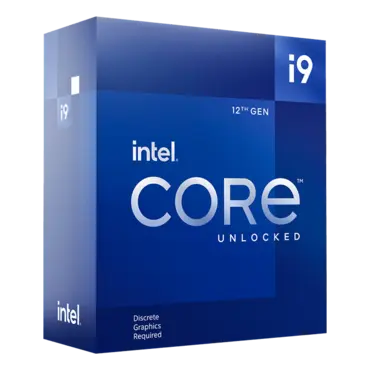

Core™ i9-12900KF 16 (8P+8E) Cores 2.4 - 5.2GHz Turbo, LGA 1700, 241W MTP, Processor

Quantity:
  • SKU: 14661790
  • Manufacturer: INTEL
  • MPN: BX8071512900KF
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$381.51
Quantity:
Core™ i9-12900KF 16 (8P+8E) Cores 2.4 - 5.2GHz Turbo, LGA 1700, 241W MTP, Processor

12th Gen Intel® Core™ i9-12900KF unlocked desktop processor, without processor graphics. Featuring Intel® Turbo Boost Max Technology 3.0 and PCIe Gen 5.0 & 4.0 support, DDR5 and DDR4 support, unlocked 12th Gen Intel® Core™ desktop processors are optimized for enthusiast gamers and serious creators and help deliver high performance overclocking for an added boost. Discrete graphics required. Thermal solution NOT included in the box. Compatible with 600 series chipset based motherboards 125W.

Essentials
Product Collection 12th Generation Intel® Core™ i9 Processors
Code Name Products formerly Alder Lake
Vertical Segment Desktop
Processor Number i9-12900KF
Status Launched
Launch Date Q4'21
Lithography Intel 7
Use Conditions PC/Client/Tablet
CPU Specifications
Total Cores 16
# of Performance-cores 8
# of Efficient-cores 8
Total Threads 24
Max Turbo Frequency 5.20 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency 5.20 GHz
Performance-core Max Turbo Frequency 5.10 GHz
Efficient-core Max Turbo Frequency 3.90 GHz
Performance-core Base Frequency 3.20 GHz
Efficient-core Base Frequency 2.40 GHz
Cache 30 MB Intel® Smart Cache
Total L2 Cache 14 MB
Processor Base Power 125 W
Maximum Turbo Power 241 W
Supplemental Information
Embedded Options Available No
Memory Specifications
Max Memory Size (dependent on memory type) 128 GB
Memory Types Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 76.8 GB/s
Expansion Options
Direct Media Interface (DMI) Revision 4.0
Max # of DMI Lanes 8
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes 20
Package Specifications
Max CPU Configuration 1
Thermal Solution Specification PCG 2020A
TJUNCTION 100°C
Package Size 45.0 mm x 37.5 mm
Advanced Technologies
Intel® Gaussian & Neural Accelerator 3.0
Intel® Thread Director Yes
Intel® Deep Learning Boost (Intel® DL Boost) Yes
Intel® Optane™ Memory Supported Yes
Intel® Speed Shift Technology Yes
Intel® Turbo Boost Max Technology 3.0 Yes
Intel® Turbo Boost Technology 2.0
Intel® Hyper-Threading Technology Yes
Intel® Virtualization Technology (VT-x) Yes
Intel® Virtualization Technology for Directed I/O (VT-d) Yes
Intel® VT-x with Extended Page Tables (EPT) Yes
Intel® 64 Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Volume Management Device (VMD) Yes
Security & Reliability
Intel® AES New Instructions Yes
Secure Key Yes
Intel® OS Guard Yes
Execute Disable Bit Yes
Intel® Boot Guard Yes
Mode-based Execute Control (MBE) Yes
Intel® Control-Flow Enforcement Technology Yes
