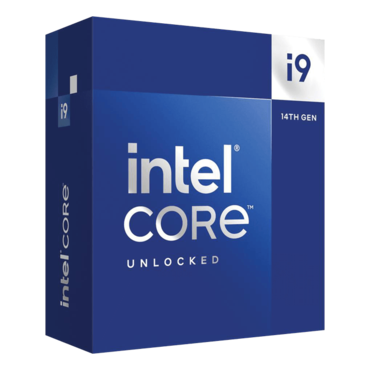

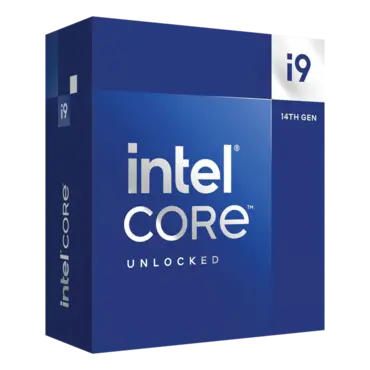

Core™ i9-14900K 24 (8P+16E) Cores 2.4 - 6.0GHz Turbo, LGA 1700, 253W MTP, Processor

Quantity:
  • SKU: 17028426
  • Manufacturer: INTEL
  • MPN: BX8071514900K
  • Availability: IN STOCK
Starting At
$629.29
Quantity:
Essentials
Product Collection Intel® Core™ i9 Processors (14th gen)
Code Name Products formerly RAPTOR LAKE
Vertical Segment Desktop
Processor Number i9-14900K
Lithography Intel 7
Use Conditions PC/Client/Tablet | Workstation
CPU Specifications
Total Cores 24
# of Performance-cores 8
# of Efficient-cores 16
Total Threads 32
Max Turbo Frequency 6 GHz
Intel® Thermal Velocity Boost Frequency 6 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency  5.8 GHz
Performance-core Max Turbo Frequency 5.6 GHz
Efficient-core Max Turbo Frequency 4.4 GHz
Performance-core Base Frequency 3.2 GHz
Efficient-core Base Frequency 2.4 GHz
Cache 36 MB Intel® Smart Cache
Total L2 Cache 32 MB
Processor Base Power 125 W
Maximum Turbo Power 253 W
Supplemental Information
Marketing Status Launched
Launch Date Q4'23
Embedded Options Available No
Memory Specifications
Max Memory Size (dependent on memory type) 192 GB
Memory Types Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 89.6 GB/s
ECC Memory Supported Yes
GPU Specifications
Processor Graphics  Intel® UHD Graphics 770
Graphics Base Frequency 300 MHz
Graphics Max Dynamic Frequency 1.65 GHz
Graphics Output eDP 1.4b | DP 1.4a | HDMI 2.1
Execution Units 32
Max Resolution (HDMI) 4096 x 2160 @ 60Hz
Max Resolution (DP) 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel) 5120 x 3200 @ 120Hz
DirectX* Support 12
OpenGL* Support 4.5
OpenCL* Support 3
Multi-Format Codec Engines 2
Intel® Quick Sync Video Yes
Intel® Clear Video HD Technology Yes
# of Displays Supported  4
Device ID 0xA780
Expansion Options
Direct Media Interface (DMI) Revision 4
Max # of DMI Lanes 8
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations  Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes 20
Package Specifications
Sockets Supported FCLGA1700
Max CPU Configuration 1
Thermal Solution Specification PCG 2020A
TJUNCTION 100°C
Package Size 45.0 mm x 37.5 mm
Advanced Technologies
Intel® Gaussian & Neural Accelerator 3
Intel® Thread Director Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes
Intel® Speed Shift Technology Yes
Intel® Adaptive Boost Technology Yes
Intel® Thermal Velocity Boost Yes
Intel® Turbo Boost Max Technology 3.0  Yes
Intel® Turbo Boost Technology  2
Intel® Hyper-Threading Technology  Yes
Intel® 64  Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Volume Management Device (VMD) Yes
Security & Reliability
Intel® Standard Manageability (ISM)  Yes
Intel® Control-Flow Enforcement Technology Yes
Intel® AES New Instructions Yes
Secure Key Yes
Intel® OS Guard Yes
Execute Disable Bit  Yes
Intel® Boot Guard Yes
Mode-based Execute Control (MBEC) Yes
Intel® Virtualization Technology (VT-x)  Yes
Intel® Virtualization Technology for Directed I/O (VT-d)  Yes
Intel® VT-x with Extended Page Tables (EPT)  Yes
