D-118V2-ITX is a reliable and stable 1U-high 11" depth industrial computer chassis. This chassis supports either one 3.5" or two 2.5" hard drive with a mini-ITX motherboard. D-118-ITX supports a 1U flex power supply to meet regular system applications and optional 40mm cooling fans can be installed at front for air ventilation.

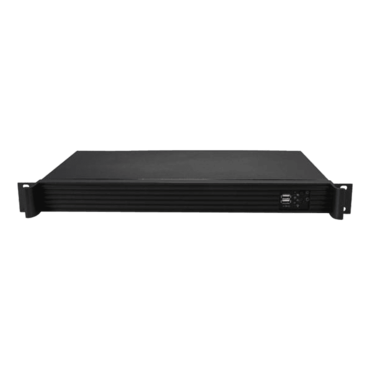

D-118V2-ITX 1U Compact Rackmount mini-ITX Chassis
|Form factor||1 U|
|Standard Drive Bays||2.5" Drive (internal): 2|
|Supported PSU Type||1U Flex|
|Material of Front Bezel||Aluminum|
|Material of Main Chassis||Steel|
|Color of Front Bezel||Black|
|Color of Main Chassis||Black|
|Front Connector||2x USB 2.0|
|Motherboard Size||6.7 x 6.7 (mini-ITX)|
|Optional Fan:||40mm x2|
|Dimensions (WxHxD)||19.00" x 1.75" x 11.12"
482.6 mm x 44.4 mm x 282.4 mm
|Notes||- 3.5" hdd cannot be installed when an add-on card is in place.
- standard I/O shield will NOT fit any 1U chassis.
- for PCI riser, use DD-611-C5 (search for DD-611-CX).
- for PCIe x16 riser, use DD-666-C5 (search for DD-666-CX).
