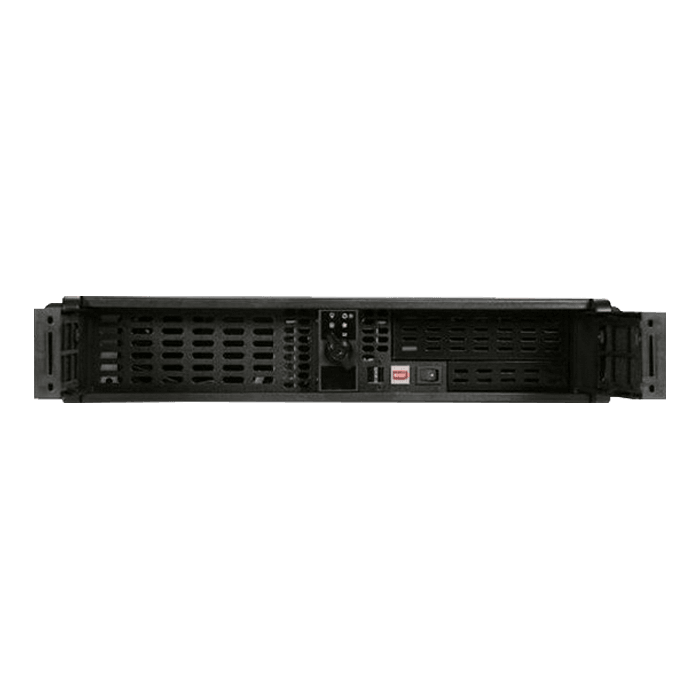

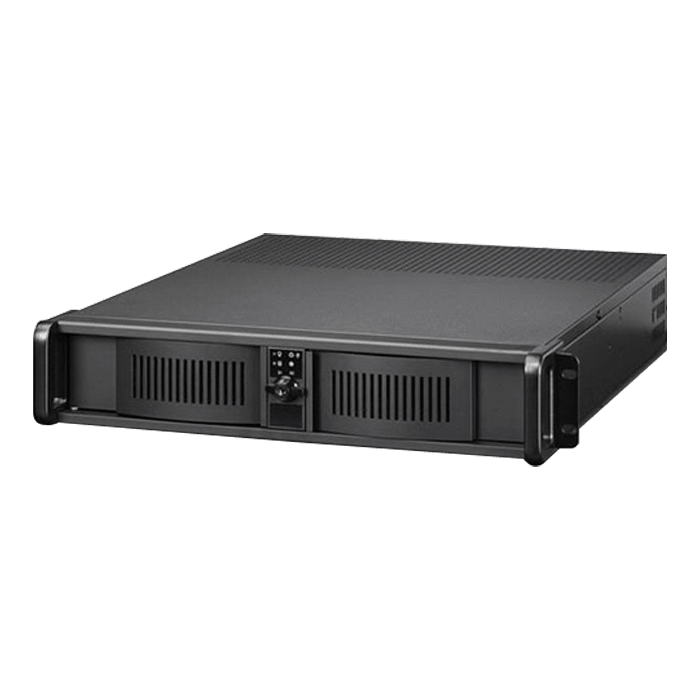

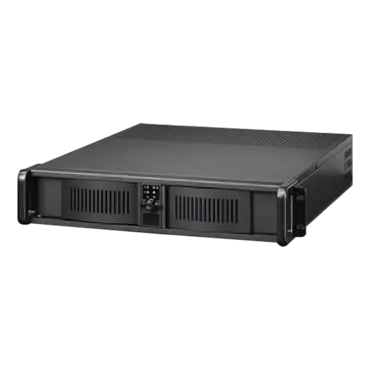

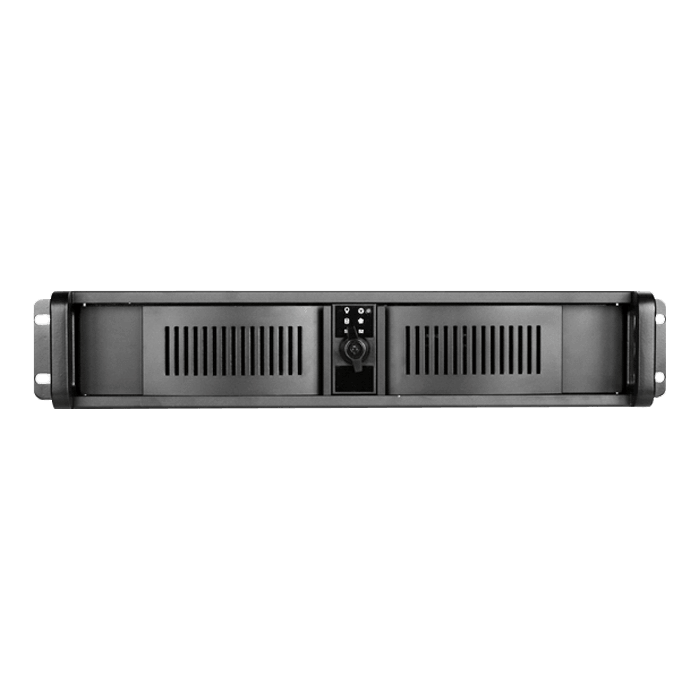

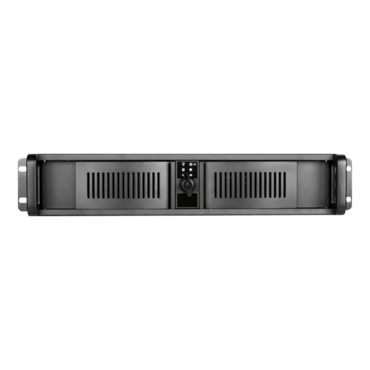

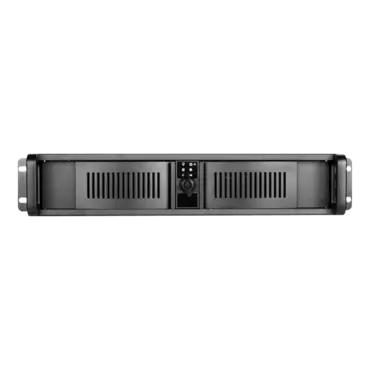

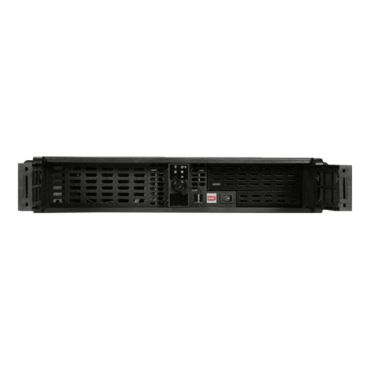

D-200-FS, Black Bezel, 1x 5.25" +1x 3.5" External Bays, 2x 3.5" Internal Bays, No PSU, ATX, Black, 2U Chassis
D-200-FS, Black Bezel, 1x 5.25" +1x 3.5" External Bays, 2x 3.5" Internal Bays, No PSU, ATX, Black, 2U Chassis
D-200-FS, Black Bezel, 1x 5.25" +1x 3.5" External Bays, 2x 3.5" Internal Bays, No PSU, ATX, Black, 2U Chassis

D-200-FS, Black Bezel, 1x 5.25" +1x 3.5" External Bays, 2x 3.5" Internal Bays, No PSU, ATX, Black, 2U Chassis

  • SKU: 2138620
  • Manufacturer: ISTARUSA
  • MPN: D-200-FS
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$249.54
Quantity:
D-200-FS, Black Bezel, 1x 5.25" +1x 3.5" External Bays, 2x 3.5" Internal Bays, No PSU, ATX, Black, 2U Chassis
The D-200-FS brings compact and power into balance for 2U rackmount chassis. Compact 2U that is compatible with standard ATX power supply to support system with high power needs. D-200-FS has total of three 3.5 drive storage that supports RAID configuration as well as one 5.25 drive bay space for optical or hot-swap device. Enforced power supply cooling and CoolingFan ball-bearing fans ensure system optimal performance. Optional 6 slots low-profile backplane to support additional expansion cards.

D-200-FS 2U Compact Stylish Rackmount Chassis Front-mounted ATX Power Supply

  • 3 Way Aluminum Front Panel with Locks
  • Front Access USB2.0 x2
  • 80mm x1 Cooling Fan
  • Front Mount ATX Power Supply
  • Removable Air Filter
  • Power and HDD LED
  • Power and Alarm Reset Switch
  • Optional Aluminum Chassis
Model Number D-200-FS
RoHS Compliance Yes
Form factor 2 U
Standard Drive Bays 3.5" Drives: 1
3.5" Drive (internal): 2
5.25" Drives: 1
Indicators Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
Switches Power, Reset
Supported PSU Type PS2 - up to 160mm deep
Expansion Slots 3
Security Front Bezel Key Lock
Material of Front Bezel Aluminum alloy
Material of Handle SECC Zinc-Coated Steel
Material of Main Chassis 1.2mm SECC Zinc-Coated Steel (Japan Made)
Color of Front Bezel Black
Color of Main Chassis Black
Front Connector 2x USB 2.0
Air Filter Removable & Washable
Motherboard Size 12 x 9.6 (ATX, microATX, mini-ITX)
Cooling Fan 1x80mm
Optional Fan: 60mm x3 (bracket DD-FANGUARD-6 required)
Ordering Information
(Part Number)		 Black Bezel:D-200-FS
Blue Bezel:D-200-FS-BLUE
Red Bezel:D-200-FS-RED
Silver Bezel:D-200-FS-SILVER
Dimensions (WxHxD) 19.00" x 3.50" x 20.80"
482.6 mm x 88.9 mm x 528.3 mm
Notes - compatible with standard ATX PSU with length no more than 160mm
