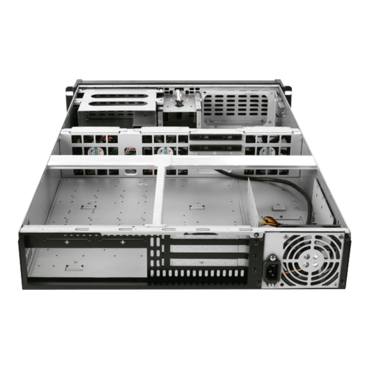

D-200L-PFS, Black Bezel, 1x 5.25", 3x 3.5" Drive Bays, No PSU, E-ATX, Black, 2U Chassis
The D-200L-PFS is a high performance 2U rackmount chassis that is compatible with a standard PS/2 ATX power supply to support system with high power needs. D-200L-PFS has total of three 3.5 drive storage that is capable of RAID configuration as well as one 5.25 drive bay space for optical or hot-swap device. Enforced power supply cooling and 4x80mm ball-bearing fans ensure system optimal performance. Optional 6 slots low-profile backplane to support additional expansion cards.

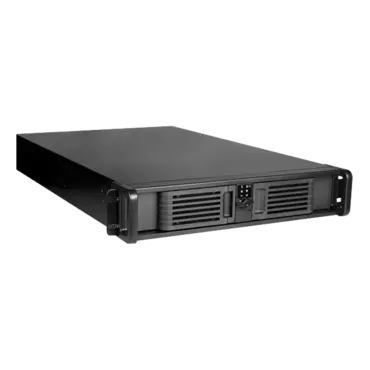

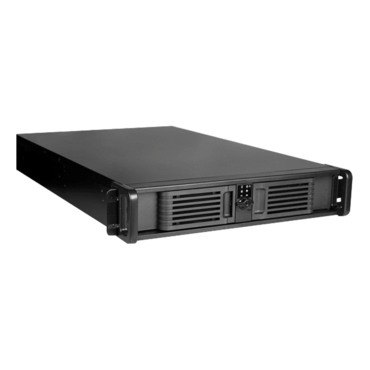

D-200L-PFS 2U High Performance Rackmount Chassis
- Front Access USB2.0 x 2
- 80mm x 4 Cooling Fans
- Front Mounted PS/2 ATX Power Supply
- Removable Air Filter
- Power and HDD LED
- Power and Alarm Reset Switch
Model Number | D-200L-PFS |
RoHS Compliance | Yes |
Form factor | 2 U |
Standard Drive Bays | 3.5" Drives: 1
3.5" Drive (internal): 2 5.25" Drives: 1 |
Indicators | LEDs for Power ON/OFF, HDD, Fan & Alarm |
Switches | Power ON/OFF, System & Alarm Reset |
Expansion Slots | 3 |
Security | Front Bezel |
Material of Front Bezel | ABS Plastic (Fire Approval) |
Material of Handle | SECC Zinc-Coated Steel |
Material of Main Chassis | 1.2mm SECC Zinc-Coated Steel ( Japan Made ) |
Color of Front Bezel | Black |
Color of Main Chassis | Black |
Front Connector | USB 2.0 x 2 |
Air Filter | Removable & Washable |
Motherboard Size | 12 x 13 (EATX, ATX, microATX) |
Cooling Fan | 4x80mm |
Dimensions (WxHxD) | 19.00" x 3.50" x 27.90"
482.6 mm x 88.9 mm x 708.7 mm |
