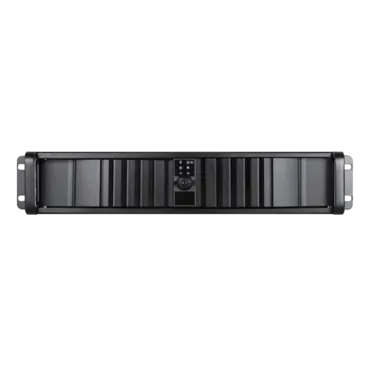

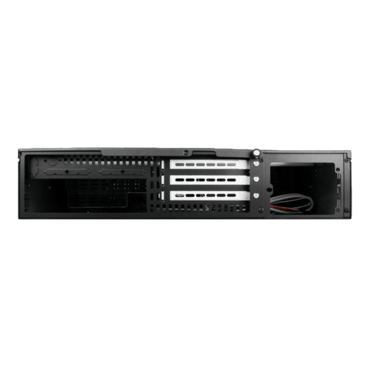

D-200SEA-BK, Black Bezel, 2x 5.25, 2x 3.5" Bays, No PSU, ATX, Black, 2U Chassis
The 2U compact industrial rackmount chassis D Storm D-200SEA-BK. The full size I/O supports all ATX motherboard. Combine hot-swappable cage for RAID configuration, and total up to 4 drive storage capacity. D-200SEA support 3 add-on cards include PCI, PCI-X, AGP, or PCI-Express architecture that provide your server or cluster maximum flexibility and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution.
D-200SEA-BK 2U Compact Stylish Rackmount Chassis with SEA Bezel
- Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
- Front Access USB2.0 x2
- 80mm x1 cooling fan
- Power and HDD LED
- Power and Alarm Reset Switch
- Optional Aluminum Chassis
Model Number | D-200SEA |
RoHS Compliance | Yes |
Form factor | 2 U |
Standard Drive Bays | 3.5" Drives: 2
5.25" Drives: 2 |
Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) |
Switches | Power, Reset |
Supported PSU Type | 2U |
Expansion Slots | 3 |
Security | Front Bezel Key Lock |
Material of Front Bezel | Aluminum alloy |
Material of Handle | SECC Zinc-Coated Steel |
Material of Main Chassis | 1.2mm SECC Zinc-Coated Steel (Japan Made) |
Color of Front Bezel | Black |
Color of Main Chassis | Black |
Front Connector | 2x USB 2.0 |
Motherboard Size | 12 x 9.6 (ATX, microATX, mini-ITX) |
Cooling Fan | 1x80mm |
Optional Fan: | 60mm x3 (bracket DD-FANGUARD-6 required) |
Ordering Information
(Part Number) |
Blue Bezel:D-200SEA
Black Bezel:D-200SEA-BK Red Bezel:D-200SEA-RD Silver Bezel:D-200SEA-SL |
Dimensions (WxHxD) | 19.00" x 3.50" x 20.80"
482.6 mm x 88.9 mm x 528.3 mm |
Notes | - low profile backplate option, P/N: DD-200-LP-PCI.
- cross bar option for redundant power supplies, P/N: DD-200-R2U-BAR. |
